Assembly
12
10

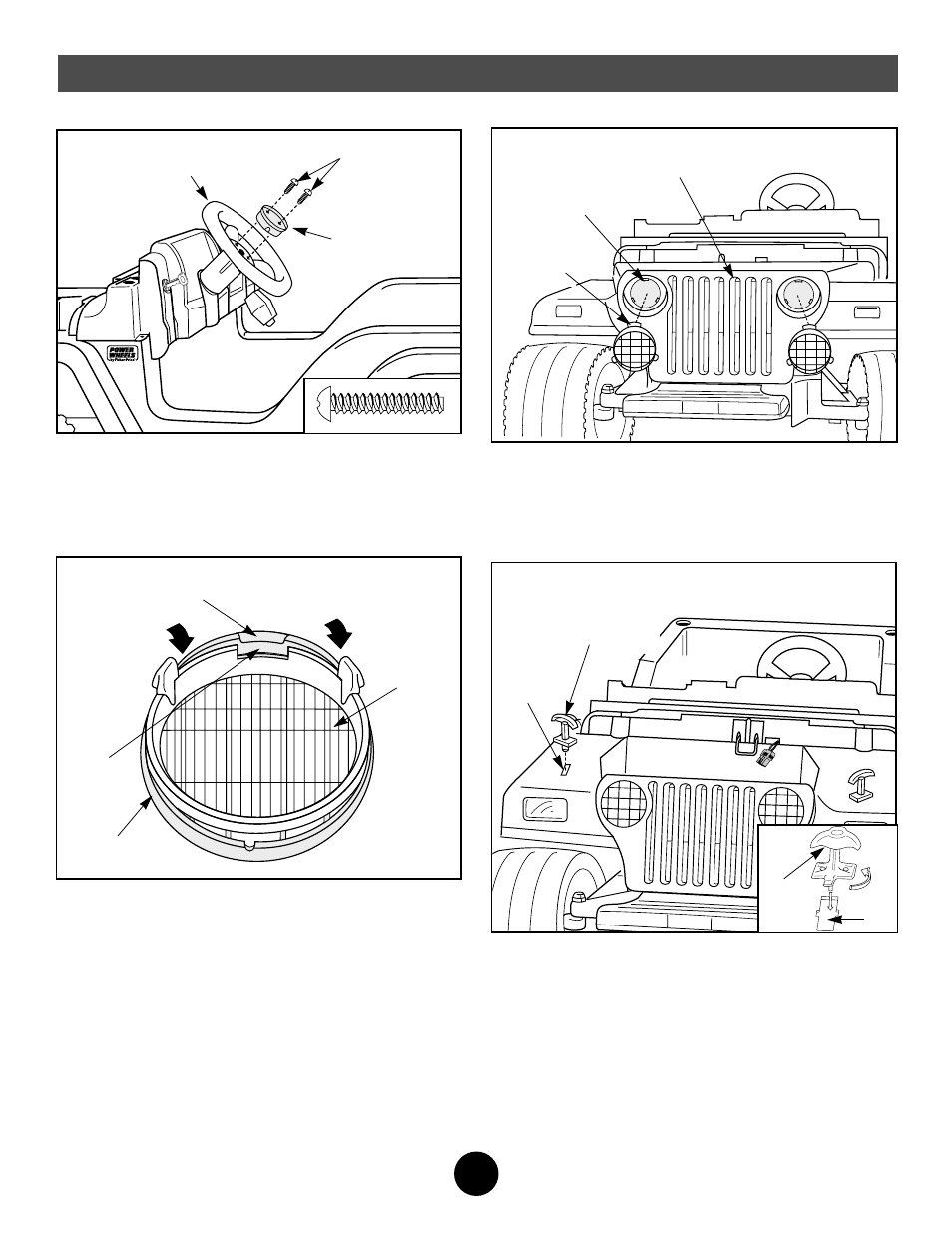

Steering Wheel
• Fit the steering wheel cap into the center of the steering
wheel with the screw holes aligned.
• Insert two #8 x 1" screws as shown.
• Tighten the screws with a Phillips screwdriver.
Do not over-tighten.
Steering
Wheel
Cap
#8 x 1" Screws
• Fit the lens tabs on the back of a lens assembly into the
headlight slots in the grille.
• Press firmly to snap the lens assembly into the grille.
• Repeat this procedure to snap the other lens assembly
into the grille.
Grille
Tabs
Slots
12
• Fit the wide notch in the side of a headlight lens under
the wide tab on a lens guard.
• Press firmly on the inside of the headlight lens to snap it
into the lens guard.
• Repeat this procedure to assemble the other headlight
lens to the remaining lens guard.
Lens
Lens Guard
11
• Insert a hood latch into one of the holes in the vehicle
body, near the hood area.
• Twist the base of the hood latch 1 /
4
turn to secure it in
the vehicle body.
• Repeat this procedure on the other side of the hood
area to attach the other hood latch to the vehicle body.
Hood Latch
Hole
13
Hood
Latch
Hole
Wide
Notch
Wide Tab
