Page 14

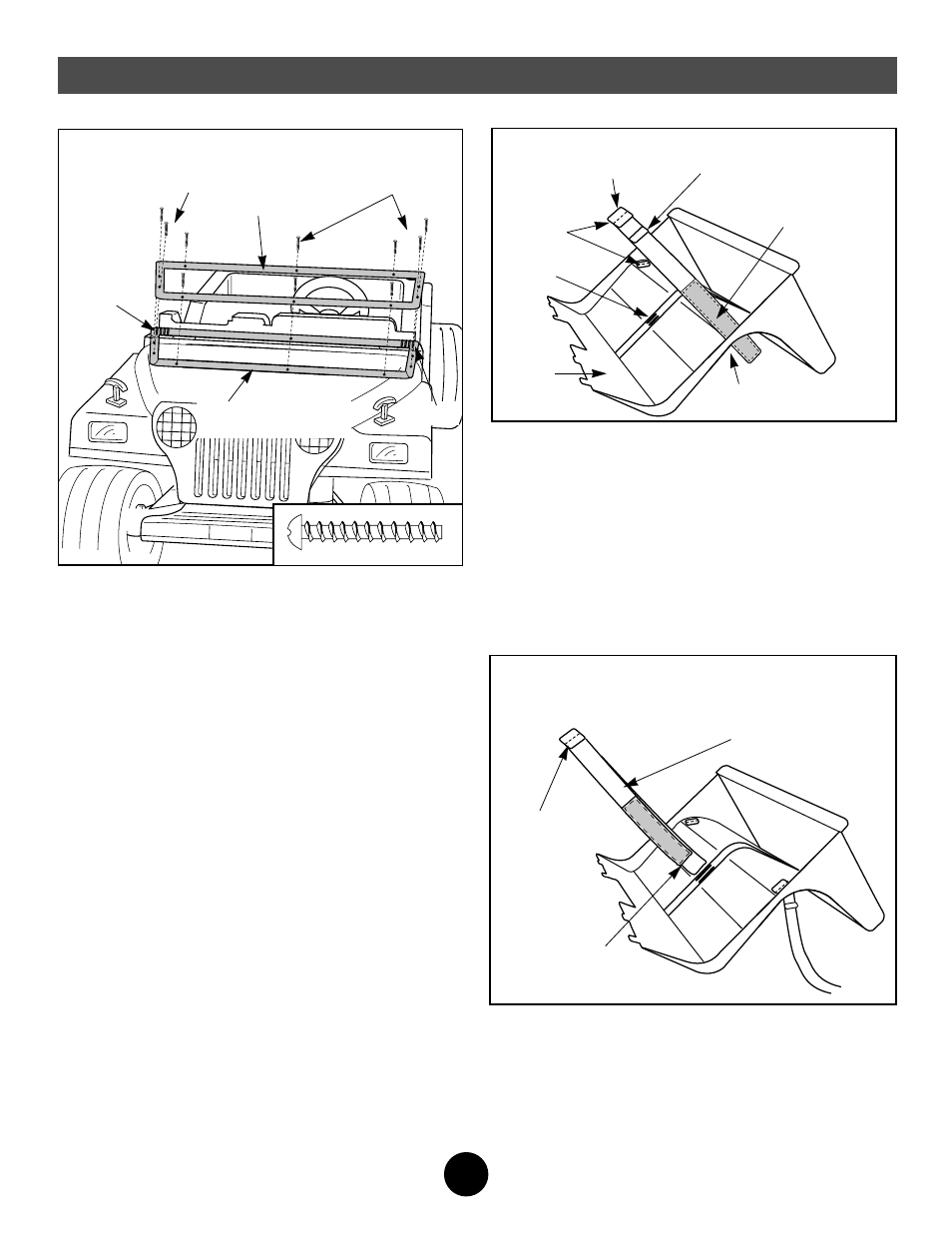

Assembly

Slots

Windshield Frame -

Front Half

• Fit the back half of the windshield frame onto the front

half of the windshield frame. Make sure the slots at the
bottom of the two windshield frame halves are aligned.

• Insert ten #8 x 1

" screws into the back half of the

windshield frame.

• Tighten the screws with a Phillips screwdriver. Do not

over-tighten.

Helpful Hint! Squeeze the two windshield halves together
while tightening the screws.

• Lift the assembled windshield to the raised position.

#8 x 1

Screws

#8 x 1

Screws

Windshield
Frame -
Back Half

• Insert each fastener end of the long seat belt strap

through a slot in the center of the seat. Make sure the
fasteners face the outer edge of the seat.

• Pull each side of the long seat belt strap evenly through

the slots. Make sure to pull each T-loop through a slot.

• Turn the seat upright.

T-Loop

Fastener End

Long Seat Belt Strap

• Turn the seat upside down.

• Insert the fastener end of a short seat belt strap through

the slot near the outer edge of the seat. Make sure the
side of the seat belt with the fastener faces the outer
edge of the seat.

• Pull the short seat belt strap completely through the

slot until the last T-loop at the opposite end of the belt
catches against the slot. You will pull one T-loop through
the slot.

• Repeat this procedure to assemble the other short seat

belt strap.

Short Seat
Belt Strap

Fastener End

Seat

Slot

End
T-Loops

Slot

T-Loop (Pull through slot)
