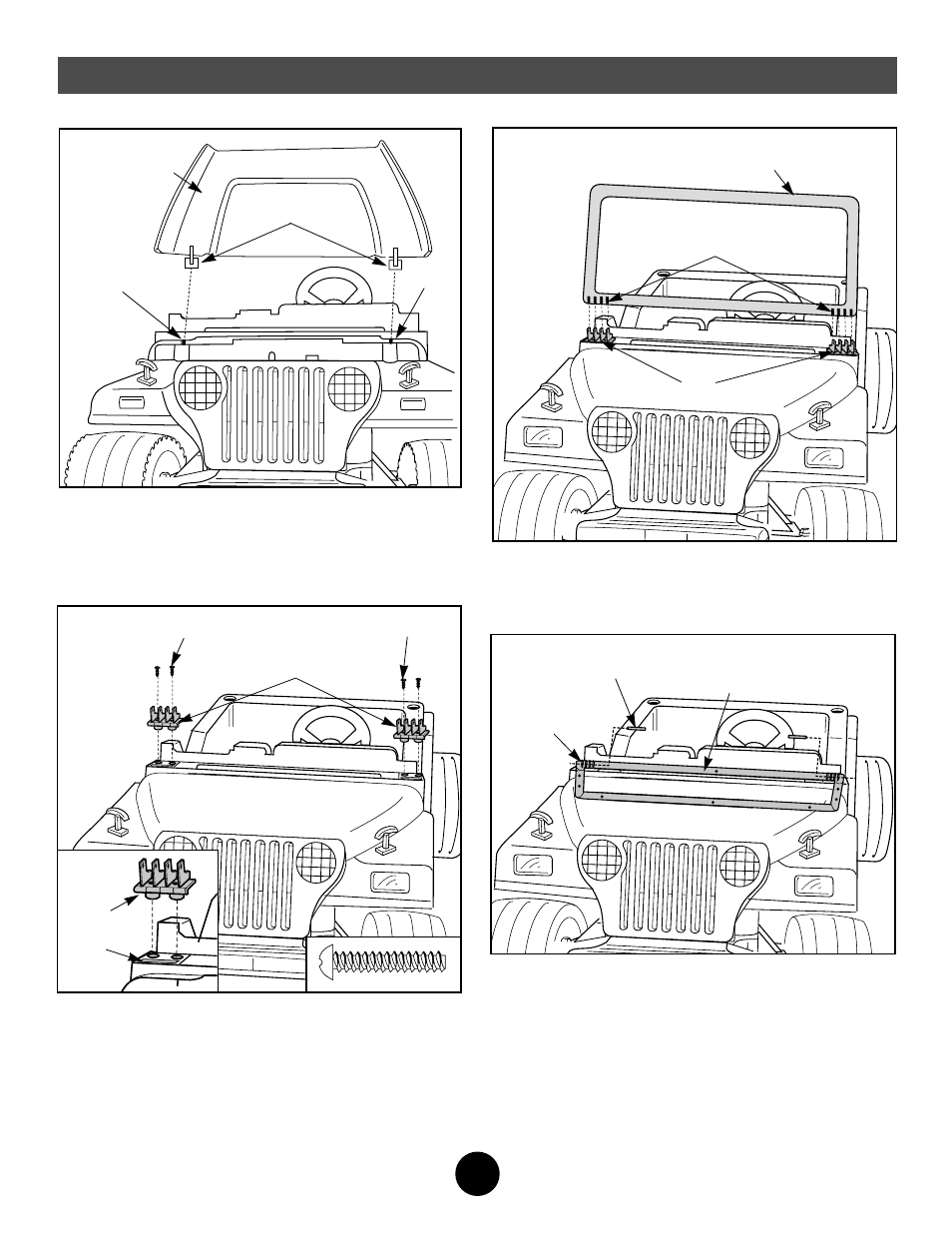

• Fit the screw pegs on the windshield brackets into the

holes in the top surface of the dash. Press firmly to fit
the lip on each windshield bracket into the slot in the top
of the dash.

• Insert two #8 x 1" screws into each windshield bracket.

• Tighten the screws with a Phillips screwdriver. Do not

over-tighten.

Windshield
Brackets

#8 x 1" Screws

Lip of
Bracket

Slot

• Align the slots in the front half of the windshield frame

with the tabs on the windshield brackets.

• Fit the front half of the windshield frame onto the

windshield brackets as shown.

Windshield Frame -
Front Half

Slots

Tabs

Hinge Pin

Windshield
Bracket

Windshield
Frame -
Front Half

• Rotate the front half of the windshield frame down so it

lays flat on the vehicle body.

• Working from the center of the vehicle, insert a hinge pin

through the holes in the windshield frame and the holes
in a windshield bracket, as shown.

• Repeat this procedure to secure the front half of the

windshield frame to the other windshield bracket.

Assembly

Hood

Tabs

• Position the hood over the front of the vehicle body

as shown.

• Insert the tabs on the hood into the slots in the

vehicle body.

• Close the hood.

Slot
