DVR Settings
Model 4800 User's Manual
C AMERA C HANNEL
Select the camera (channel) number and click the arrow buttons to select channel 1, 2, 3, 4,
or All.
PTZ P ROTOCOL *
Select the PTZ device protocol, and make sure it is consistent with the protocol of the
installed PTZ cameras (options include: Pelco-D, Pelco-P, Panasonic, Philips, Samsung,
Tiandy, et.al.). The changes take effect when you save and exit the menu.
Note: Before changing PTZ protocols, select the correct channel (camera) number
in the Camera Channel field.
PTZ B AUD R ATE *
Select the PTZ device baud rate and make sure it is consistent with the baud rate of the
installed PTZ cameras (options: 1200, 2400, 4800, or 9600 bps). The changes take effect
when you save and exit the menu.
PTZ ID*
Select the PTZ device ID, and make sure it is consistent with the ID of the installed PTZ
cameras. Choose a number from 0 to 255. Press the arrow buttons to select a value. The
changes take effect when you save and exit the menu.

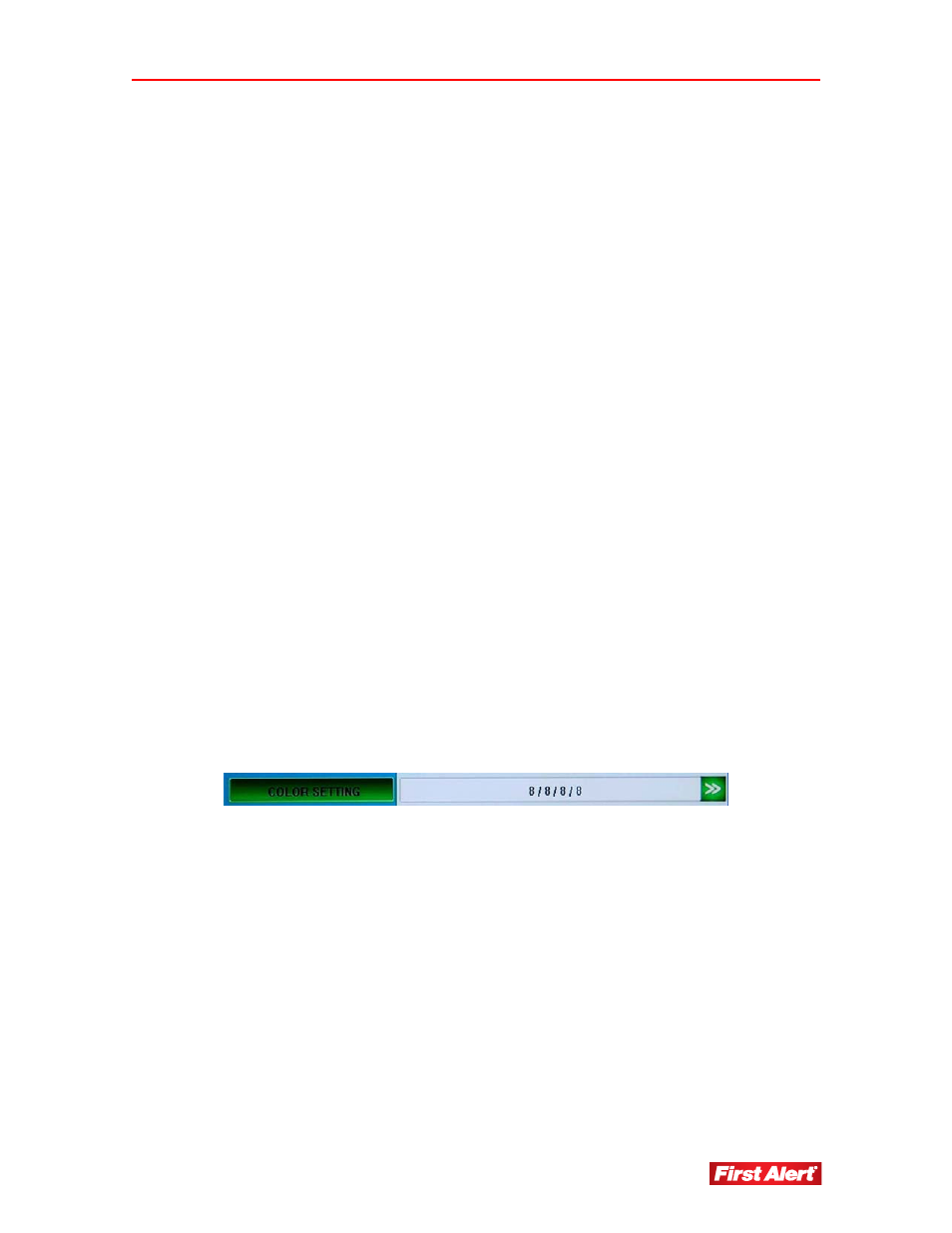

C OLOR S ETTING
Adjust camera color attributes (brightness, contrast, hue, and saturation) for the best image
rendition. By default, the values are set at 8 (average value). Make adjustments depending
on the conditions at the location where the camera is installed.
Press the >> button to display a full-screen image of the camera feed, with the four color
characteristics listed.
* Cameras supplied with 4800 system are not equipped with PTZ feature.
