Fortinet FortiGate ASM-CX4 - Manual

© Copyright 2009 Fortinet Incorporated. All rights reserved.
Products mentioned in this document are trademarks or registered trade-
marks of their respective holders.
Regulatory Compliance
FCC Class A Part 15 CSA/CUS
20 January 2009

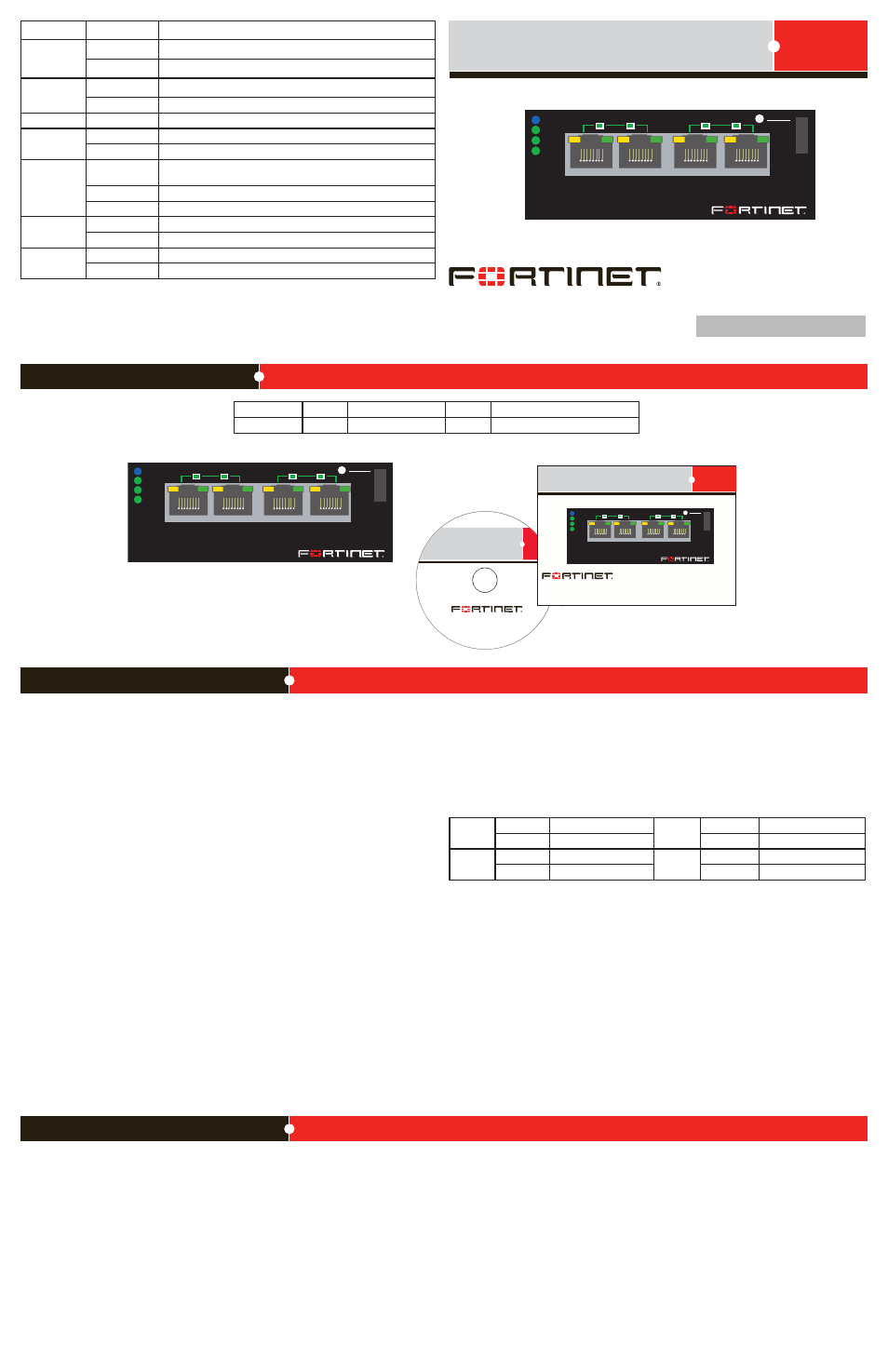

QuickStart Guide
Package Contents
Installing the AMC Module
Connecting the Module
When properly inserted into the FortiGate unit, the interfaces of the ASM-CX4 appear in the
interface list by going to System > Network > Interface.
You can add policies, zones and so on as you would with other FortiGate interfaces.
Enable the bridging feature of the module using the Command Line Interface.
CLI Commands
To enable or disable bypass mode, press the Bypass FortiGate button, or use the following
CLI commands. For more information on these commands go to htp://kc.fortinet.com.
exec amc bypass-mode
ASM-CX4
1 2 3 4
FG ACT
BYPASS
FORTIGATE
HS
OOS
IPM
BYPASS
Tools and Documenation
FortiGate-30B
Copyright 2008 Fortinet Incorporated. All rights reserved.
Trademarks
QuickStart Guide
ASM-CX4
1 2 3 4
FG ACT
BYPASS
FORTIGATE
HS
OOS
IPM
BYPASS
ASM-CX4
1 2 3 4
FG ACT BYPASS FORTIGATE
HS
OOS
IPM BYPASS
It is important to carefully seat the FortiGate ASM-CX4 module all the way into the chassis.
Only then will the FortiGate ASM-CX4 module power-on.
To complete this procedure, you need:
• A FortiGate ASM-CX4 module.
• A FortiGate chassis with an empty AMC single-width (SW) opening.
• To avoid any electrostatic discharge, install in a static free area.
FortiGate ASM-CX4 modules are not hot swappable. The procedure for inserting the
FortiGate ASM-CX4 module into a FortiGate chassis slot requires the FortiGate unit to be
powered off.
To avoid any electrostatic discharge (ESD) when handling FortiGate ASM-CX4 modules,
install in a static free area.
To insert a FortiGate ASM-CX4 module into a FortiGate chassis
Ensure the FortiGate unit is powered off before proceeding. 1.
Remove the panel block on the FortiGate unit using the hot swap latch. 2.
Pull the latch on the ASM-CX4 module to the extended position. 3.
Insert the ASM-CX4 module into the empty slot in the chassis. Ensure the Fortinet logo 4.
is right-side up. It should be on the lower-right corner of the module.
Carefully guide the module into the chassis.
5.
Insert the module by applying moderate force to the front faceplate near the upper edge 6.
to slide the module into the slot.
01-30006-0474-20090120
Connector Type Speed Protocol Description
Ports 1 to 4 RJ-45 10/100/1000 Base-T Ethernet Copper network connections.
The module should glide smoothly into the chassis. If you encounter any resistance while
sliding the module in, the module could be aligned incorrectly. Pull the module back out
and try inserting it again.
Press the hot swap latch to lock in the module.
7.
Power on the FortiGate unit. 8. The hot swap (HS) LED turns on and then begins flashing.
ASM-CX4 module ports
SWx/1 IP: ____.____.____.____ SWx/3 IP: ____.____.____.____
Netmask: ____.____.____.____ Netmask: ____.____.____.____
SWx/2 IP: ____.____.____.____ SWx/4 IP: ____.____.____.____
Netmask: ____.____.____.____ Netmask: ____.____.____.____
Removing the AMC module
Should you need to remove the ASM-CX4, shut down the FortiGate unit using proper shut
down procedures.
To remove the ASM-CX4 module
Ensure the FortiGate unit is powered off before proceeding. 1.
To avoid any electrostatic discharge (ESD) when handling ASM-CX4 module, install in a 2.
static free area.
Pull the hot swap latch on the right-hand side of the module to the extended position to
3.
unlock the module from the FortiGate unit.
Gently pull the hot swap latch to remove the module.
4.
FortiGate ASM-CX4
LED State Description
FGT ACT
Green The module is properly inserted in the FortiGate unit.
Off The module is not receiving power from the FortiGate unit.
HS
Blue Ejection latch open. The module is ready for removal.
Flashing Ejection latch opened during system operation.
OOS LED currently not in use.
IPM
Green The module is properly inserted in the FortiGate unit.
Off The module is not receiving power from the FortiGate unit.
Port 1 to 4
(Right LED)
Off Connection at 10 Mb/s.
Amber Connection at 100 Mb/s.
Green Connection at 1000 Mb/s
Port 1 to 4
(Left LED)
Green Ethernet cable connected to the port and the FortiGate unit is on.
Flashing Green Network activity at this interface.
BYPASS
Green Bypass network activity at this interface.
Off Normal status or not receiving power from the FortiGate unit.
Visit these links for more information and documentation for your Fortinet product.
Technical Documentation - • http://docs.forticare.com
Fortinet Knowledge Center - • http://kc.forticare.com
Fortinet Technical Support - • http://support.fortinet.com
