Fortinet FortiAnalyzer FortiDB-400B - Manual

© Copyright 2009 Fortinet Incorporated. All rights reserved.
Products mentioned in this document are trademarks or registered trademarks
of their respective holders.
Regulatory Compliance
FCC Class A Part 15 CSA/CUS
7 January 2009
Visit these links for more information and documentation for your Fortinet product.
Technical Documentation - • http://docs.forticare.com
Fortinet Knowledge Center - • http://kc.forticare.com
Fortinet Technical Support - • http://support.fortinet.com

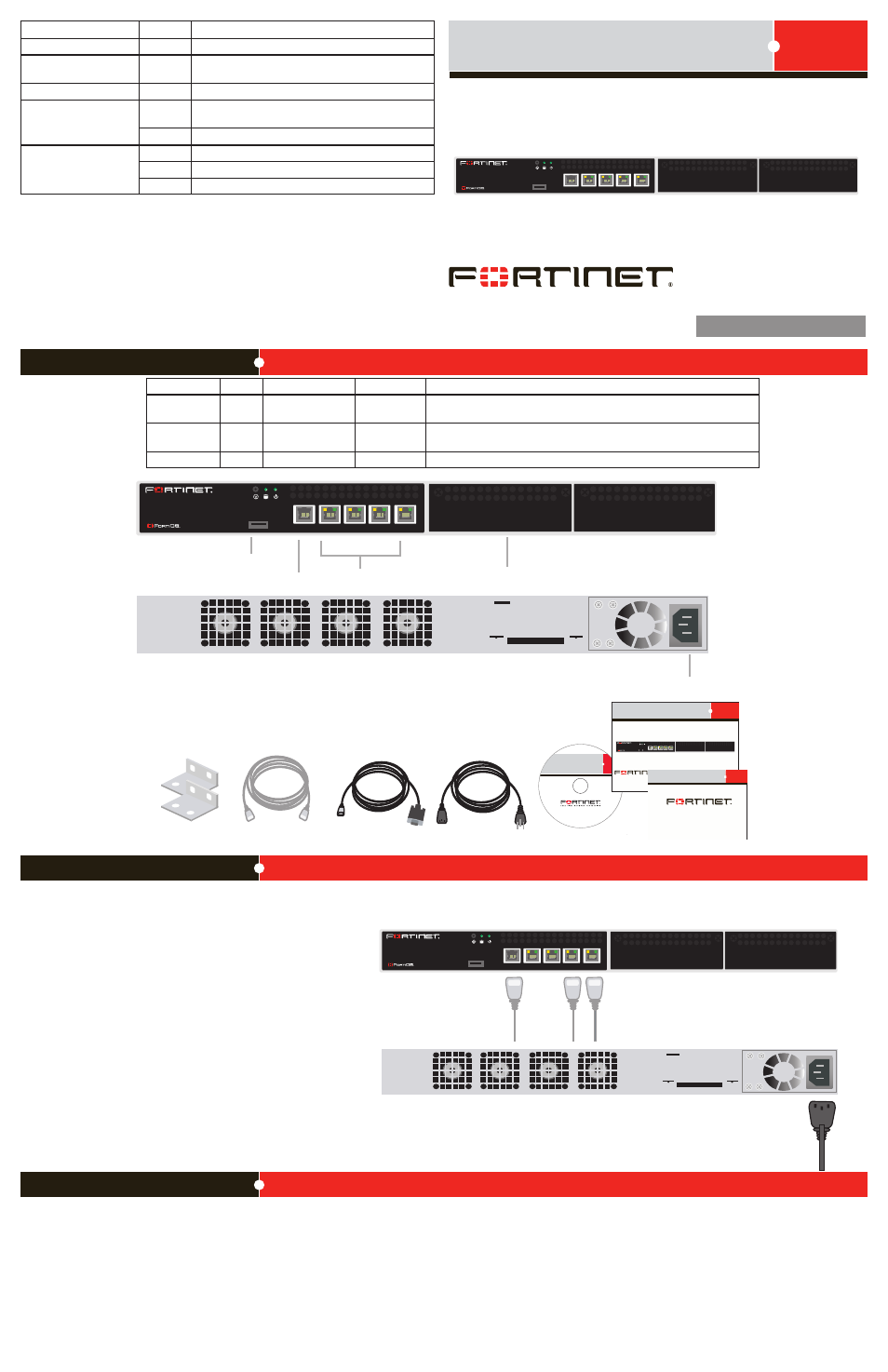

Connecting
1 2 3 4
USB
CONSOLE 400B
AC power
connection
Ethernet ports Removable hard disk
USB
RJ-45 serial
connection
1 2 3 4
USB
CONSOLE 400B
Power cable
connects to
power supply
RJ-45 to DB-9 serial cable
connects to management
computer
Ethernet cables connect
to computers on the
internal network
1 2 3 4
USB
CONSOLE 400B
Straight-through
Ethernet cable Power Cable
RJ-45 to
DB-9 Serial Cable
FortiGate-30B
Tools and Documenation
Copyright 2009 Fortinet Incorporated. All rights reserved.
Trademarks
QuickStart Guide
Welcome | Bienvenue | Willkommen | | Bien venido | Benvenuto
Rack-Mount
Brackets
Package Contents
Connect the following to the FortiDB unit. Ensure the FortiDB unit is placed on a stable surface or install in a standard 19 inch rack.
Insert one end of an Ethernet cable into port 1. •
Connect the other end of the Ethernet cable to the network hub or switch. •
Connect the AC Power cable to the Power Supply on the back of the •
FortiDB unit.
Connect the other end of the Power cable to a surge protected •
power bar or power supply.
FortiDB-400B
15-32000-86800-20090107
QuickStart Guide
Web-based manager
The FortiDB web-based manager is an easy-to-use management tool.
Use it to configure the administrator password, the interface and default gateway addresses,
and configure reports.
Requirements:
An Ethernet connection between the FortiDB unit and management computer. •
A web browser such as FireFox or Internet Explorer on the management computer. •
Command Line Interface (CLI)
The CLI is a full-featured management tool. Use it to configure the administrator password,
the interface addresses, the default gateway address, and the DNS server addresses. To
configure advanced settings, see the Tools and Documentation CD included with the
FortiDB unit.
Requirements:
The RJ-45 to DB9 serial connection between the FortiDB unit and management •
computer.
A terminal-emulation application such as HyperTerminal for Windows, on the •
management computer.
Configuration Tools
Connector Type Speed Protocol Description
Ports 1 to 4 RJ-45 10/100/1000
Base-T
Ethernet Copper gigabit connection to 10/100/1000 copper networks.
CONSOLE RJ-45 9600 8/N/1 RS-232 serial Optional connection to the management computer. Provides access to
the command line interface (CLI).
USB USB USB For future use.
LED State Description
Power Green The device is connected to a power source and on.
Hard Disk
Flashing
Geen
Activity on the hard disk.
Alarm Red Hard disk failure.
Ports 1 to 4 Right LED
Green The correct cable is connected to the interface and
the connected equipment has power.
Flashing Network activity at this interface.
Ports 1 to4 Left LED
Green The interface is connected at 1000 Mbps.
Amber The interface is connected at 100 Mbps.
Off The interface is connected at 10 Mbps.
