4.2 Setting GPS Antenna Position and
Ship’s Type
1. In the INIT SETTING sub-menu, press the [6] key to open the SET ANTENNA
POS window.

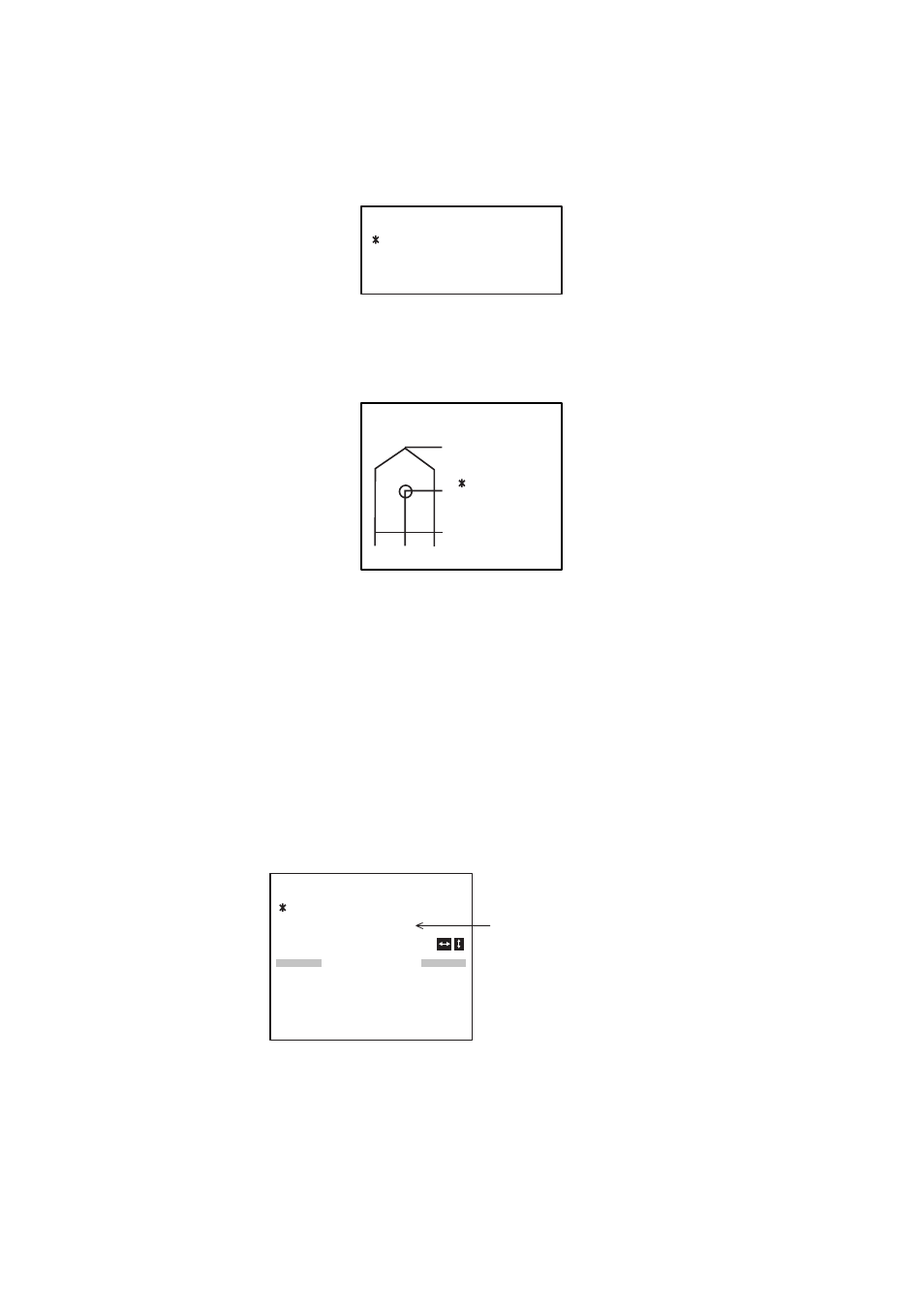

SET ANTENNA POS
1 INTERNAL ANT POS
2 EXTERNAL ANT POS
SET ANTENNA POS window
2. With 1 selected, press the [ENT] key. The 1 is for entering internal GPS antenna
position and 2 is for external GPS which is connected to the AIS.
[INTERNAL ANT POS]
A: 000 m
B: 000 m
C: 00 m
D: 00 m
A
B
C D
INTERNAL ANT POS window
3. Enter locations of GPS antenna, by using the numeric keys and the [NEXT] key,
and finally press the [ENT] key.
A: Distance from bow to GPS antenna position
B: Distance from stern to GPS antenna position
C: Distance from port to GPS antenna position
D: Distance from starboard to GPS antenna position
4. Enter external GPS antenna position similar to how you entered internal GPS
antenna position.
5. Press the [MENU] key to return to the INIT SETTINGS sub-menu.
6. Press the [4] key to display the SET TYPE&CREW window.
TYPE NAME
[SET TYPE&CREW]
CREW : 0012
TYPE CLASS : A
TYPE NO. : 0
TYPE CLASS cannot
be changed.
(A = IMO type)
SET TYPE&CREW window
