21
3.9 Changing Ship’s Mains Specifications
The power supply PR-240-CE is shipped ready for connection to a 200-230 VAC
ship’s mains. If the ship’s mains is 100 VAC – 115 VAC, change the tap connection
and terminal board connection as below. Attach label supplied as accessories to
the punch mark in the front panel according to the ship’s mains.
Ship’s mains Tap connection Terminal board
connection #1 & #2
100-115 VAC SEL 115 V b
200-230 VAC SEL 230 V a
1
2
3
4
5
6
7
8

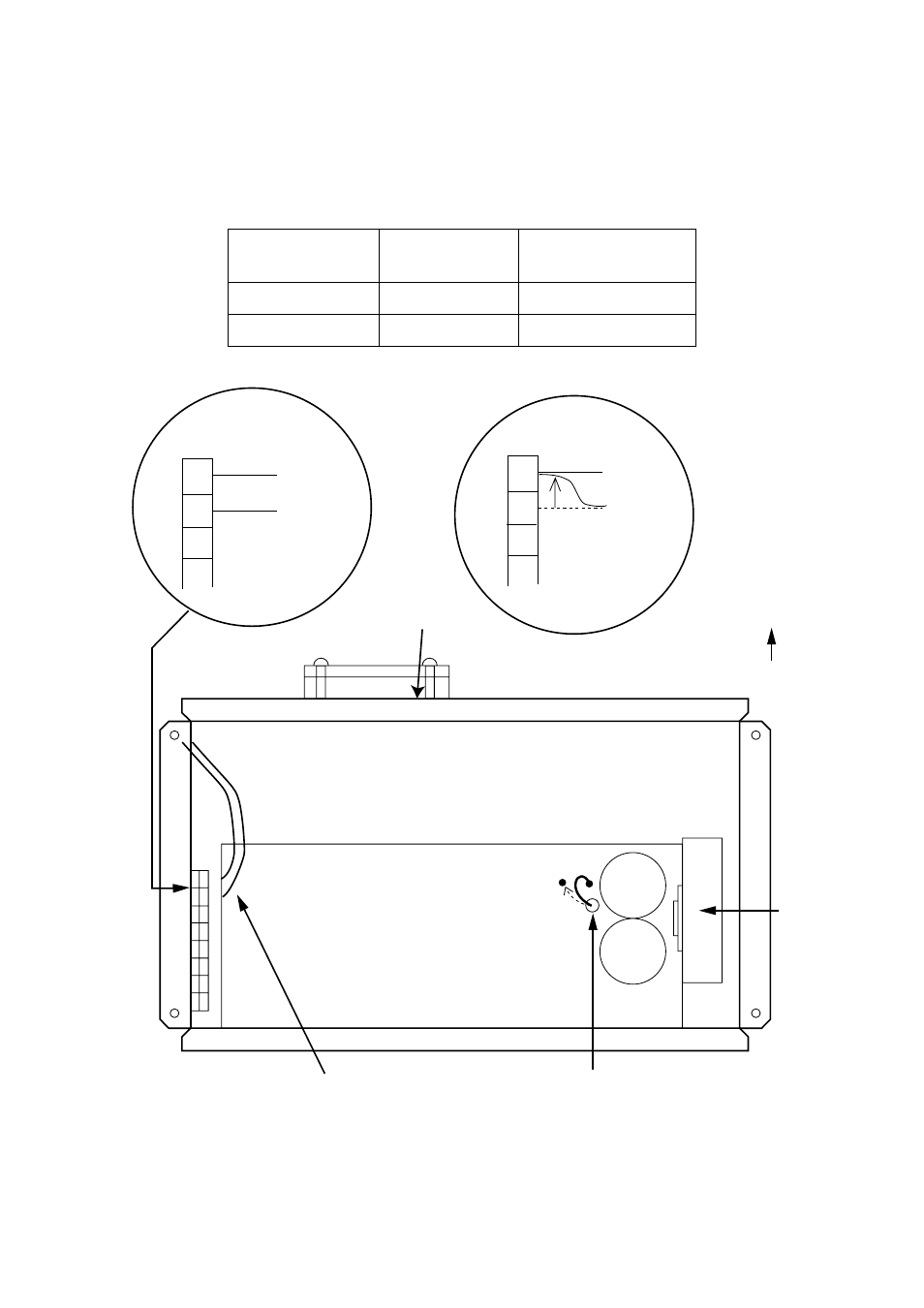

Heat sink
Tap connection (Pull out to remove)
Front
SEL
115 V
SEL
230 V
Top view (Cover removed)
1
2
3
100-115 VAC
1
2
3
200-230 VAC
Terminal board connection
(a)
(b)
White
Black
White
Black
Punch mark
