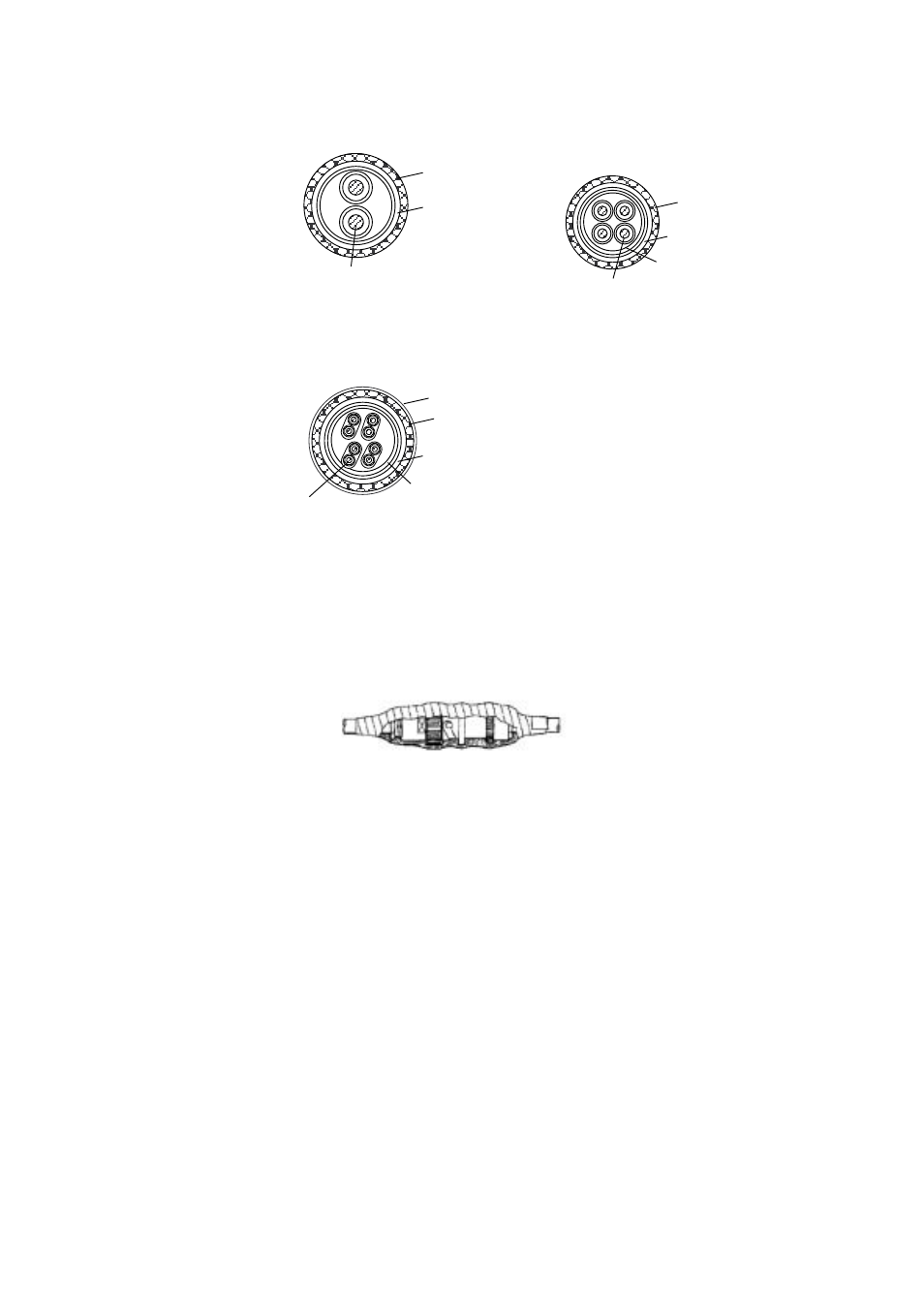

Conductor
S = 1.5 mm
φ
= 1.56 mm
2
DPYC-1.5
Armor
Sheath
φ
= 11.7 mm
***: Waterproofing connectors
**: DPYC-1.5, TTYCS-1Q and TTYCS-4 are Japan Industry Standard cable.
Use them or the equivalents.
Conductor
S = 0.75 mm
φ
= 1.11 mm
2
TTYCS-1Q (Four core twisted)
Armor
Shield
Sheath
φ
= 11.3 mm
Conductor
S = 0.75 mm
φ
= 1.11 mm
2
TTYCS-4 (Four twisted pairs)
Armor
Shield
Sheath
φ
= 18.5 mm Sheath
Wrap connector with vulcanizing tape and then vinyl tape. Bind
the tape end with a cable-tie.
Waterproofing connector
