3 junction box – Furuno FA-100 User Manual
Page 16
10
1.3 Junction
Box
Mount the junction box where the junction box is protected from rain and water
splash.
Mounting
1. Open the lid of the junction box and fix the junction box with four tapping screws
(5x20). Avoid bundling the 3.3 m cable of the junction box together with any
power cable. This causes malfunction.
2. Connect cables to the terminal board, referring to Chapter 2 and 3.
3. Fix the lid after connecting external equipment.
4. Clamp the cable with several U-type cable clamps (local supply) at suitable
intervals.

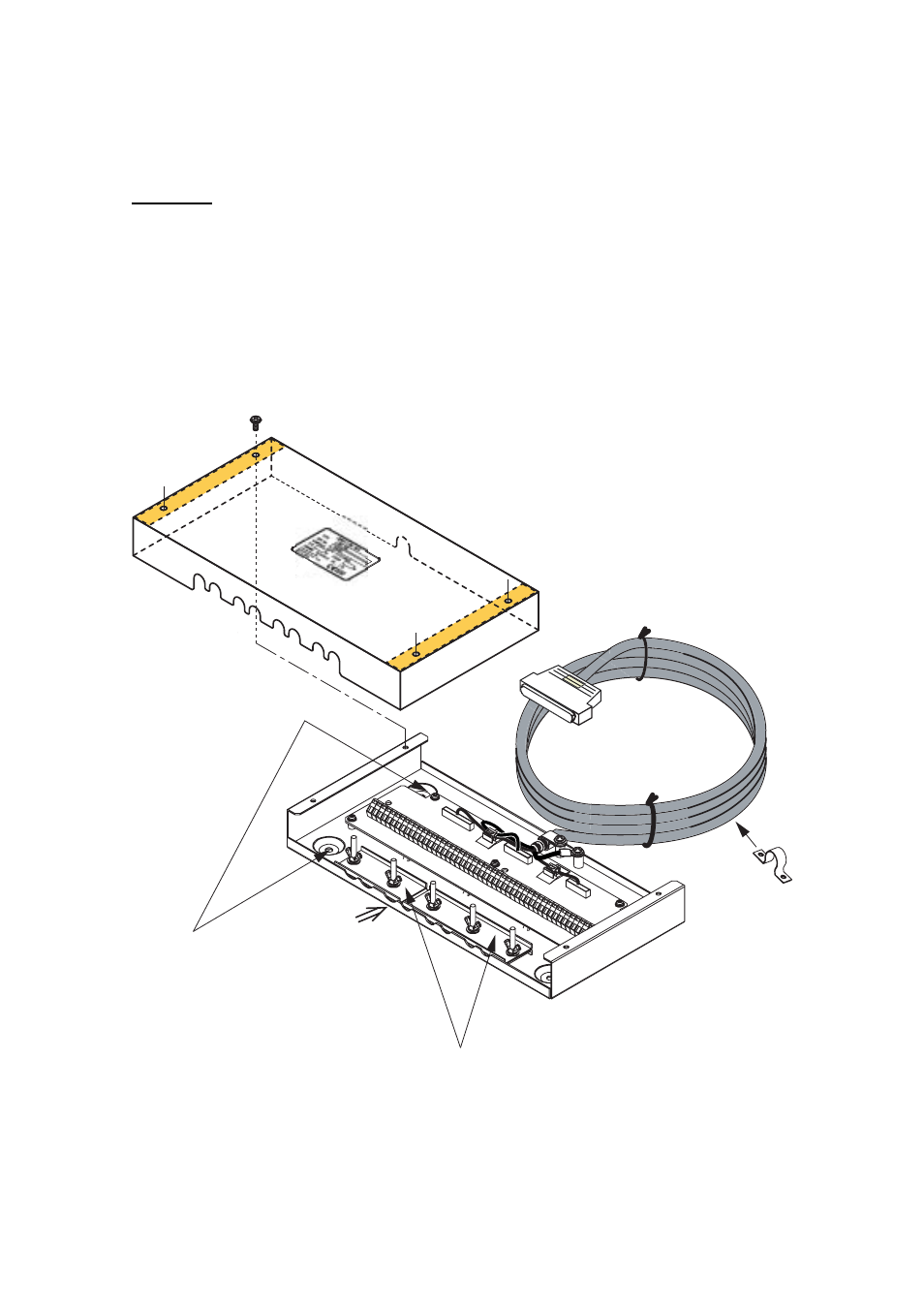

Fixing holes
(5x20 tapping screws)
Cable entry
Cable clamp
Clamp the cable with
U-type cable clamps.
