3. PLOTTER OPERATION
3-3
3.1.2 Compass display

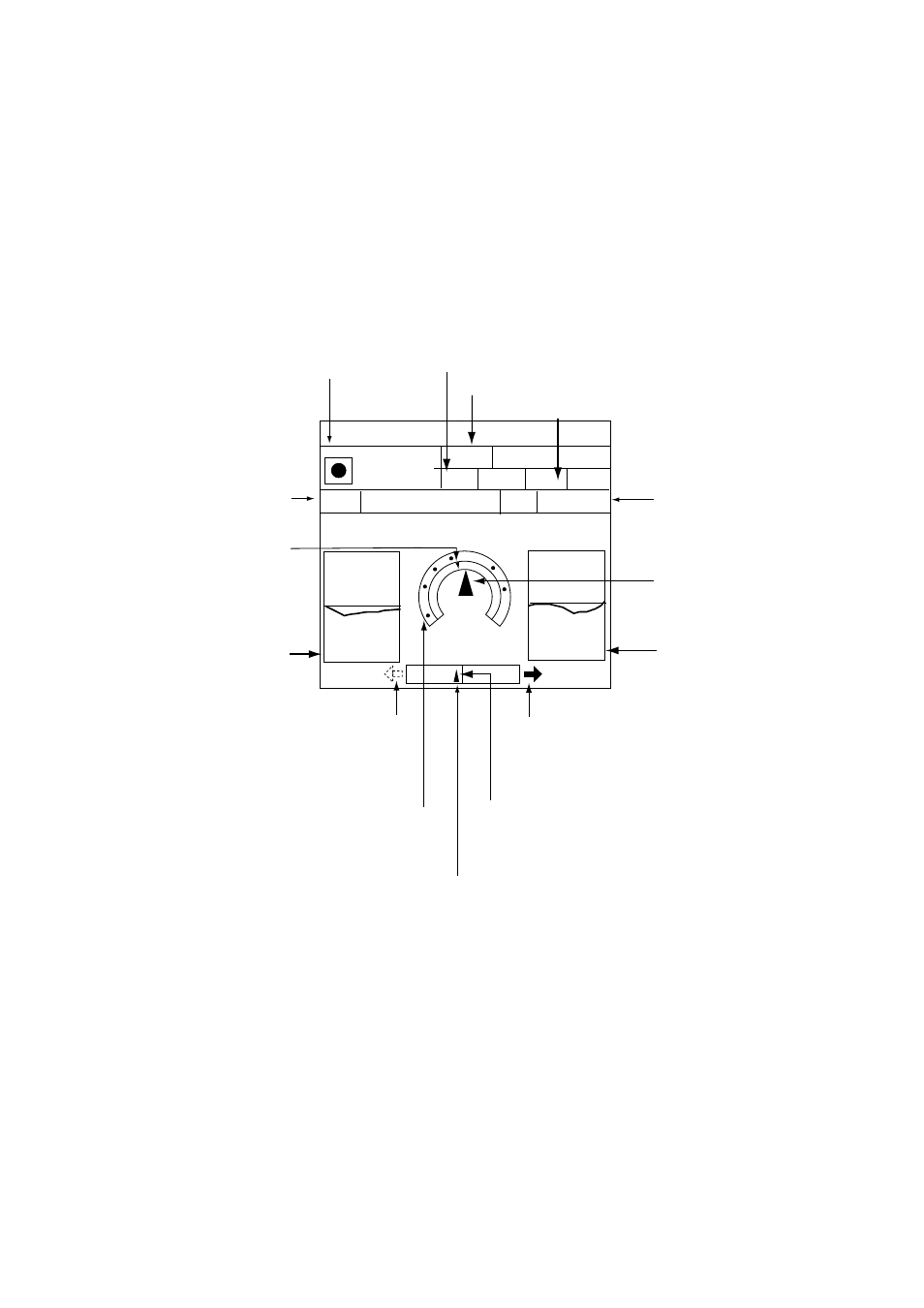

The compass display, shown in combination displays, provides steering
information. The compass rose shows two triangles: the red triangle shows own
ship’s course and the black triangle, which moves with ship’s course, shows the
bearing to destination waypoint.
The water temperature and depth graphs, which require appropriate sensors,
show the latest 10 minutes of water temperature and depth data. The range of
the depth graph is 50 feet and it is automatically adjusted with depth.
Bearing scale
XTE monitor
(See next page for
description.)
Depth
graph* Water
temperature
graph*
Time-to-go
to destination Estimated time of
arrival at destination
Ship's course
(red)
Destination
waypoint
Range to destination waypoint
Speed over ground
* = Requires appropriate
sensor.
Destination
waypoint
bearing
(black)
0
50
20
10
BRG DPT TMP
3 5 9 . 9
°
M 4 5 . 2 f t 1 6 . 2
°
F
3 5 9 . 9
°
M
003WPT
0D 9H 59M TTG 23th23:59 ETA
SOG 10.0 kt 10.0 kt STW
RNG 9 9 . 9 n m
N
w
E
Speed through water
CSE
Direction to steer
(green) Shown (in red
on color model)
when direction to
steer is "left."
Own ship marker
(Black when within
XTE range, yellow when over.)
Compass display
