Editing a waypoint from the plotter display

You may edit waypoints from the plotter display as follows:

1. Press the [MENU] key followed by the WAYPOINTS/ROUTES and

WAYPOINTS soft key to open the waypoint menu.

2. Press the WAYPOINT BY CURSOR soft key.
3. Operate the trackball to place the cursor on the waypoint which you want to

change. A flashing diamond mark appears on the waypoint when it is
correctly selected.

4. Press the EDIT/MOVE soft key. Three soft keys replace the EDIT/MOVE soft

key:

EDIT WPT:

Edit from the waypoint entry window.

MOVE WPT:

Move waypoint to new position with the cursor.

ERASE WPT:

Erase waypoint. See paragraph 3.8.3.

5. Press the appropriate soft key. For the “EDIT WPT,” the waypoint entry

window appears; edit data as appropriate. For “MOVE WPT,” do the
following:
a) Operate the trackball to place the cursor on the location desired for the

waypoint. A line connects previous position and new position.

b) Push the [ENTER] knob. The waypoint moves to the cursor position and its

position is changed on the waypoint list. If the waypoint is set as
destination or is part of a route, you are asked if you are sure to move the
waypoint. In this case, push the [ENTER] knob to move the waypoint, or
press the [CLEAR] key to cancel.

c) Press the [MENU] key to finish.

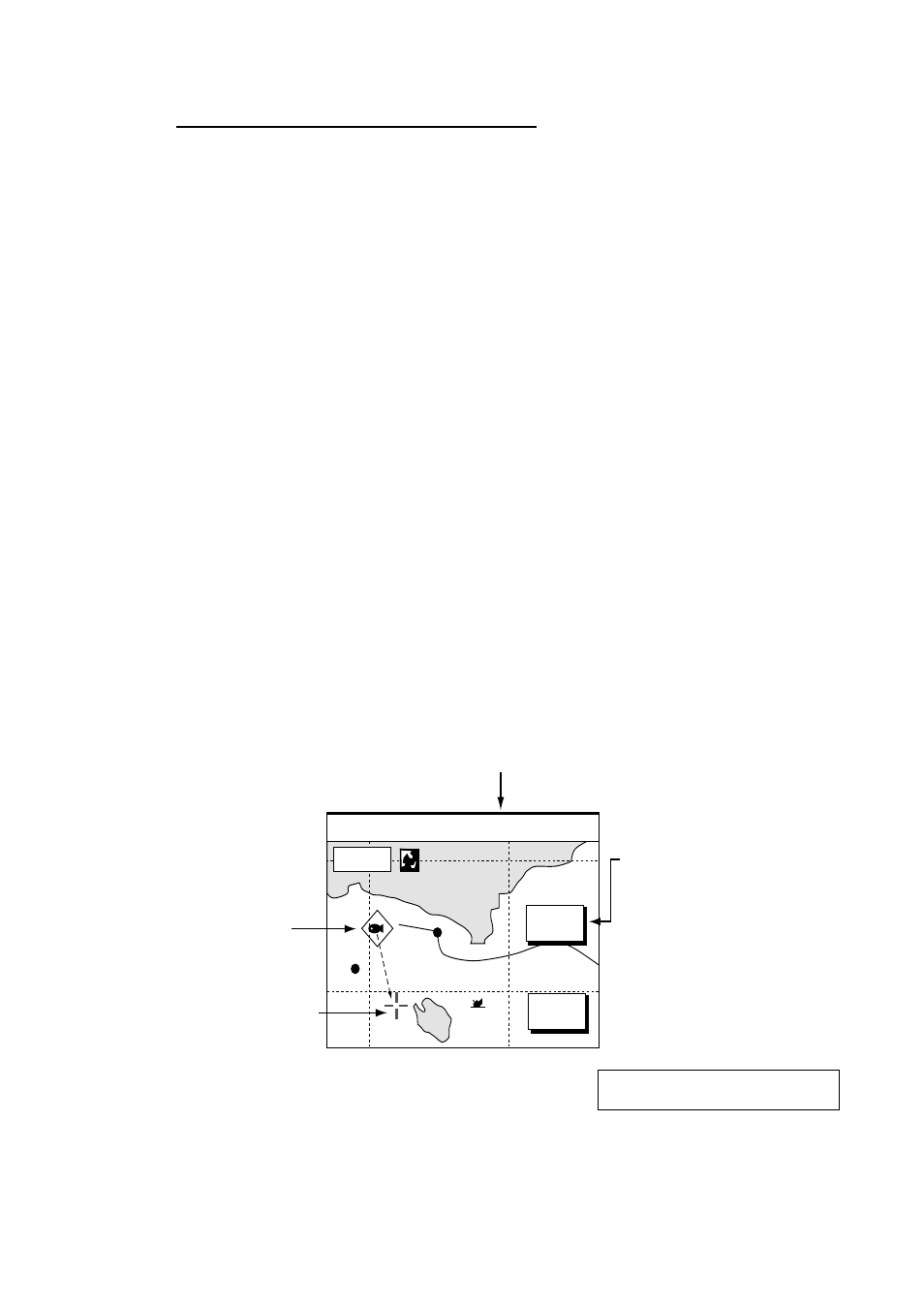

BRIDGE

WP-002

22. 345’N 86.6

TRIP

080

22. 345’E 4.53nm 99.9 nm

Press to alternately display
range/bearing from own ship
to cursor, range/bearing from
original waypoint position to
cursor position.
Below is an example of the
range/bearing from original
waypoint position to cursor
position.

FISH

RNG
BRG

CANCEL

(2) Drag cursor to new position,
then push the [ENTER] knob.

(1) Select waypoint to move,
then press EDIT/MOVE
and MOVE WPT soft keys.

16.0nm

Range and bearing from
own ship to cursor

22. 3456’N FROM 5.3

080

22. 3456’E FISH 1.45 nm

Plotter display
