3 HARDWARE CONNECTIONS

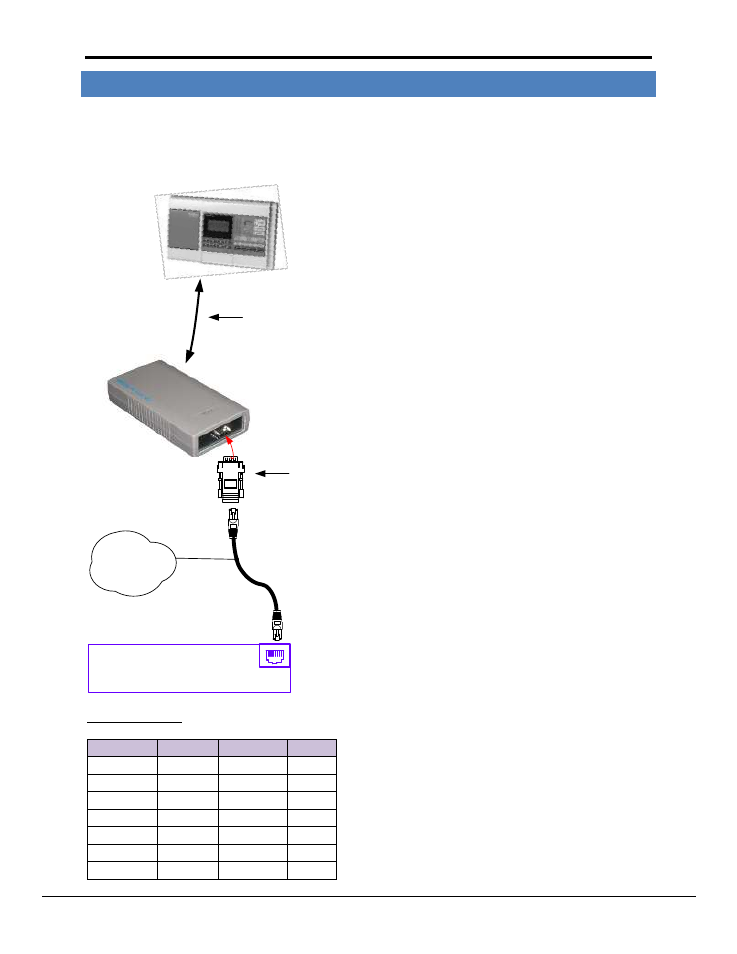

The FieldServer is connected to the Vesda as shown in connection drawing.
Configure the Vesda according to manufacturer’s instructions
VESDA HLI
FieldServer Part #
8915-10
UTP cable
FS -8 91 7-
03
FS-8917-03
RJ45 to DB9M Connector
DB15 Standard VGA Extension
Cable
FieldServer
P1
1 8
VESDA VLP
FS-8917-03 Pinouts
FS Function RJ45 Pin# DB9M Pin# Color
RX
1 2 White
CTS 2 8 Brown
DSR 3 6 Yellow
GND 4 5 Green
DTR 6 4 Black
RTS 7 7 Orange
TX 8 3 Blue
