Page 26

Installation Procedure

The following explains how to install the XG1200 in a 19-inch rack.

Take the XG1200 out of its box.

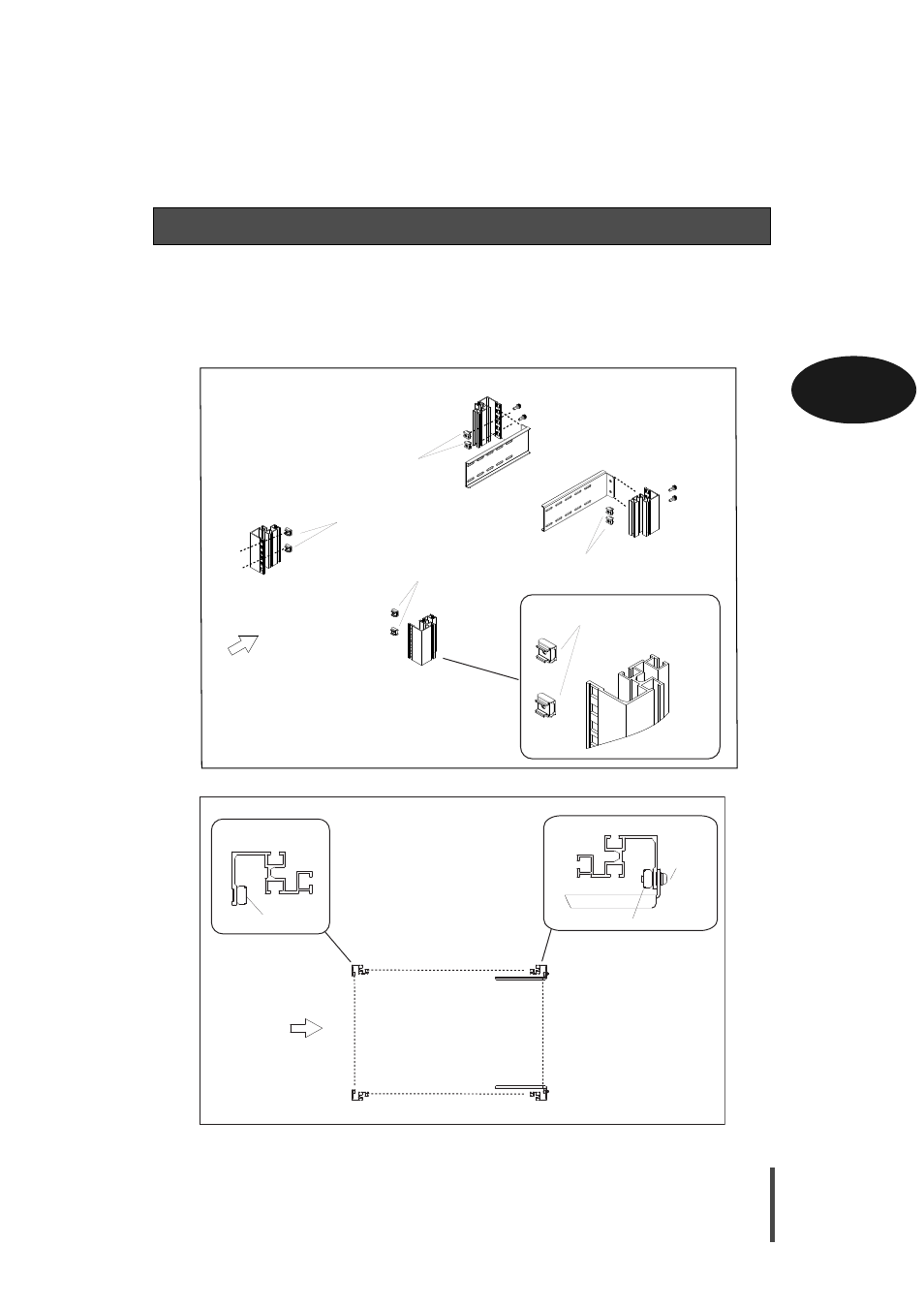

Fix the cage nuts and rails to the rack posts.

2-2-2 Installing the XG1200 in a rack

17:100

1:2

Front

Rack Post

Rail

Cage Nuts

Cage Nuts have a springy lug

at the top and bottom.

Rack Screws (Large)

Cage Nuts

[When the rack has square post holes]

Rack Screws (Large)

Front

Cage Nut

[When the rack has square post holes (top view)]

Rail

Rack Post

Rack
Screw
(Large)

Rack Post

Rail
