XG1200 Components 15
1
The following explains the names and functions of the components at the rear of the XG1200.
• Power Switch Used to turn the XG1200 on/off.
• Power Supply Unit Supplies power to the XG1200 (includes an exhaust fan).
- Power Supply LED (Green) Lights when the XG1200 is on.
- Power Fail LED (Orange) Lights when there is a problem with the Power
Supply Unit.
• Rear Fan Unit Exhaust fan.
• Rear Fan LED (Orange) Lights when there is a problem with the Rear Fan Unit.
CAUTION
In order to avoid having negative effect on the cooling of the XG1200, do not loosen
the Rear Fan Unit screws on purpose.

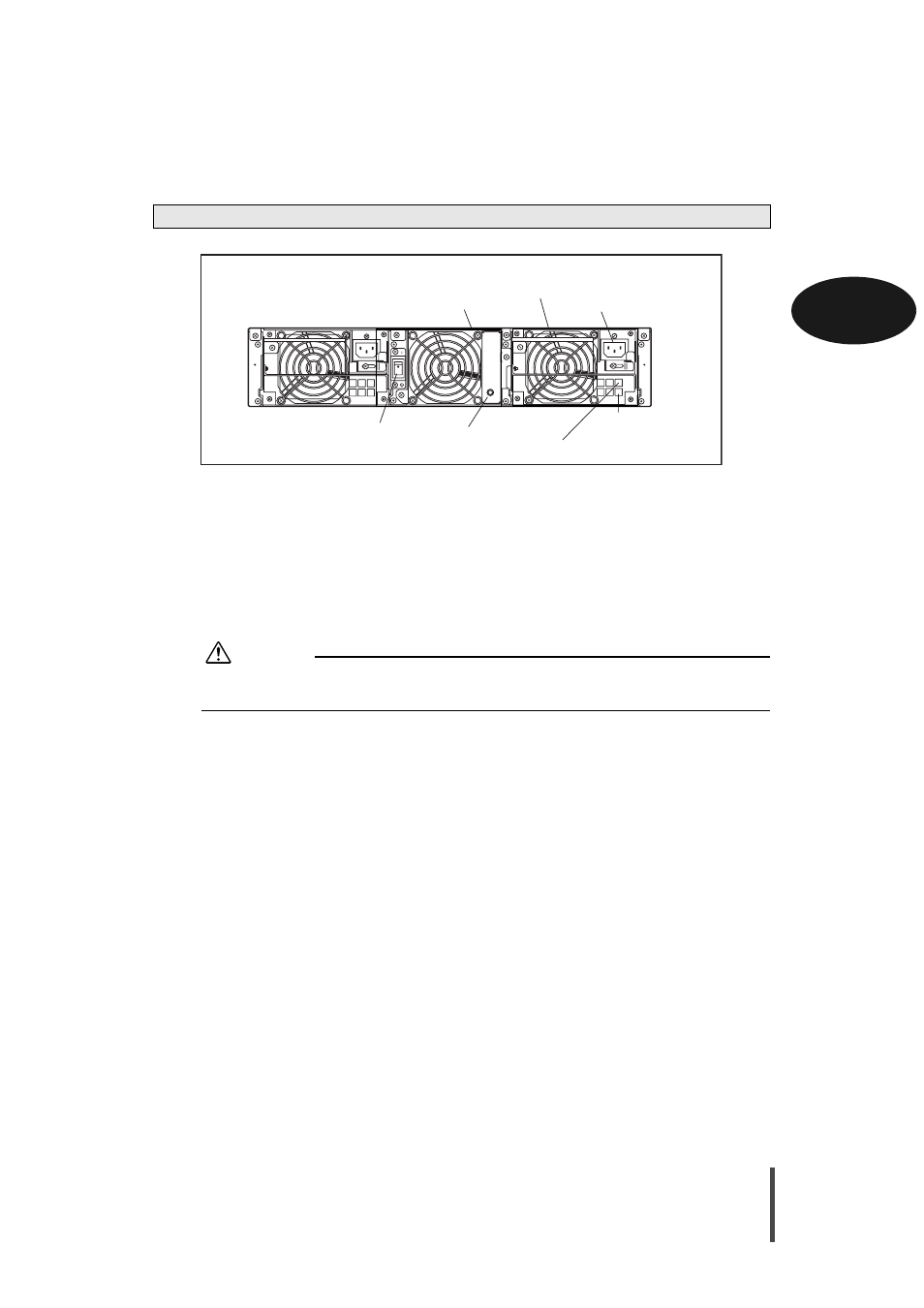

XG1200 rear
Power Inlet
FAN
Rear Fan LED
Power Supply LED
Power Supply Unit
Power Fail LED Power Switch
Rear Fan Unit
