X3419pr-0920

8

WARNING

Children can be harmed by small parts,
sharp edges and sharp points in the
vehicle's unassembled state, or by
electrical items. Care should be taken in
unpacking and assembly of the vehicle.
Children should not handle parts,
including the battery, or help in assembly
of the vehicle.

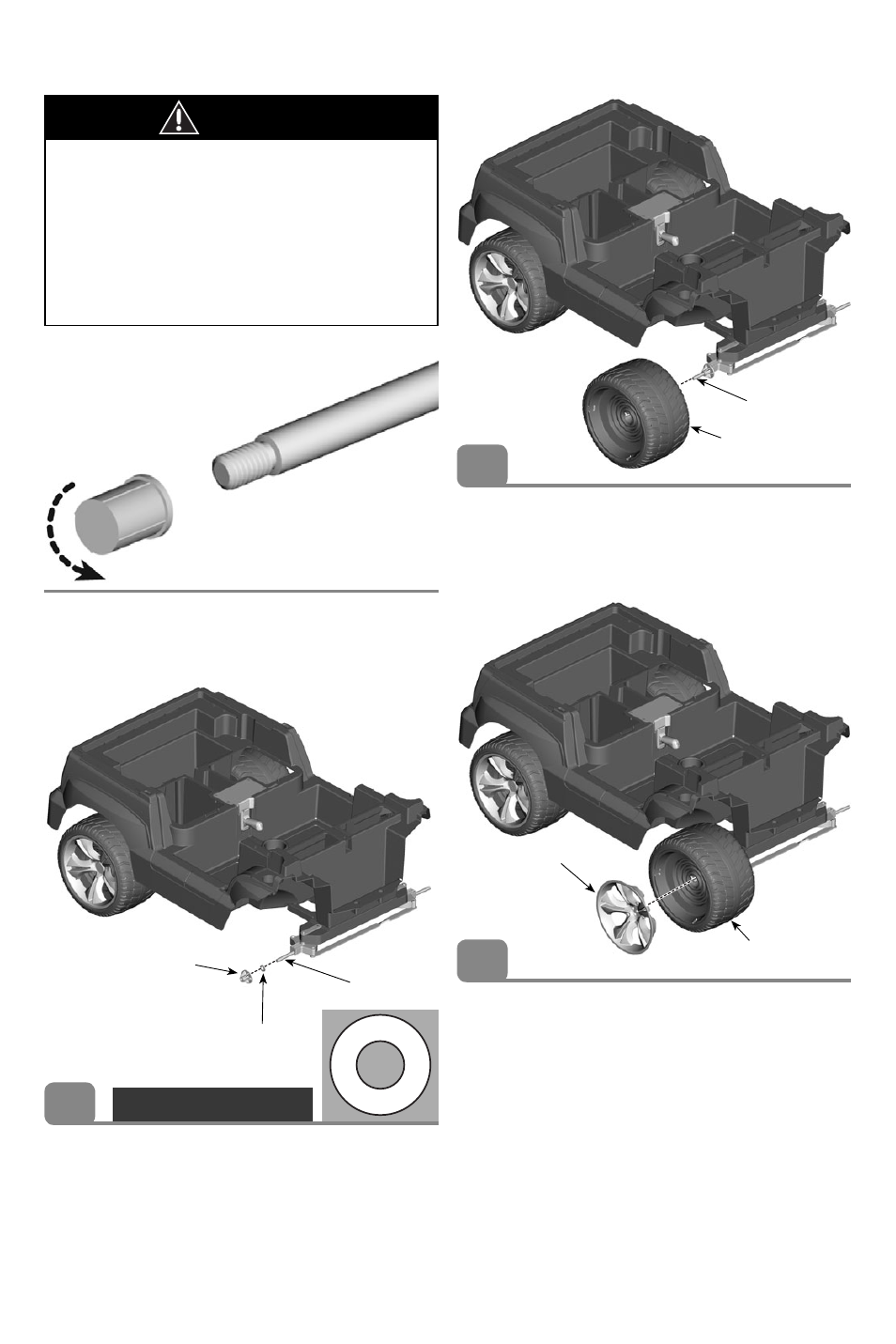

ASSEMBLY

• Slide a

7

/

16

" (1,1 cm) washer onto a front axle.

• Fit a bushing (flat side first) onto the front axle.
• Repeat this procedure to assemble the other

7

/

16

" (1,1 cm)

washer and bushing to the other front axle.

7

/

16

" (1,1 cm) Washer

Front Axle

Bushing

RIGHT SIDE VIEW

Note: Protective caps have been added to the threaded
metal parts to prevent damage during shipping. Please
remove and throw the caps away.

1

Hint: There is a right and a left front wheel. Place the right
wheel (marked R) on the passenger side of the vehicle, and
the left wheel (marked L) on the driver side of the vehicle.
• Place a front wheel onto each front axle.

Front Axle

Front Wheel

• Fit a wheel cover onto each front wheel.

Front Wheel

Wheel Cover

2

3
