ASSEMBLY

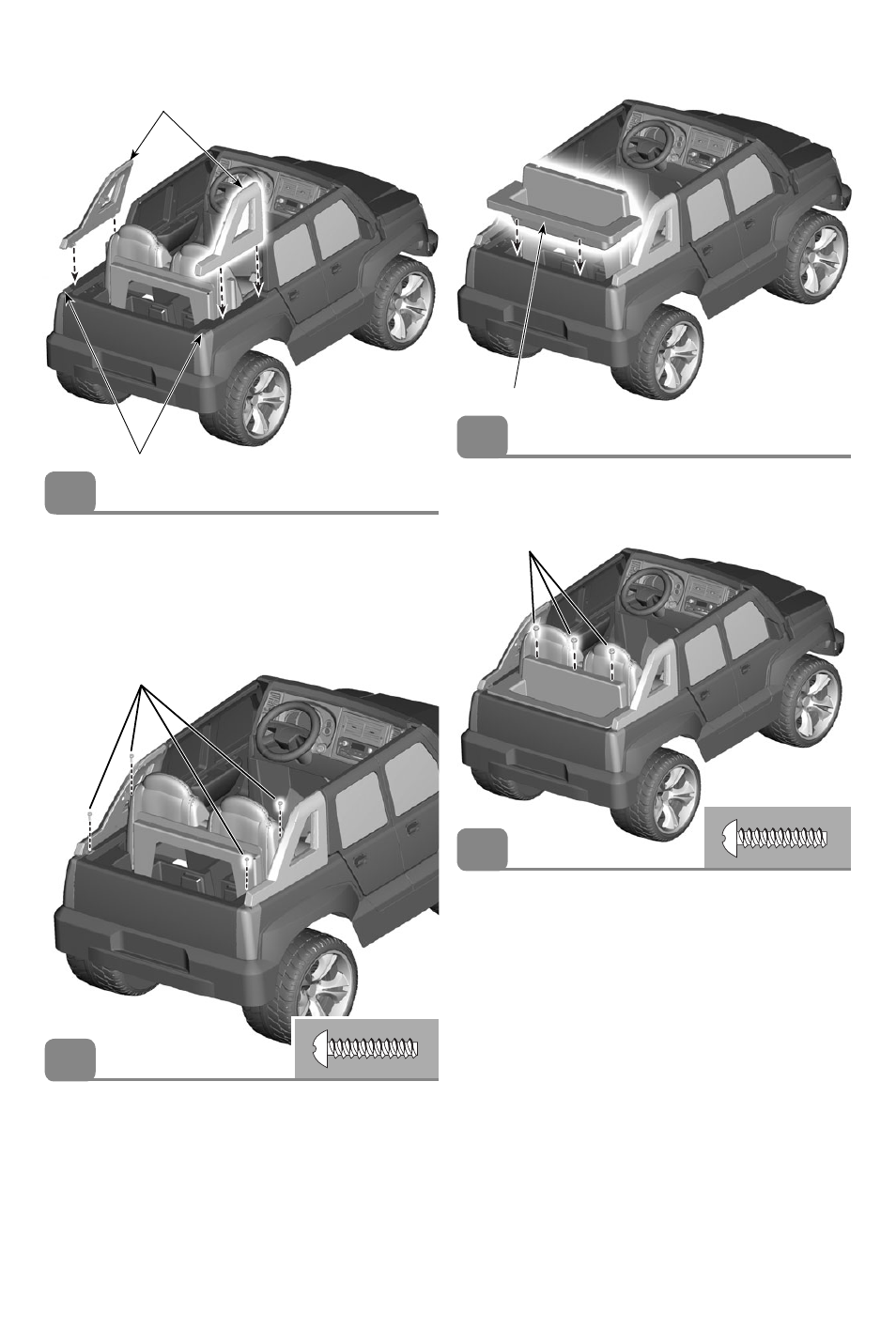

• Fit the wing tabs into the slots in the top edge near the
rear of the vehicle.
Hint: There is a left and right wing. They are designed to be
assembled one way. Make sure the tabs on the top of the
taillights fit into the bottom of each wing.
Wings
Taillight Tabs
• Insert two #8 x
3
/
4
" (1,9 cm) screws into each wing.
Tighten the screws.
• Place the truck bed over the back end of the vehicle.
Truck Bed
• Insert three #8 x
3
/
4
" (1,9 cm) screws into the top of the
truck bed. Tighten the screws.
35
37
36
38
#8 x
3
/
4
" (1,9 cm)
Screws
#8 x
3
/
4
" (1,9 cm)
Screws
