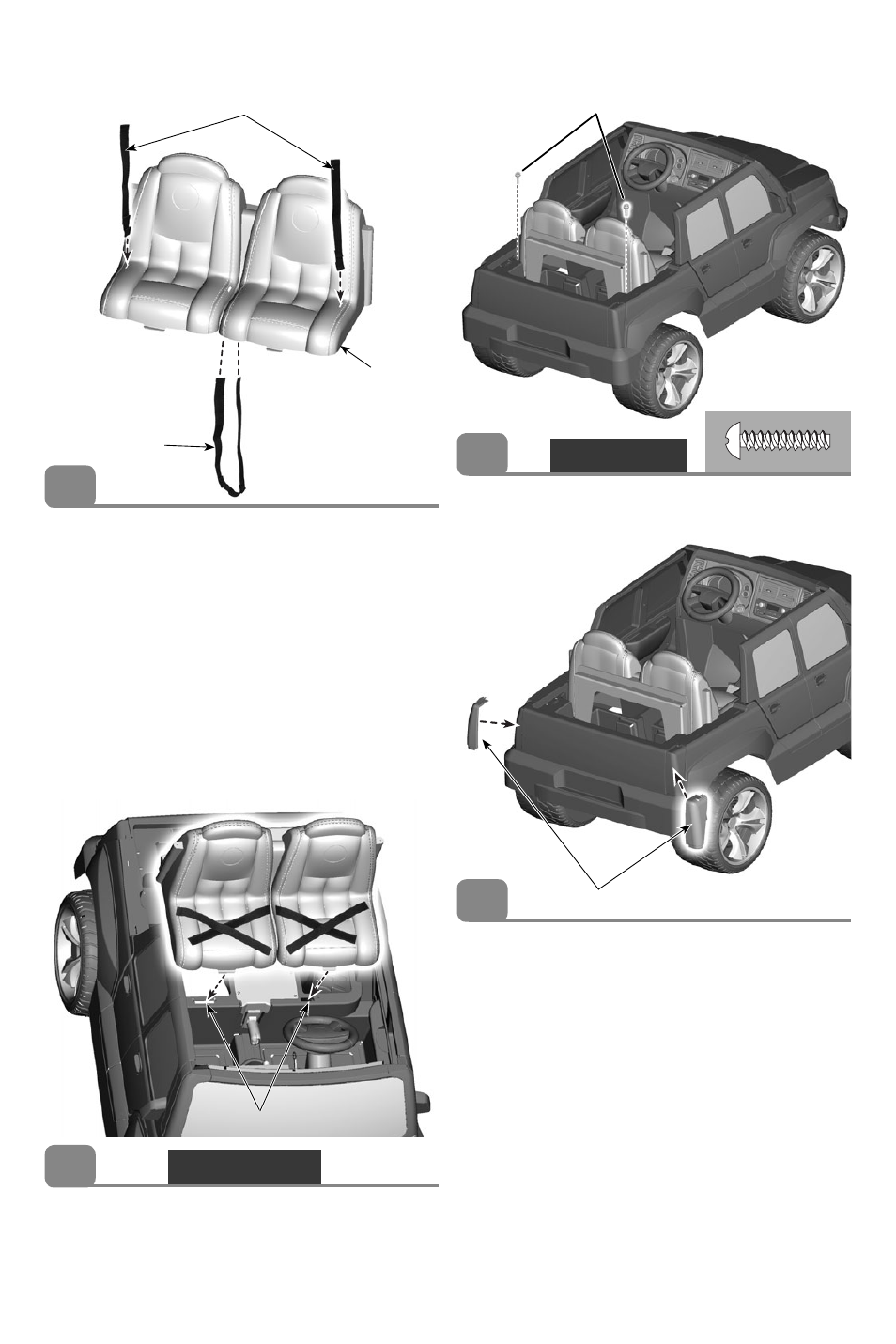

ASSEMBLY
• Insert the two tabs on the front edge of the seat into the
slots in the vehicle.
Slots
TOP VIEW
Note: Make sure the fasteners on both short seat belts face
each other.
• Fit the folded end of each short seat belt down through
the outer slots in the seat. Do not insert the folded tab
into the slot. Pull up on each seat belt to make sure it
is secure.
Note: Make sure the fasteners on the long seat belt are
facing the fasteners on the short seat belts.
• Insert the ends of the long seat belt up through the slots
in the center of the seat.
• Fit the folded tabs on the belt up through the slots in the
center of the seat to keep the long seat belt in place.
Make sure the folded tabs are on visible on the top side
of the seat.
Short Seat Belts
Long Seat Belt
Seat
• Insert two #8 x
3
/
4
" (1,9 cm) screws into the back of the
seat. Tighten the screws.
BACK VIEW
• Fit the taillights (left and right) onto the rear of the vehicle.
Taillights
31
33
34
32
#8 x
3
/
4
" (1,9 cm) Screws
