102
VR800 Owner’s Manual (Changing the initial setting: SETUP mode)

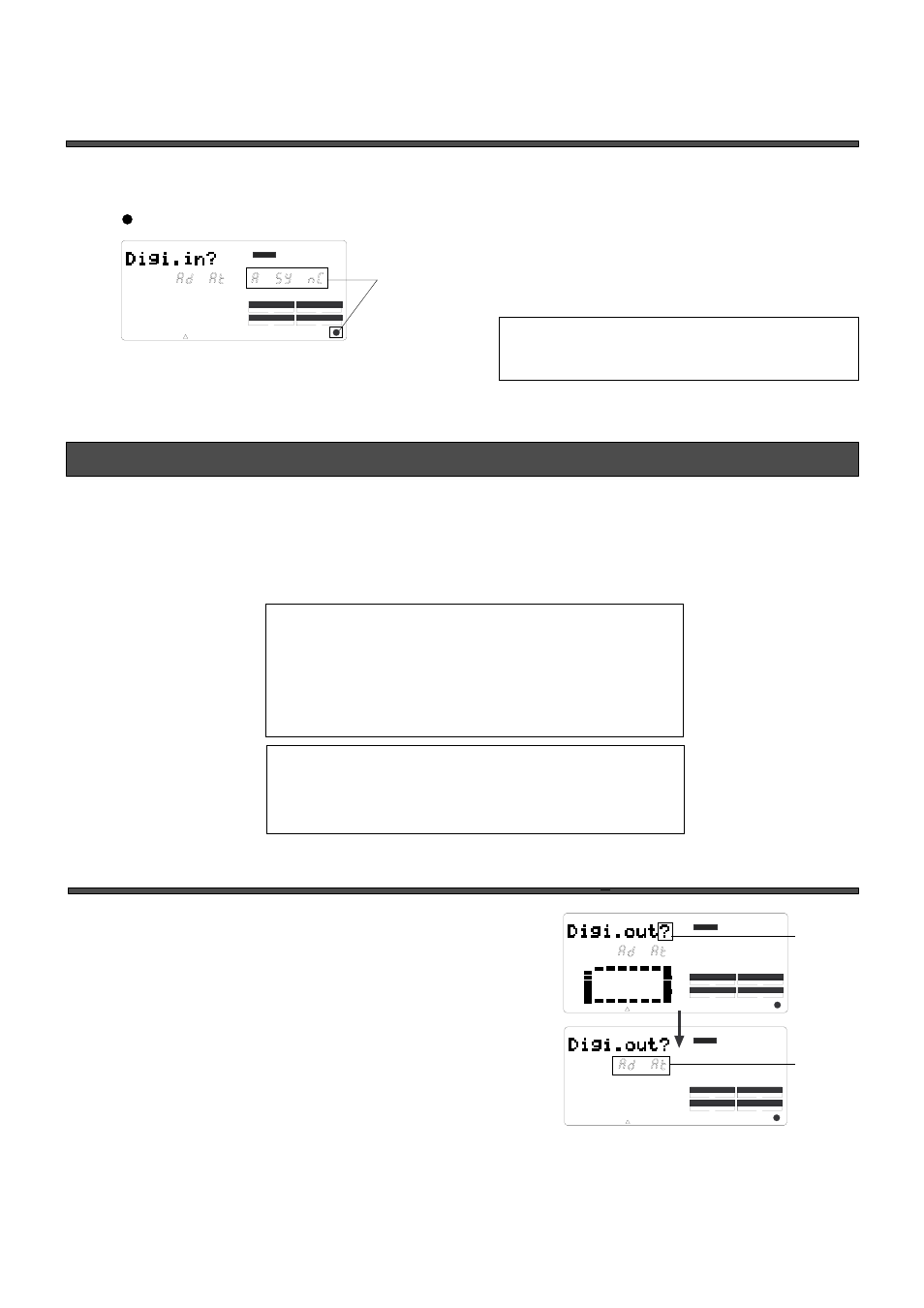

Setting a clock of digital in
1. While the digital input track setting ([AdAt], [*L], or
[r*]) is flashing, press the HOLD/> key, REW button,
or F FWD button so that [A SYnC] will flash.
The “ ” indicator will also flash.
2. Turn the JOG dial to select [ASYnC] or [SYnC].
In [A SYnC] mode, the system does not synchronize the
digital-in clock. In [SYnC] mode, the system synchronizes
the digital-in clock.
CLK
SYNC OUT DRIVE
SCSI
AUTO A.PUNCH
DIGITAL 44.1kHz
Note: Set the digital-in clock and the digital mixer clock
carefully if the VR800 is connected to a digital mixer. Refer
to “Connecting a digital mixer” in the Quick Operation Guide.
3. After you select the clock, press the EXECUTE/YES
key.
The selected clock will be registered, and the display
shown in step 2 appears.
Match the sampling rate of the digital input on the external device with
the sampling rate of the VR800 to send digital signals from the VR800
to the external device.
Setting digital output tracks (“Digi. Out ?” menu)
The “Setting digital output tracks” menu enables you to assign the track that outputs digital signals from the
DATA OUT connector of the VR800 to an external digital device. You can send the recorded audio data on the
VR800 to an external digital device (MD, DAT, adat, digital mixer, etc.) in digital form. Any two tracks selected
from tracks [1]–[8] are assignable. You can also select [AdAt] to output all track data (1–8) simultaneously to a
digital device with an adat input.
• Initial setting :AdAt
• Assignable tracks: L channel = [AdAt], [1] ~ [8]
R channel = [1] ~ [8]
* This setting is shared by all Programs in the same disk.
* The settings cannot be saved and loaded as part of the song data.
* The settings are maintained after you turn off the power to the unit.
Setting digital output tracks
1. While the VR800 is stopped, press the SETUP key
to enter SETUP mode.
2. Turn the JOG dial to select [Digi. out ?] ([?] flashes),
then press the EXECUTE/YES key.
The current digital output track assignment appears on
the display.
Pressing the EXECUTE/YES key turns off the flashing [?]
character, and setting of the digital output track flashes.
With the initial setting, [AdAt] flashes as shown below.
You can select a flashing channel to assign a track.
CLK
SYNC OUT DRIVE
SCSI
AUTO A.PUNCH
DIGITAL 44.1kHz
CLK
SYNC OUT DRIVE
SCSI
AUTO A.PUNCH
DIGITAL 44.1kHz
flashes
flashes
flashes
3. While the [AdAt] is flashing, turn the JOG dial.
When you turn the JOG dial, the flashing [AdAt] indicator
changes to the S/P DIF digital output track indication.
