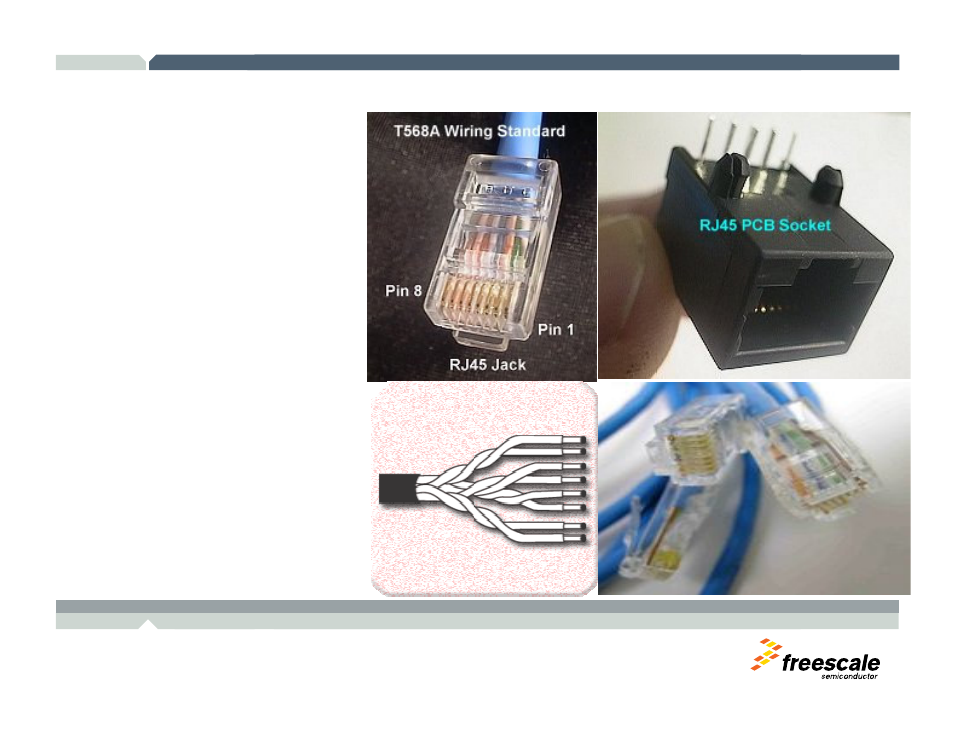

Ethernet Overview Physical Session
Connectors
•
RJ-45
Cables
•
CAT-5
24 AWG solid
bare copper
Four unbounded
twisted pairs
