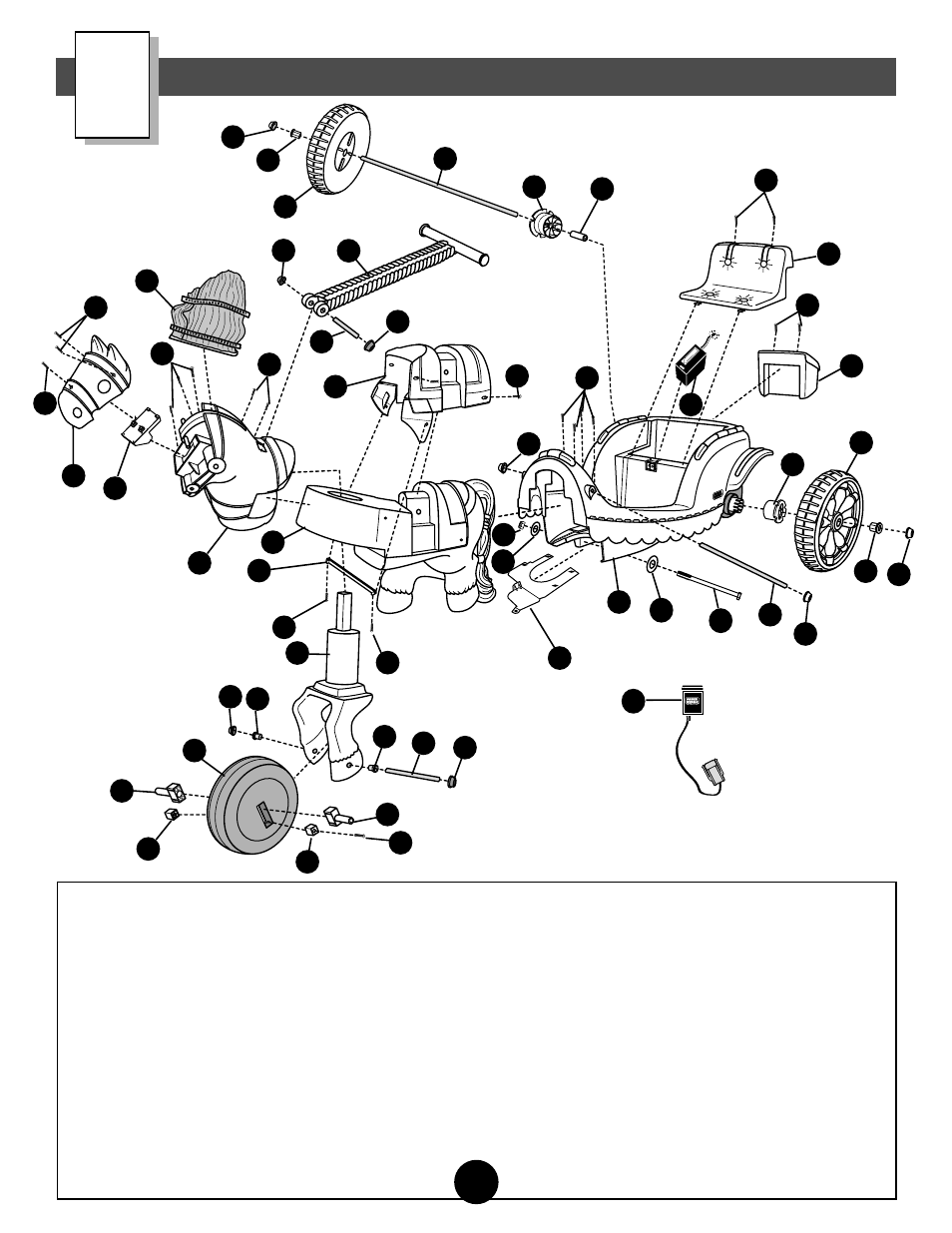

Parts Diagram
D
8
1. Vehicle Body
2. Seat
3. 6 Volt Battery
4. Rear Wheel - 2
5. Rear Axle
6. Floor Plate
7. Trunk
8. Handle Axle
9. Handle
10. Blanket Strap
11. Blanket
12. Pony Body
13. Pony Head Piece
14. Pony Face
15. Mane
16. Front Wheel
17. Front Wheel Spacer - 2
18. Front Feet
19. Front Axle
20. Body Axle
21. Sound Box
22. Hex Bushing - 2
23. Round Bushing - 2
24. Rear Wheel Driver - 2
25. Lock Nut
26. Wheel Bushing - 2
27. Rear Axle Spacer
28. 5 /
16
" x 3 1 /
2
" Bolt
29. #8 x 3 /
4
" Screw - 19
30. #8 x 1" Screw - 2
31. .437 Cap Nut - 8
32. 6 Volt Charger
33. #8 x 1" Truss Head
Shoulder Screw - 3
34. 5 /
16
" Washer - 2
Not Shown
Label Sheets
®
IM P O R T A N T
A 2 5 A M P F U S E M U S T
B E I N S T A L L E D I N T O P
O F B A T T E R Y B E F O R E
T O Y W IL L R E C H A R G E
O R O P E R A T E
18
23
17
16
17
29
26
31
19
23
31
27
31
24
31
26
28
34
34
32
6
25
31
29
31
22
24
7
29
2
30
3
1
8
29 29
4
10
12
13
21
14
33
33
29
5
11
22
4
15
29
29
9
20
31
31
Note: Some parts shown are assembled
on both sides of the vehicle.
