Assembly
11
3

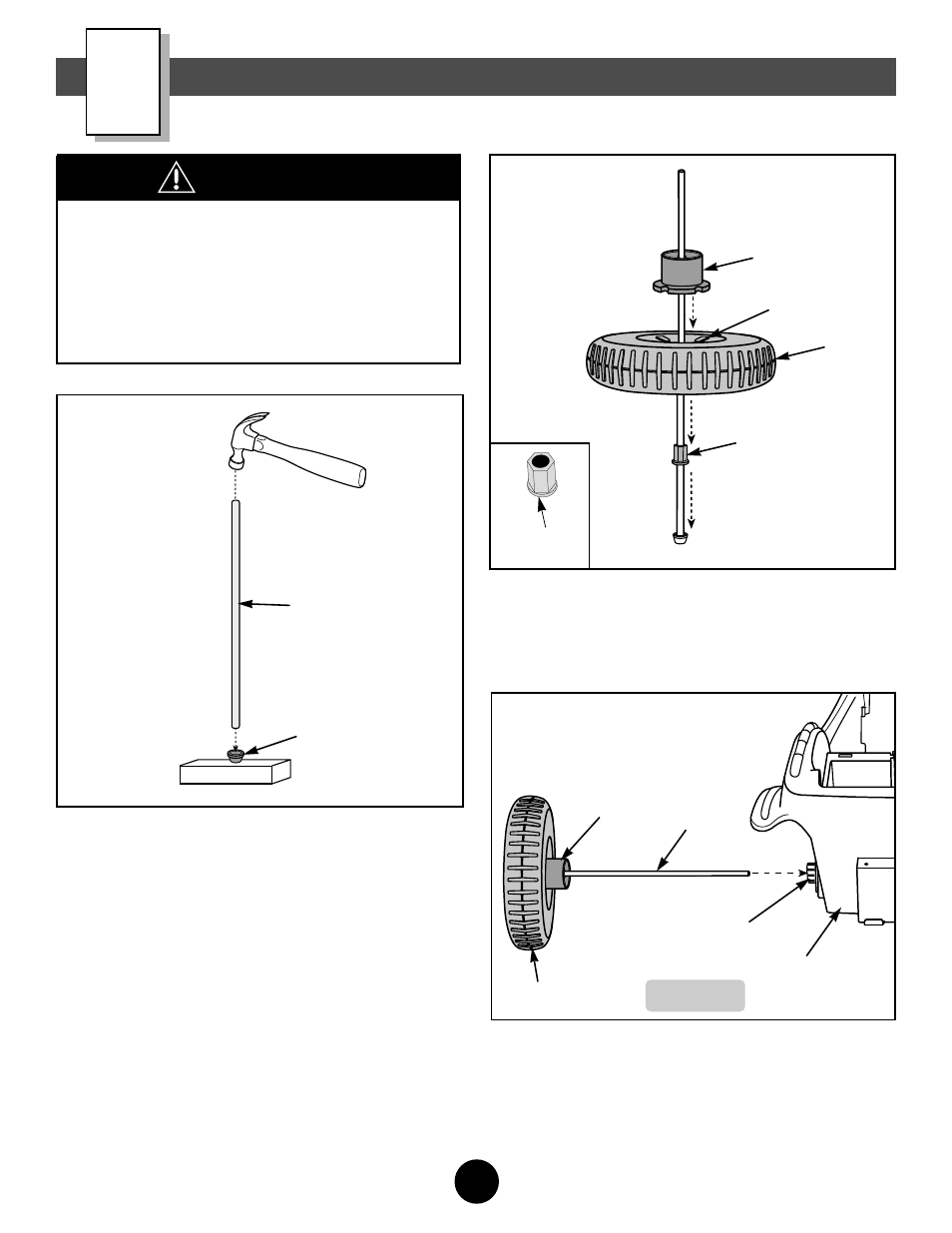

• Separate the rear axle from the other three axles.
The rear axle is the longest axle.
• Position a .437 cap nut on a flat surface and fit one end
of the rear axle into it.
• Tap the other end of the rear axle with a hammer to
secure the cap nut on the end of the rear axle.
Hint: You may want to position the cap nut on a scrap
block of wood to protect the assembly surface.
• Slide a hex bushing, ring side first, onto the rear axle.
• Slide a rear wheel, rib side up, onto the rear axle.
• Slide a rear wheel driver, ring side first, onto the rear
axle. Fit the grooves on the rear wheel driver to the ribs
on the rear wheel.
• Fit the rear axle into the hole in the gearbox and through
the vehicle body.
• Align the ribs on the inside of the rear driver with the
gearbox teeth.
2
1
Rear Axle
Rear Wheel Driver
.437 Cap Nut
Rib Up
Rear
Wheel
Hex Bushing
Rear Wheel
Rear
Wheel
Driver
Rear
Axle
Gearbox
Teeth
Vehicle Body
F
Children can be harmed by small parts,
sharp edges and sharp points in the
vehicle’s unassembled state, or by electrical
items. Care should be taken in unpacking
and assembly of the vehicle. Children
should not handle parts, including the
battery, or help in assembly of the vehicle.
WARNING
Hex Bushing
Ring Side
Back View
