Power Distribution
7.3.5.2
Installation options for 700 mm wide symmetrical racks
Performing the task
Ê
Install two PDU brackets as described on

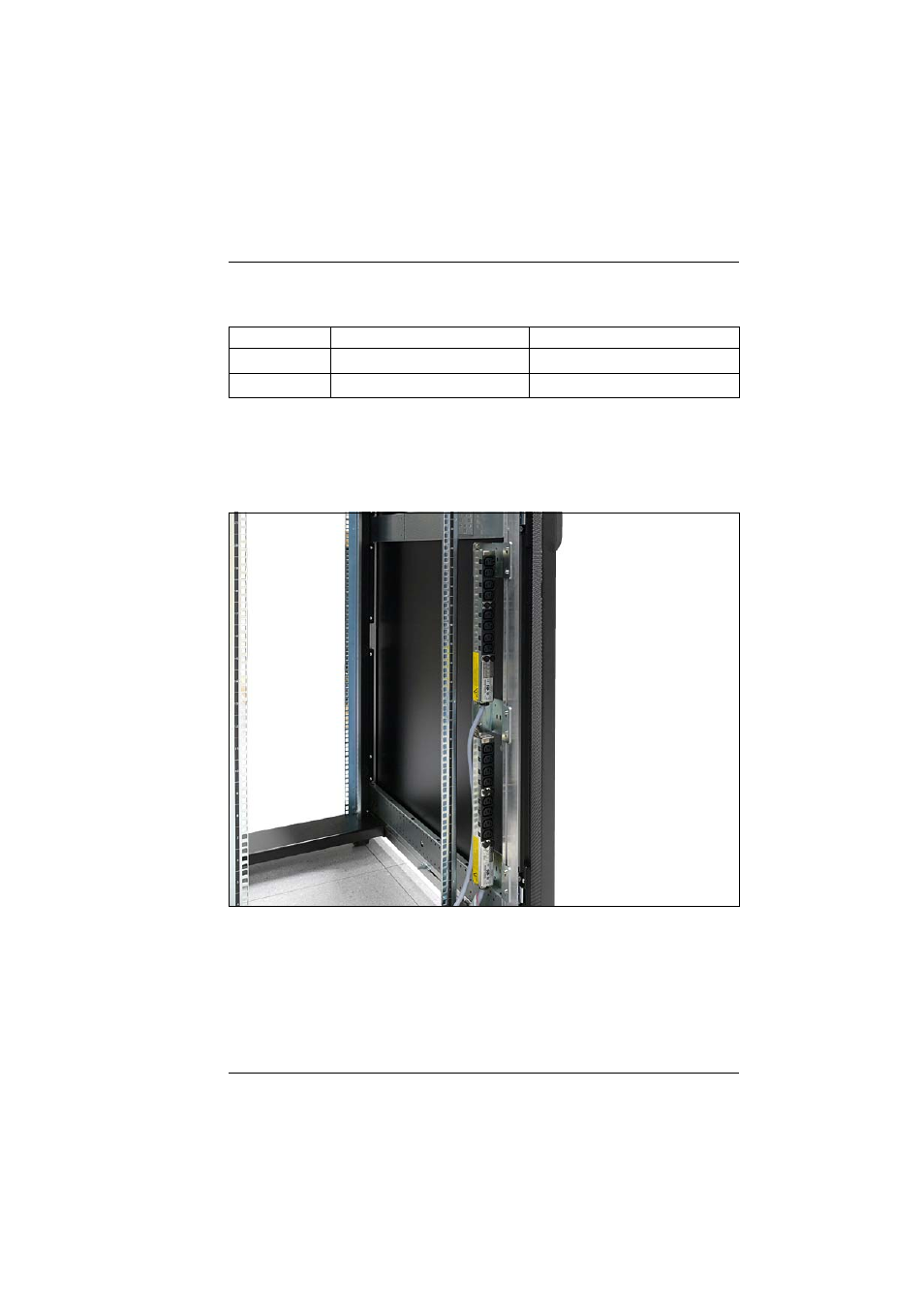

Figure 58: Single-phase 8-way socket strip mounted 2x in a 700 mm wide symmetrical rack
Ê
Screw the socket strip with 2 screws onto the PDU brackets.
I
Installation is possible on both sides.
Rack height
Installation direction vertically
Installation direction horizontally
42 HU
ok
Max. 4x with PDU kit 3 HU
24 HU
ok
Max. 4x with PDU kit 3 HU
Table 14: Installation options for 700 mm wide asymmetrical racks
