Power Distribution
7.3.8.1
Installation options for 700 mm wide asymmetrical racks
Performing the task
Ê
Install the PDU brackets as described on
.

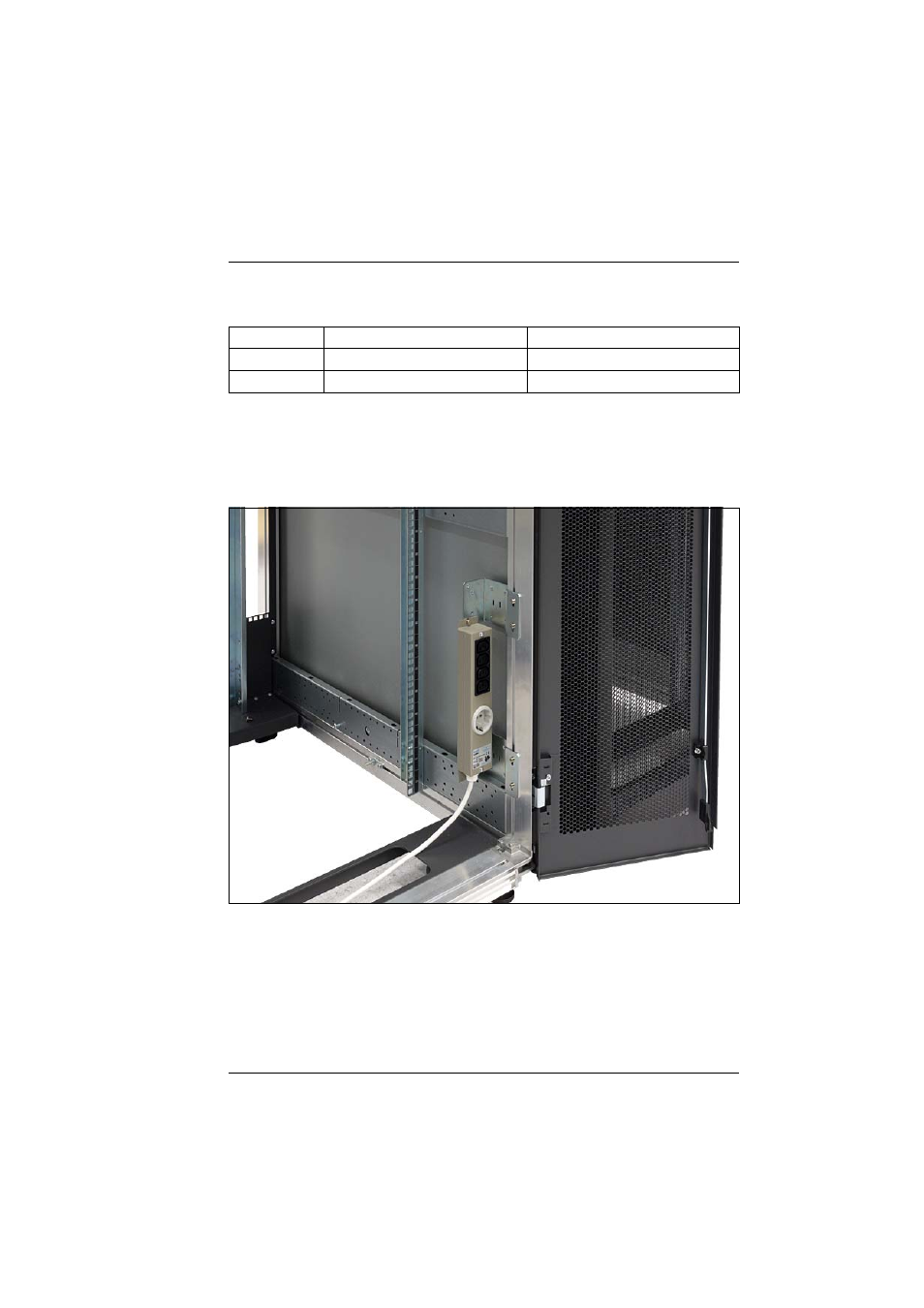

Figure 71: Single-phase socket strip with 4+1plugs and assembly mounted in a 700 mm wide
asymmetrical rack
Ê
Screw the socket strip with 2 screws onto the PDU brackets.
Rack height
Installation direction vertically
Installation direction horizontally
42 HU
ok
Not mountable with PDU kit 3 HU
24 HU
ok
Not mountable with PDU kit 3 HU
Table 22: Installation options for 700 mm wide asymmetrical racks
