SK-96370-144PMC-GDC User Guide

Chapter 5 Programming the internal Flash memory

FMEMCU-UG-960014-10

- 30 -

OFF

DIP-Switch S1

(Programming Mode)

MD0 MD1 MD2 nc

5.1.3 Reset

(optional)

Depending on the programming software a reset signal might be generated by RTS or DTR
line. In order to use this optional feature additional jumper have to be set:

Jumper

Programming

UART

Setting Description

1-2

DTR signal of X5 is used as reset source

JP23

(DTR/RTS)

UART0

2-3

RTS signal of X5 is used as reset source

1-2

DTR signal of X9 is used as reset source

JP38

(DTR/RTS)

UART2

2-3

RTS signal of X9 is used as reset source

1-2

LIN-UART 0 (X5) is used to generate reset

JP33

(RESET A/B)

UART0 or

UART2

2-3

LIN-UART 2 (X9) is used to generate reset

1-2

No negation for the DTR/RTS signal

JP41

(DTR / DTRx)

UART0 or

UART2

2-3

DTR/RTS signal is negated

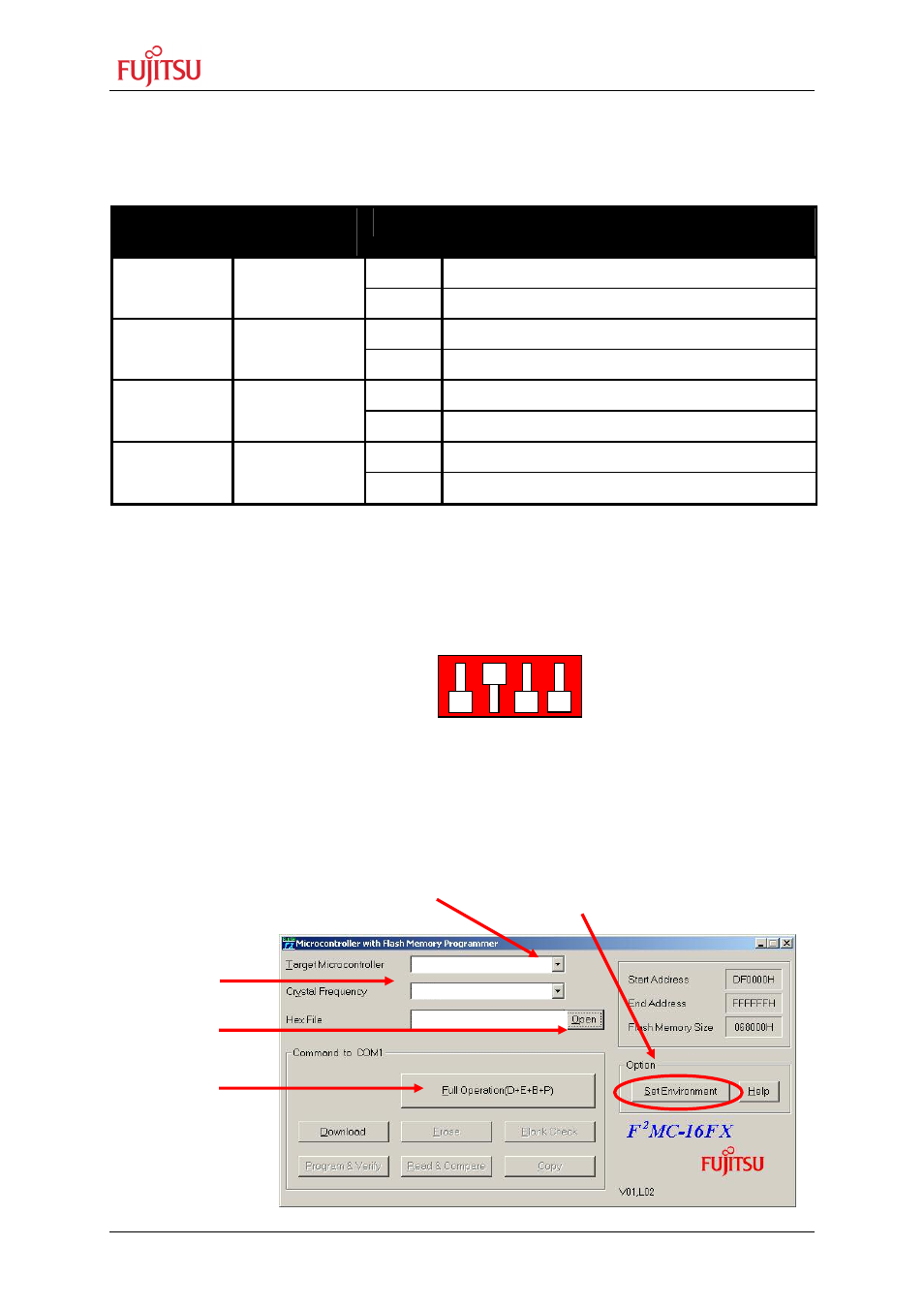

Table 5-3: Jumper Settings for reset signal

5.1.4 Flash Programming

1) Configure the microcontroller mode:

2) Connect the configured UART (see above) to your serial PC communication port.

A straight 1:1 cable connection has to be used.

3) Start the tool “Fujitsu Flash MCU Programmer” software and make the settings:

Set Device Type

Select COM Port

Start

programming

Open Source

(MHX-File)

Select Crystal

Application.MHX

4 MHz

MB96F379R/Y
