SK-96370-144PMC-GDC User Guide
Chapter 3 Jumpers and Switches
FMEMCU-UG-960014-10 - 14 - © Fujitsu Microelectronics Europe GmbH
ON
OFF
DIP-Switch S1
(RUN Mode)
MD0 MD1 MD2 nc
1 2 3 4
ON
OFF
DIP-Switch S1
(Programming Mode)
MD0 MD1 MD2 nc
1 2 3 4
3 Jumpers and Switches
This chapter describes all jumpers and switches that can be modified on the evaluation
board. The default setting is shown with a grey shaded area.

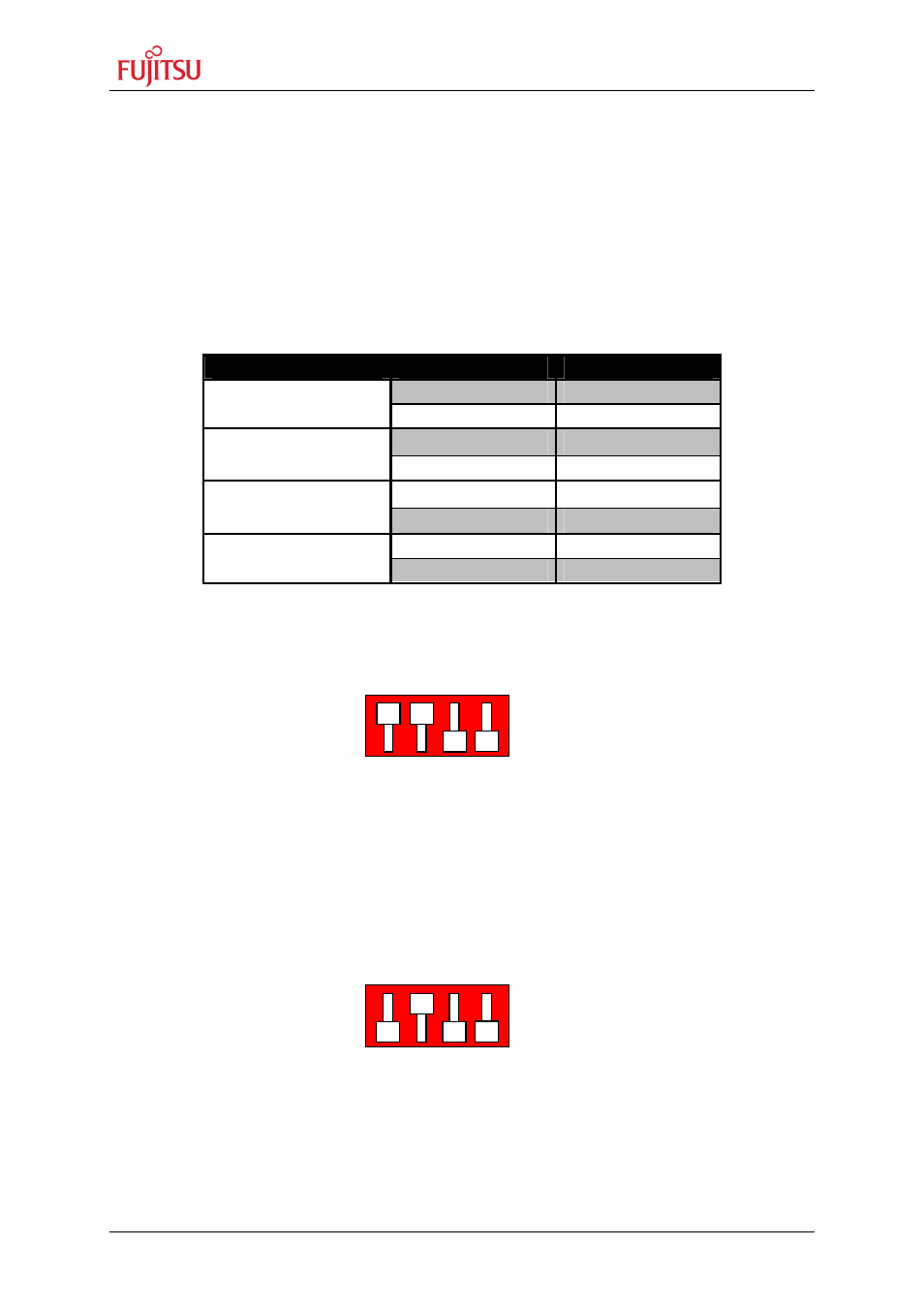

3.1 Operating Mode (S1)
This switch controls the MCU operation mode after Reset.
Please take care of the following mode settings:
DIP switch Setting Logical value
ON (closed) 1 (high) S1-1
(MD0)
OFF (open) 0 (low)
ON (closed) 1 (high) S1-2
(MD1)
OFF (open) 0 (low)
ON (closed) 1 (high) S1-3
(MD2)
OFF (open) 0 (low)
ON (closed) Not connected S1-4
(Not used)
OFF (open) Not connected
Table 3-1: MCU Operating Mode
Figure 3-1: MCU mode switch: RUN mode (Fixed Vector Mode)
Figure 3-2: MCU mode switch: Flash Programming mode
