4.6 In-Circuit-Programming
Connector
(X4)
There is a flash-programming socket on the starter-kit, which makes it possible to program
the flash MCU with a special programming adapter. Mode pin MD0 and reset signal are also
available at this connector.

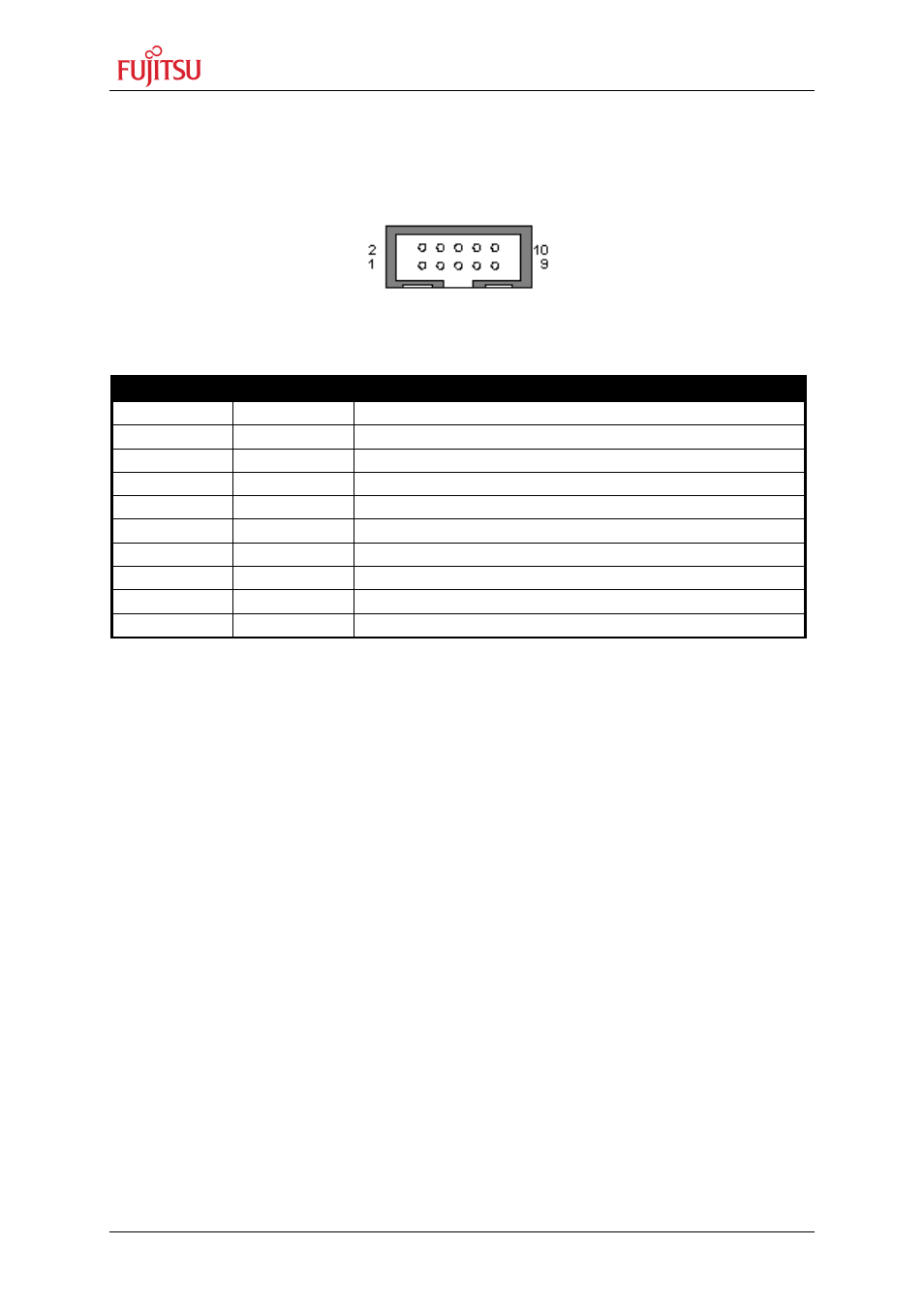

Figure 4-5: In-circuit programming connector
Pin Number
Pin Signal
Description
1
NC Not
used
2
NC Not
used
3
MD0
MCU mode pin MD0
4
NC Not
used
5
RSTX MCU
reset
signal
6
SIN3
UART2 receive data
7
SOT3 UART2
transmit
data
8
SCK3 UART2
clock
9
VCC
Board supply voltage
10 GND
Ground
Table 4-4: In-circuit programming connector
