4.4 CAN

Connector

(X6, X8)

Two 9-pin D-Sub male connectors are used for the CAN interfaces CAN0 and CAN1. Both
CAN interfaces can be used simultaneously.

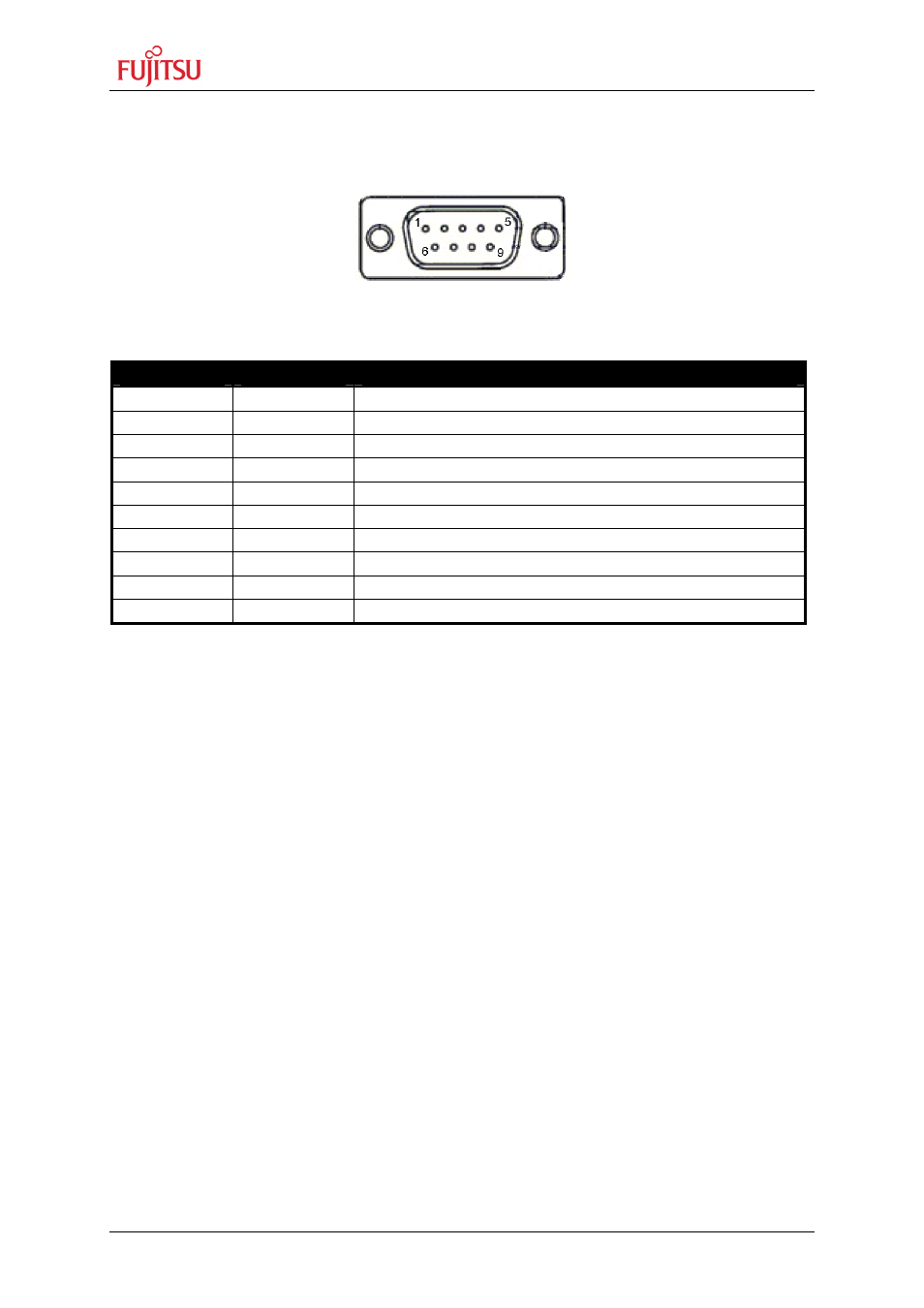

Figure 4-3: CAN Connector

Pin Number

Pin Signal

Description

1

NC Not

used

2

CANL

LOW-level CAN voltage input/output

3

GND Ground

4

NC Not

used

5

NC Not

used

6

NC Not

used

7

CANH HIGH-level

CAN

voltage

input/output

8

NC Not

used

9

NC Not

used

Shield GND

Ground

Table 4-2: CAN Connector Signals
