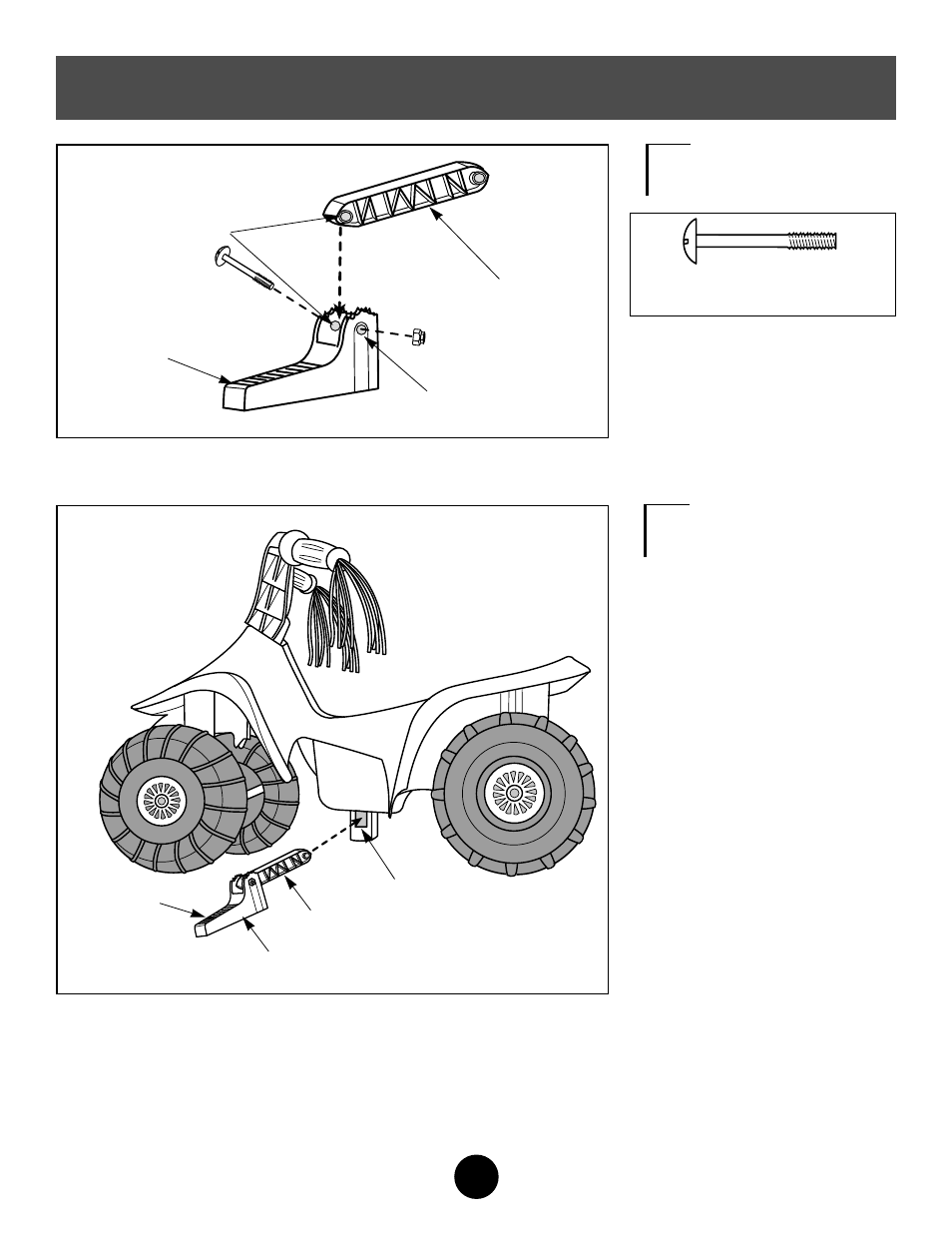

• Align the holes in a footrest with
the holes in one end of the
footrest support.
• Insert a #10 x 1 1 /
4
" bolt through
the footrest and footrest support.
• Fit a lock nut onto the end of the
bolt and hand-tighten it.
Assembly
17
Holes
Hole
Footrest
Footrest
Support
17
• Insert the footrest support through
the square opening at the bot-
tom of the vehicle body. Make
sure the grooves on the footrest
face up.
• Align the holes in the other
footrest with the holes on the
other side of the footrest support
and repeat assembly step 16 on
the other side of the footrest
support.
Grooves
Square
Opening
Footrest
Support
Footrest
18
#10 x 1 1 /
4
" Bolt
Shown Actual Size
