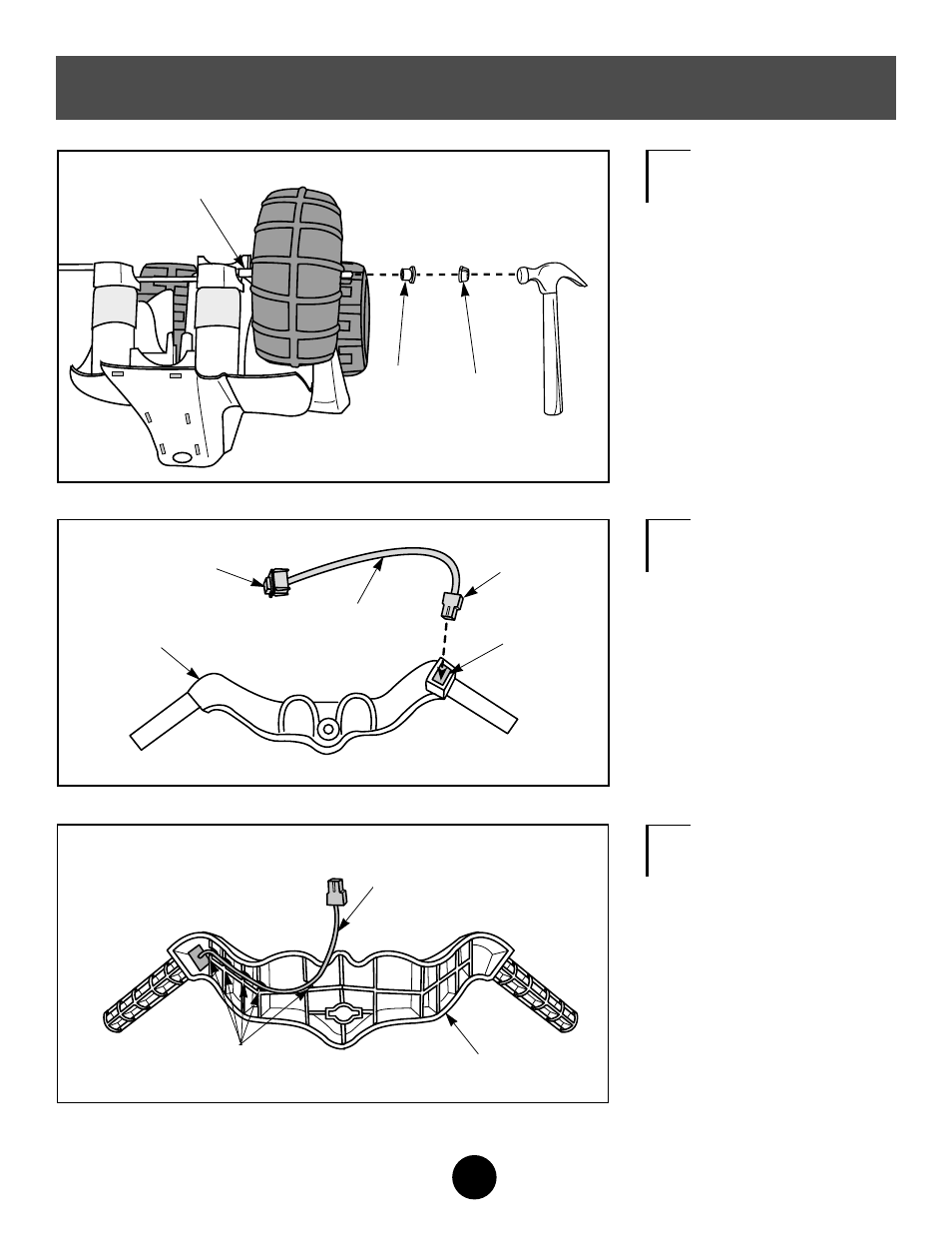

• Slide a round bushing onto the
front axle and press it into the
center of the front wheel.
• Fit a cap nut onto the end of the
front axle.
• Tap the cap nut with a hammer
to secure it on the front axle.
• Repeat assembly steps 3 and 4 to
assemble the other front wheel to
the other side of the front axle.
• Position the vehicle body upright.
Assembly
12
Cap
Nut
Front Axle
Round
Bushing
4
• Insert the connector end of the
handlebar wire harness into the
rectangular opening in the
handlebar.
• Feed the handlebar wire harness
through the handlebar.
• Push firmly on the button end of
the handlebar wire harness to
snap it into the rectangular
opening.
Rectangular
Opening
Handlebar
Button End Connector
End
Handlebar
Wire
Harness
5
Handlebar
Wire Harness
Handlebar
• Turn the handlebar upside down.
• Align the handlebar wire harness
with the guides on the underside
of the handlebar.
• Push firmly on the handlebar
wire harness near each of the
guides to secure the wire in the
underside of the handlebar.
6
Guides
