Assembly
19

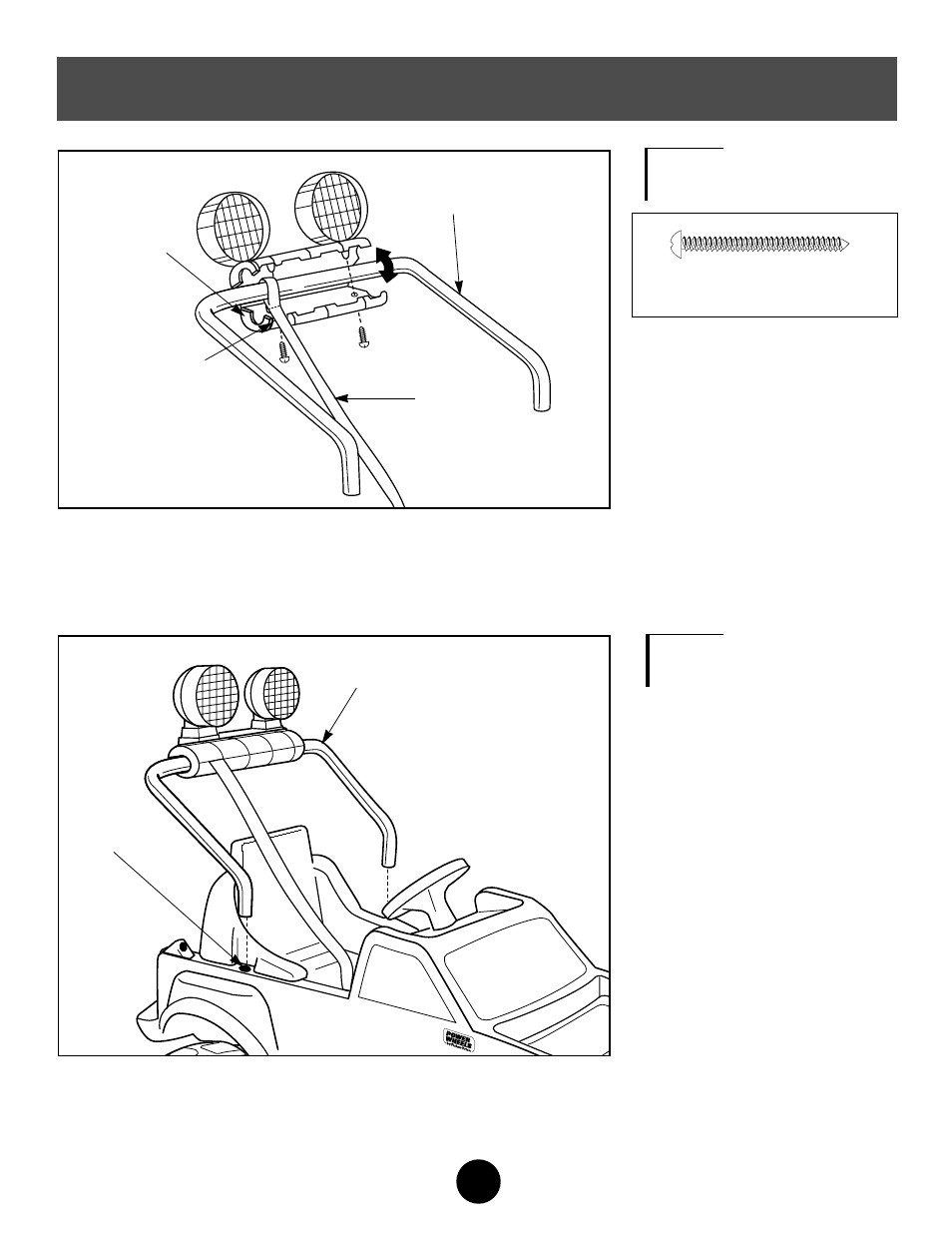

• Fit the ends of the sport bar into
the holes in the vehicle body.
21
TM
20
• Fit the bottom half of the light
rack onto the center section of
the sport bar.
• Insert two #6 x 1 1 /
2
" screws up
through the bottom half of the
light rack and into the sport bar,
as shown.
• Close the light rack around the
sport bar, making sure that the
seat belt strap exits through the
outer slot in the right side of the
light rack.
• Tighten the screws with a Phillips
screwdriver. Do not over-tighten.
Hole
Sport Bar
Light Rack -
Bottom Half
Sport Bar
Seat Belt Strap
Outer Slot - Right
#6 x 1 1 /
2
" Screw – 2
Shown Actual Size
