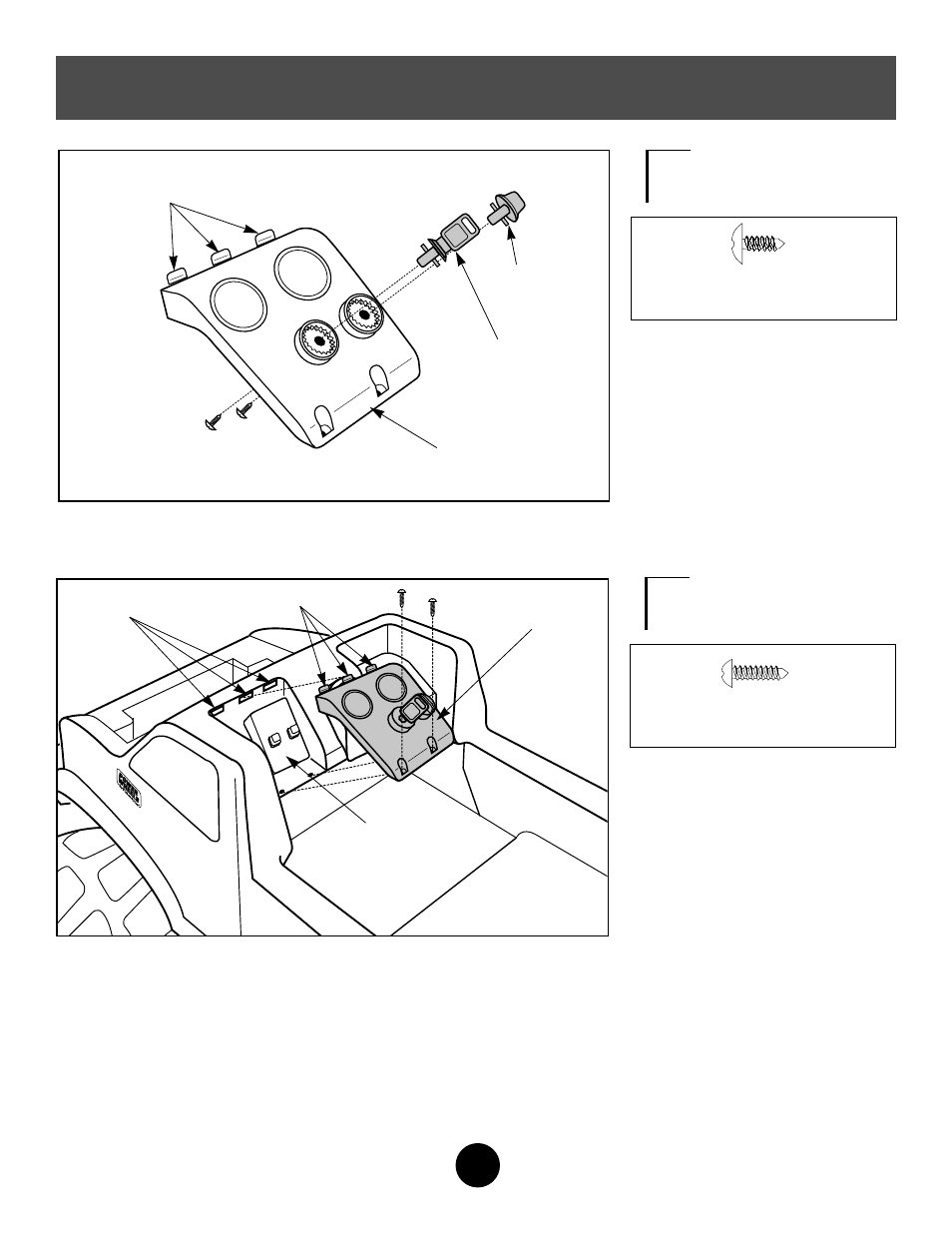

• Insert the tabs on the sound box
cover into the slots in the dash
near the sound box.
• Lower the bottom of the sound
box cover.
• Insert two #6 x 1 /
2
" screws through
the sound box cover and into the
dash.
• Tighten the screws with a Phillips
screwdriver. Do not over-tighten.
12
Assembly
#6 x 1 /
2
" Screw – 2
Shown Actual Size
• Position the sound box cover as
shown. Make sure the three tabs
are at the top.
• Fit the knob into the hole in the
right side of the sound box cover.
• Fit the key into the hole to the left
of the knob.
• Insert a #6 x 3 /
8
" screw into the
back of the knob and into the
back of the key.
• Tighten the screws with a Phillips
screwdriver. Do not over-tighten.
3
Knob
#6 x 3 /
8
" Screw – 2
Shown Actual Size
4
Tabs
Key
Sound Box Cover
Tabs
Slots
Sound Box Cover
Sound Box
