FUJITSU M3093DE - Manual (Page 38)

5 – 6

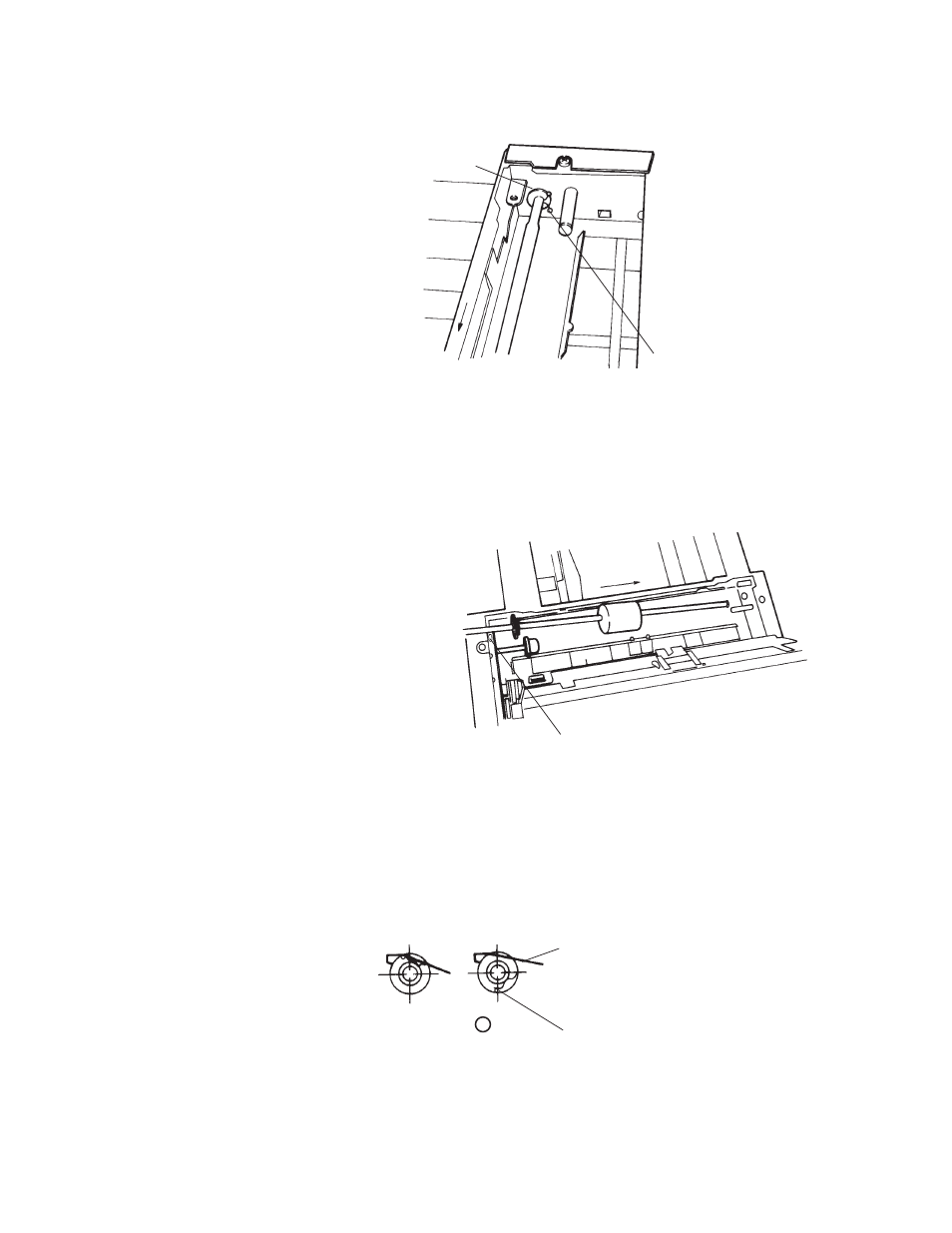

Figure 5.5 Move the Retaining spring
A direction
Retaining Spring
Bearing A
c. Pinch the retaining spring and
slide it toward the roller. Free
bearing A from the bracket by
sliding it toward the roller.
d. Slide the pick roller shaft in the
direction of arrow B and remove
the shaft from bearing B.
The roller shaft can then be lifted
and removed as shown in Figure
5.6.
e. Remove the bearing B.
f. Mount the new pick roller in
reverse order of removal.
Figure 5.6 Slide the Pick Roller
Arrow B
Bearing B
NOTICE: When mounting the Guide A, note that the hooks of the retaining spring are not
pressed by the Guide A. (See figure below)
×
Retaining spring
Guide A
