4 – 6
(THICK mode) (NORMAL mode)
Paper select lever
ADF frame
Section A enlargerd
NOTICE: Paper should be straightened to fit the condition below.
Top of the paper
More than
30 mm
Less than
5 mm
Read surface
Feed direction
Read surface
Feed direction
Top of the paper
More than
30 mm
Less than
3 mm

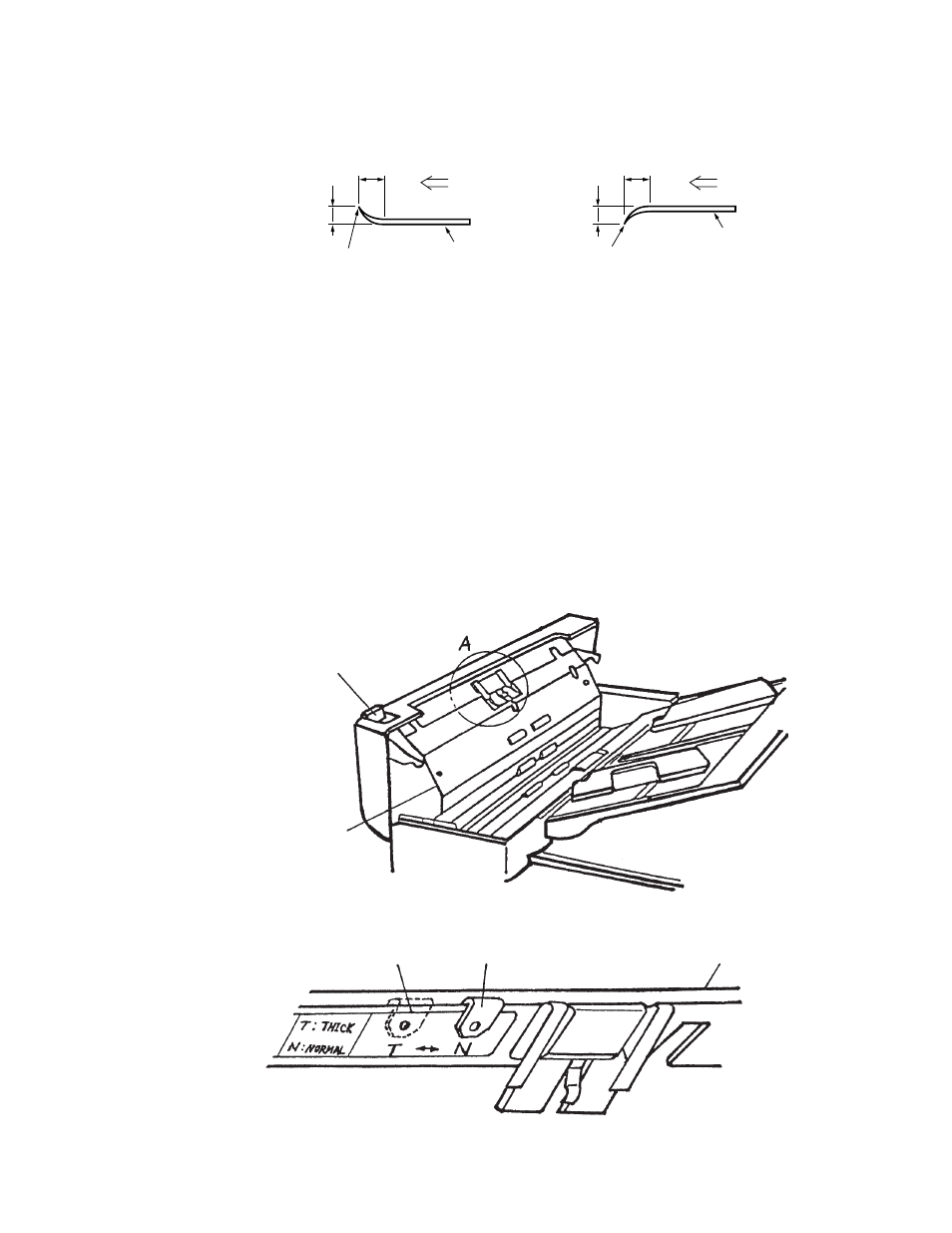

② Switch the paper select lever.
Switch the lever in the following procedures:
• Open the automatic document feeder (ADF) while lifting up the
ADF lever.
• Set the paper select lever.
Plain paper: "NORMAL"
Heavy paper: "THICK"
• Reset the ADF. (Check that the ADF lever is set at the normal
position.)
NOTICE: Always reset the paper select lever to "NORMAL" posi-
tion, when you feed the paper other than heavy paper.
ADF lever
Automatic document
feeder (ADF)
