(3) Special jumper settings

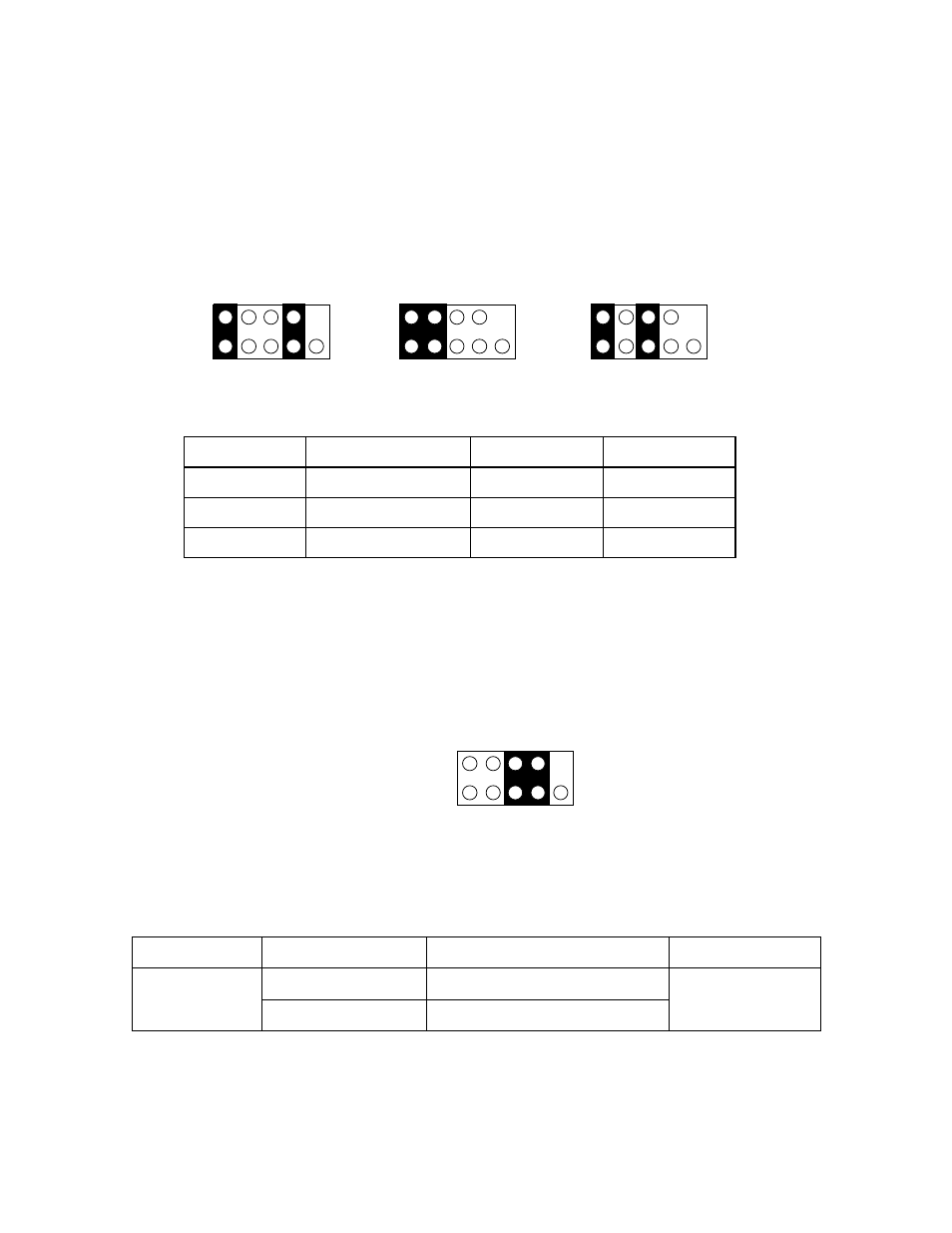

(a) 2.1 GB clip (Limit capacity to 2.1 GB)
If the drive cannot be recognized by system with legacy BIOS’s which do not allow single
volume sizes greater than approximately 2.1 GB, the following jumper settings should be
applied.
Slave Device Master Device Cable Select
8 6 4 2
9 7 5 3 1
8 6 4 2
9 7 5 3 1
8 6 4 2
9 7 5 3 1
Model No. of cylinders No. of heads No. of sectors
MPG3102AH 4,092 16 63
MPG3153AH 4,092 16 63
MPG3204AH 4,092 16 63
(b) Slave present
If the slave device does not use the Device Active/Slave Present (DASP–) signal to indicate
its presence, the device is configured as a Master with slave present when the following
jumper settings is applied.
Slave present
8 6 4 2
9 7 5 3 1
NOTE:
The following Jumper Plug is the recommended specification for jumper setting on this
device.
Parts name Parts number Manufacturer Remarks
IMAS-9251H-GF IRISO ELECTRONICS CO., LTD
Jumper Plug
206-A-BLK OUPIIN ENTERPRISE CO., LTD
2.54 mm Pitch
0.64 mm
