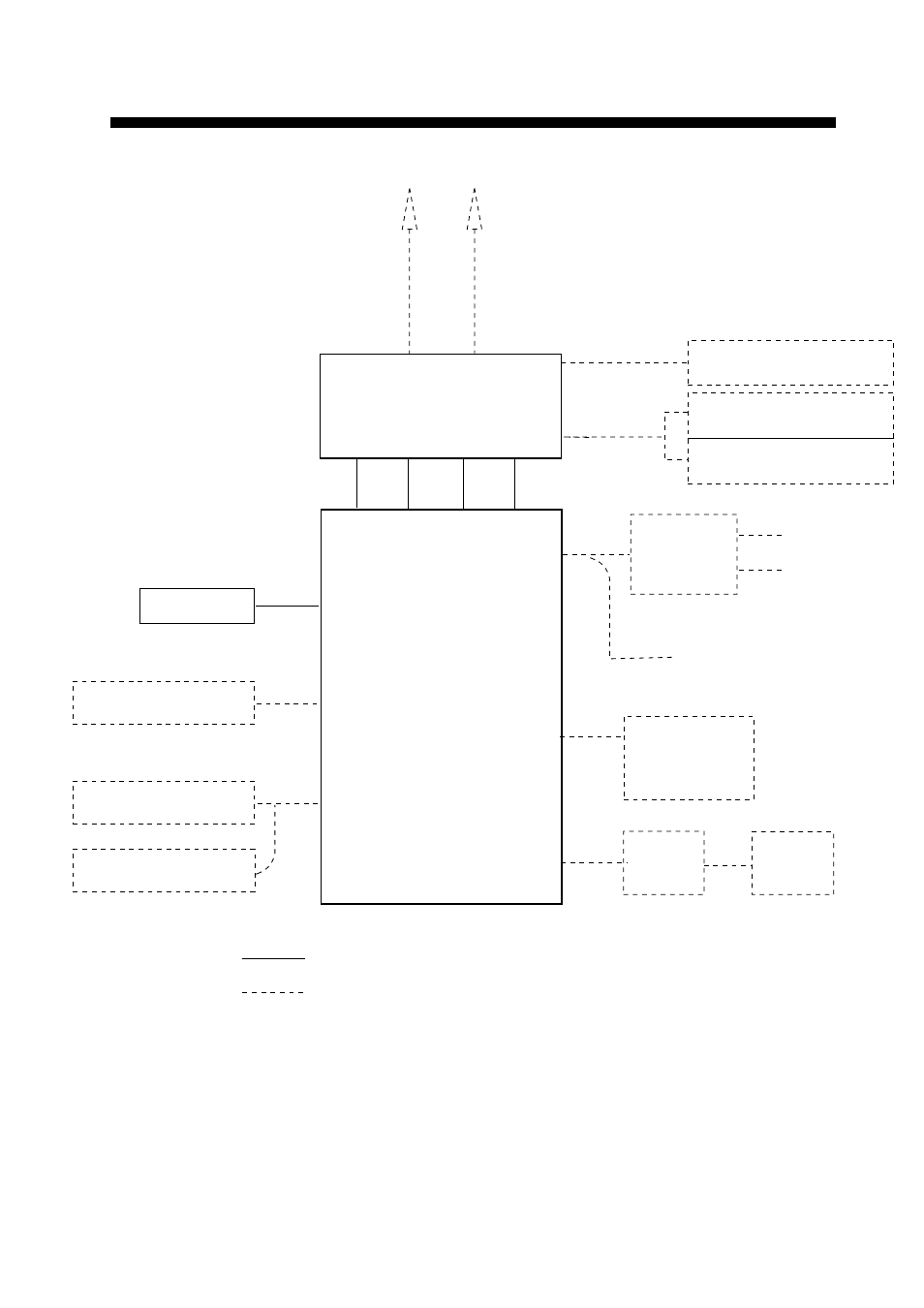

1. System Configuration
TRANSCEIVER UNIT
FM-8700
Handset
VHF
Antenna CH70 RX *
Antenna
Distress
Message
Controller
DMC-5
Navigation Device
DUPLEXER UNIT
DX-8700
Wing Handset (port)
Wing Handset (starboard)
Printer
PP-510
Printer
Interface
IF-8500
External Speaker
Remote Station RB-700
Distributor DB-500
AC/DC
Power
Supply
Unit PR-300
110/220 VAC
24 VDC
24 VDC
: Standard Supply
: Optional Supply
*: Not used when VHF antenna is
commonly used for TX/RX.
