Power Supply (option)
For Convention vessels, both AC and DC power must be fed to the
FM-8700, via an AC/DC power supply. When AC input fails, DC
power is supplied. FURUNO can supply an AC/DC power supply
unit, the PR-300.
Mounting considerations
When selecting a mounting location, keep in mind the following
points.
• Select a location which provides adequate ventilation.
• The location must be clean and dry.
• The mounting location must be able to support the weight of the
unit (14.5 kg) under the continued conditions of vibration normally
encountered aboard the vessel. If necessary, reinforce the mount-
ing location.
Mounting
Refer to outline drawing.
Printer Interface (option)
Printer Interface IF-8700 is connected between the printer PP-510
and the transceiver unit. See outline drawing on page D-11.
Printer (option)
Refer to the printer outline drawing on page D-12 for mounting
dimensions.
Lay the printer on a tabletop and fix it with printer fixtures 1 and 2.
405
200
Printer
Fixture 1
Printer
Fixture 2

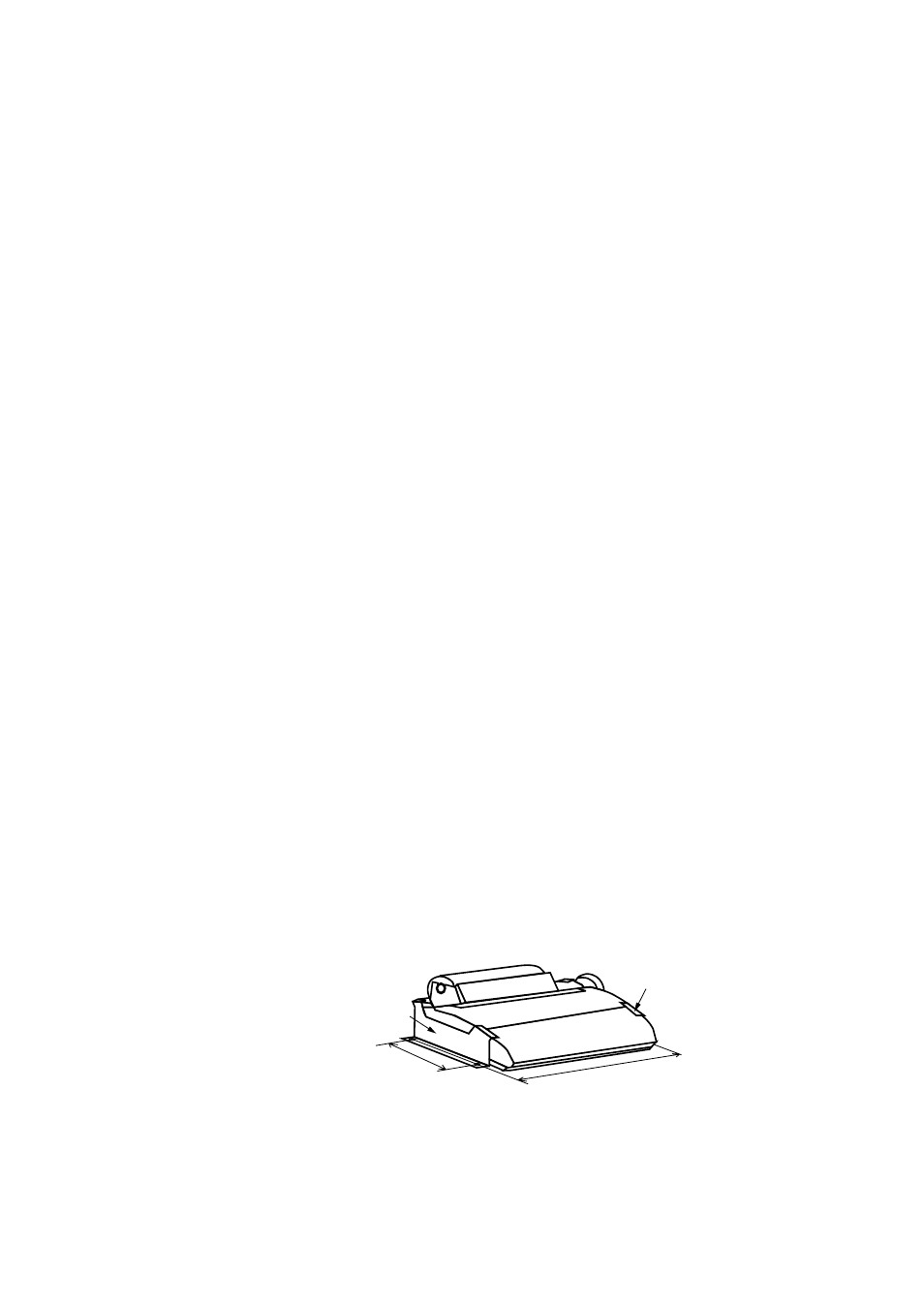

Figure 4 Mounting of Printer PP-510
