Getting Started
Managing Your Network Using Fluke DAQ
39
Inserting and Configuring a Module

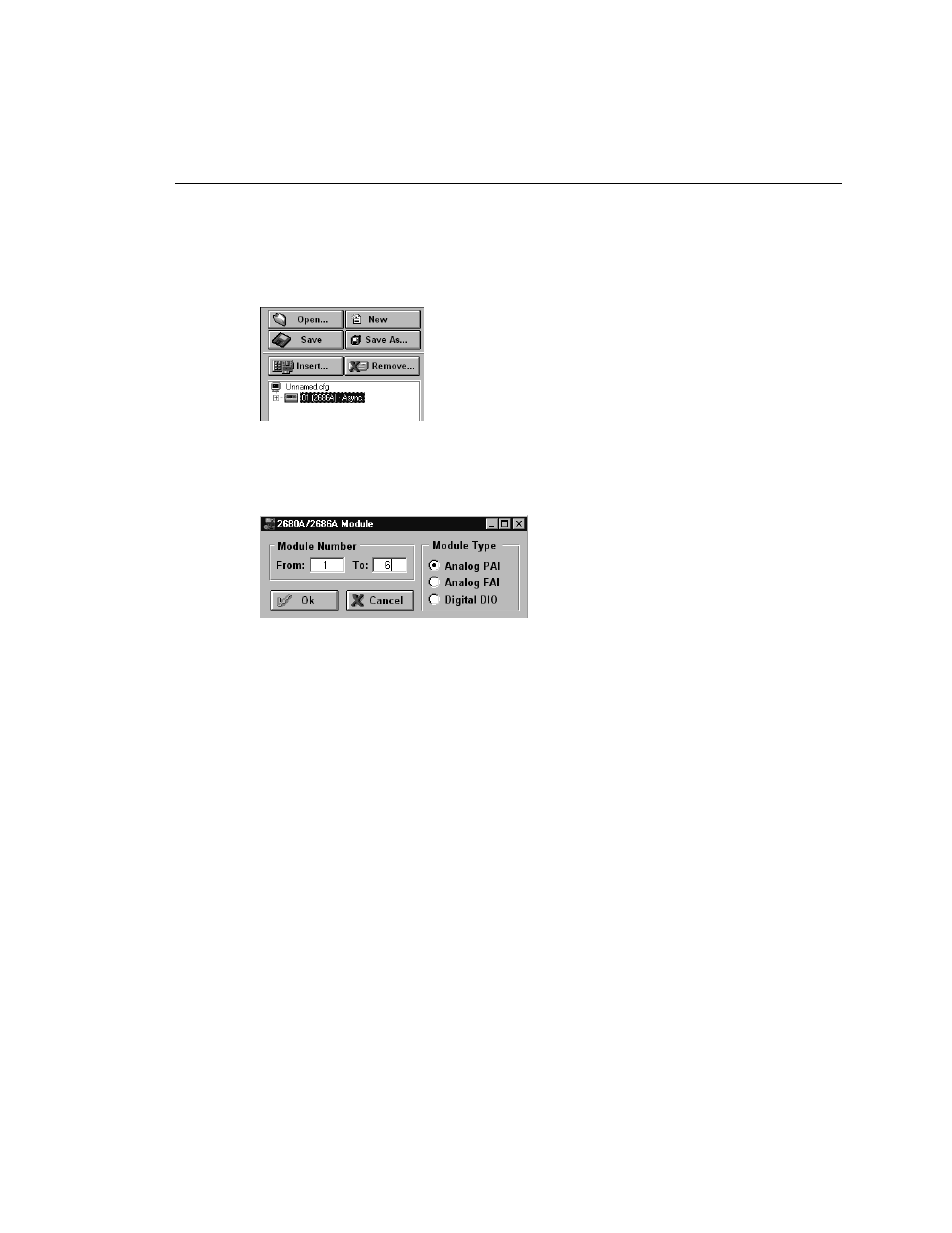

To insert and configure a module
1. Highlight a device in the TreeView panel and click the Insert button.
2. Specify the number and type of modules you want to insert in the Module
dialog box.
The dialog box entries include:
Module Number
You can attach up to 6 modules to the device. You can only have a Digital I/O
in Module Slot 6 and can have only one per device.
Module Type
Valid module types are Analog PAI, Analog FAI, or Digital DIO.
