23
4.5 Connection of Transducer Cables
The transducer cables are supplied with connectors. Plug them into the receptacles in the re-
ceiver unit, referring to the stickers on the cables.

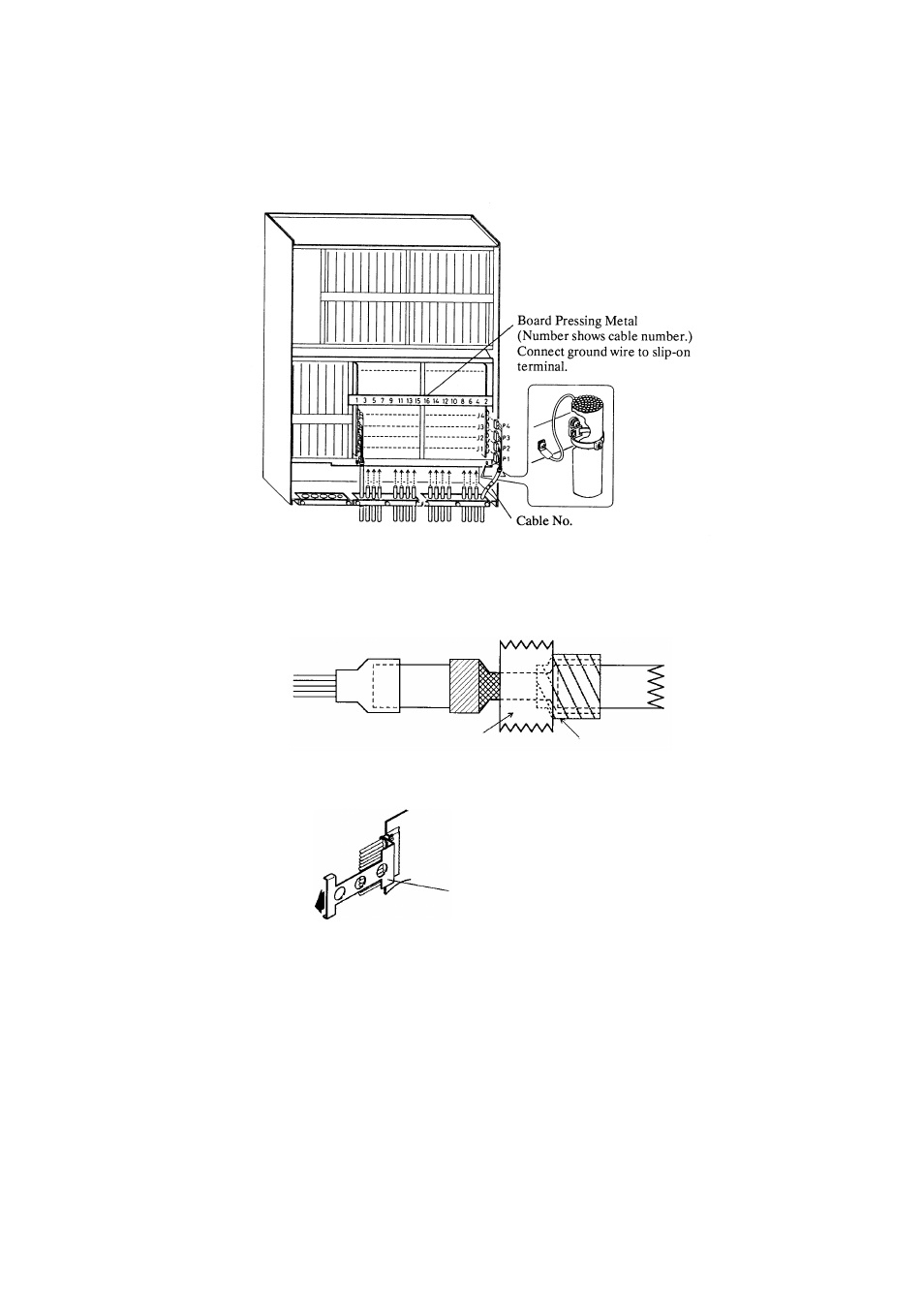

Figure 4-23 Receiver unit, rear view
Lead the cable into the receiver unit and clamp it as follows.
Vinyl tape
Ground the cable by cable clamp.
1. Use the connector puller (supplied) to unplug connectors.
Connector Puller
(Code No. 100-008-460)
2. When one or some of the lead wires are severed near a connector, cut off all lead wires
connected to the connector and solder the "XH connector assembly" (type 10-145 (13P),
supplied as spare parts).
