39

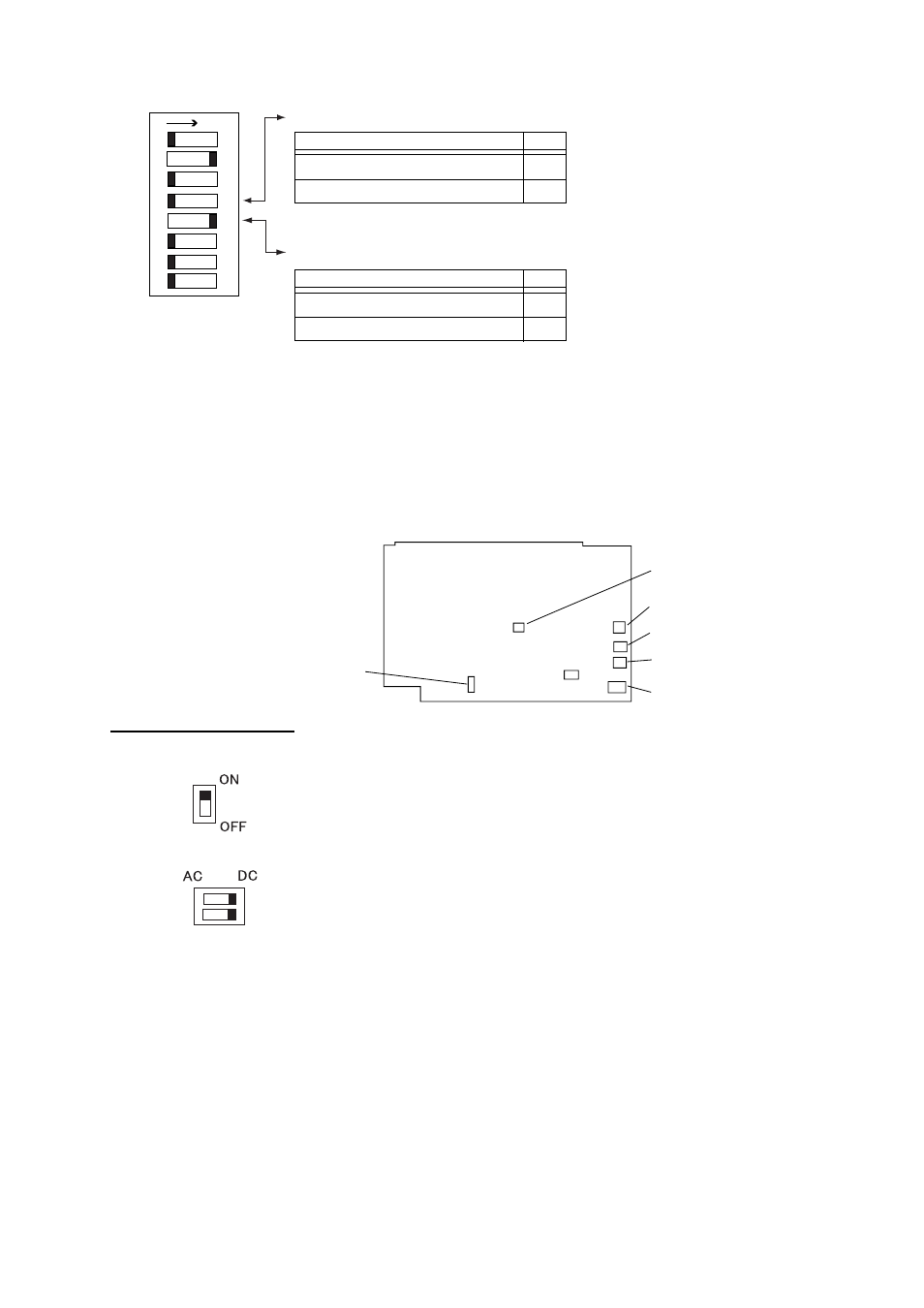

DP-1
ON1234
5678
Talker check (only for NMEA signal)
Talker is checked.
Talker is not checked.
S4
OFF
ON
Depth (Echo sounder, Color Video Sounder, etc.)
Input Device
Echo Sounder *
CIF or NMEA line
S5
OFF
ON
Talker of GP, SD, VD, etc. is checked.
Depth data is selected with S5.
*: Use this position for white line pulse when the depth data is taken from
an echo sounder. However late model FURUNO echo sounders do not
output white line pulse. Normally set to ON.
Interface unit (10P0047) adjustment
If the E/S picture on the screen does not have the desired coloration, perform the
adjustment as follows with the preset potentiometers on the I/O board in the interface unit.
Interface board
(10P0047)
R27
R36
R55
R56
S02
S01
Setting for DIP switch
S01:
The FNZ marker is plotted on the echo sounder picture with this
switch turned on when FNZ marker signal is fed to External Interface.
Factory setting is the “ON” position.
S02: Selects the signal mode (AC or DC) according to the combined echo
sounder connected. Factory setting is the “AC” position.
