27

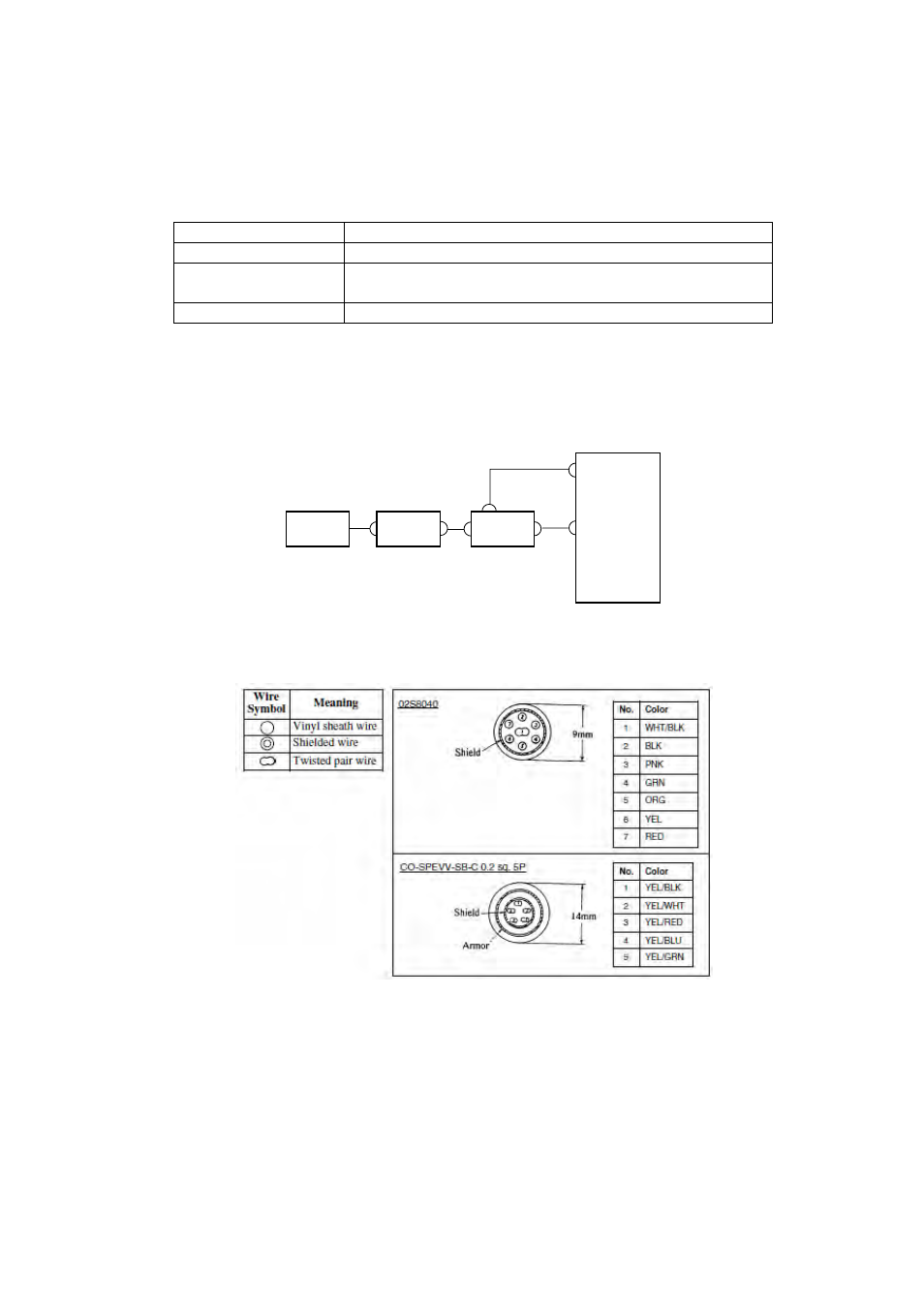

Connections for digital indication of position,
water temperature and depth
The data for these readouts are taken from the equipment shown in the table below and
input to J208 or J204. Input to J208 if the data is NMEA format, or to J204 if the data is CIF
format.
Data Data Source
Position Loran C navigator, GPS navigator
Water Temperature
Temperature Indicator T-2000/TI-20, nav equipment or
color video sounder connected to temperature sensor
Depth Color video sounder
Note: When a sounder which has digital depth data output is not available, the white line
signal of a paper recording echo sounder can be used to provide digital depth
readout. Connect the echo sounder as shown below or as shown in connection 2 or
3 on previous pages and operate the echo sounder front panel controls so that the
white line is effected on the seabed contour.
J203 (E/S) CS-170
J202 (SONDE)
INTERFACE
UNIT
(CS-120A)
J701
J705 TB-1
Trigger (KP)
white line sig.
E/S VI-1100A
Wiring
Connect referring to the Interconnection Diagram at the back of this manual.
