31
Note:
To output KP to other sonar or echo sounder, wire units as follows.

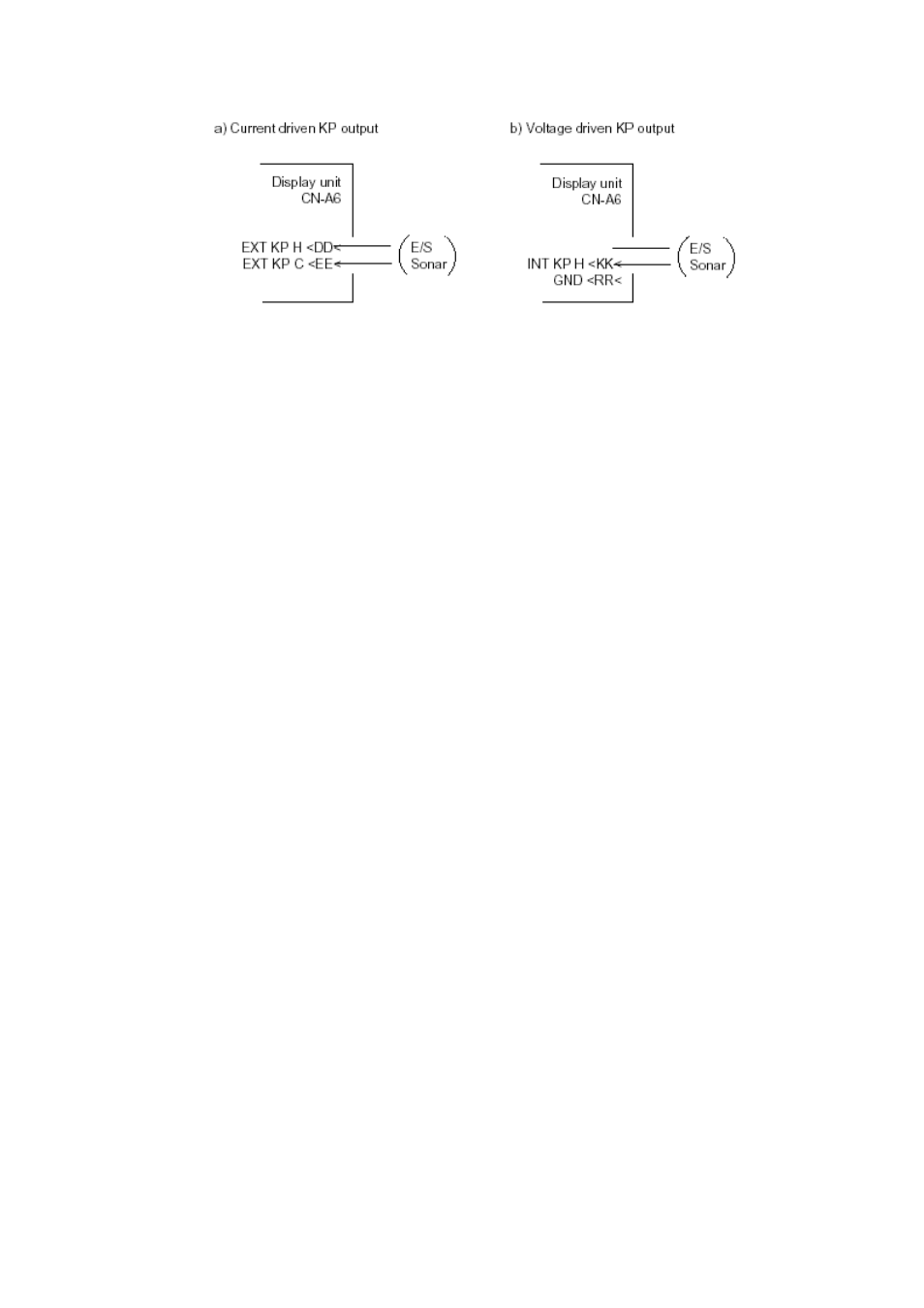

Figure 4-34 Connections for outputting KP to other sonar or echo sounder
Menu setting
Set polarity of the KP on the INIT SET/TEST menu. Set transmission cycle to 0 on data
setting window. Refer to the operator’s manual for operation on the menu.
