19

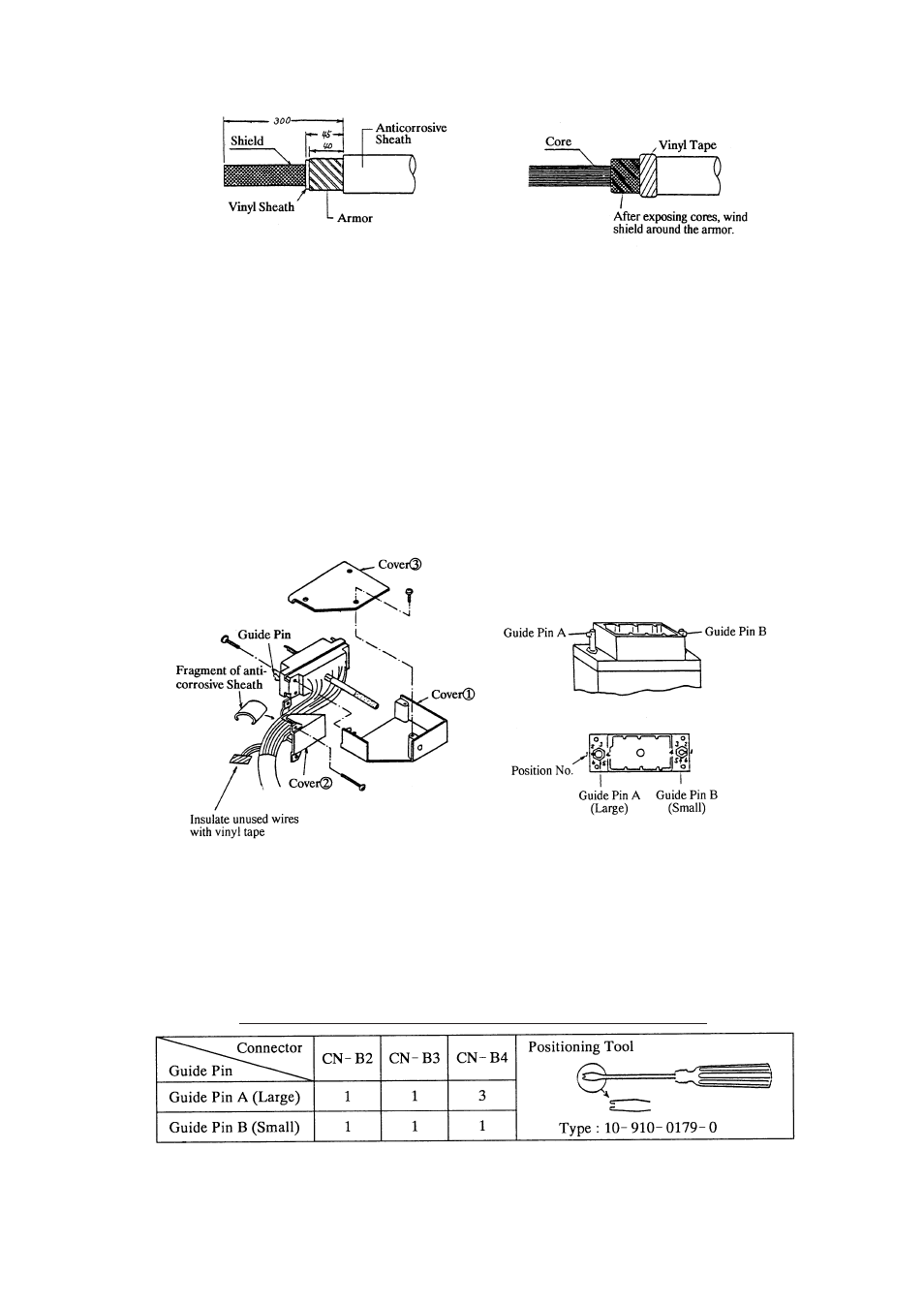

Fabricating cable 54-038-000-601/SC (CN-B2, CN-B3, CN-B4)
Figure 4-14 Fabricating cable 54-038-000-601/SC
Assembling 38P connector
1. Bundle the unused wires outside the connector case.
2. Fix the cover 1, taking heed of the cable outgoing direction.
3. Dress the wires and fix the cover 2 and 3. Use a fragment of cable sheath to secure the
wires at the connector clamp.
4. Shorten unused wires appropriately and treat their ends with vinyl tape to prevent short
circuit.
Figure 4-15 Assembling 38P connector
Positioning guide pins
Guide pins of the connector identify the mating receptacle. Position them as shown below.
Table 4-3 guide pins and connectors CN-B2, CN-B3, CN-B4
