4.2 How to Use the Crimping Tool, Pin Extractor
A special crimping tool is necessary for connection of wires to the contact pins of the 38P
connector. The pin extractor removes the contact pin from the connector body. This paragraph
describes how to crimp and extract the contact pin.
Crimping Tool
06-1001-016 Contact Pin
60-8017-0313-00-039
Pin Extractor
06-1877-04

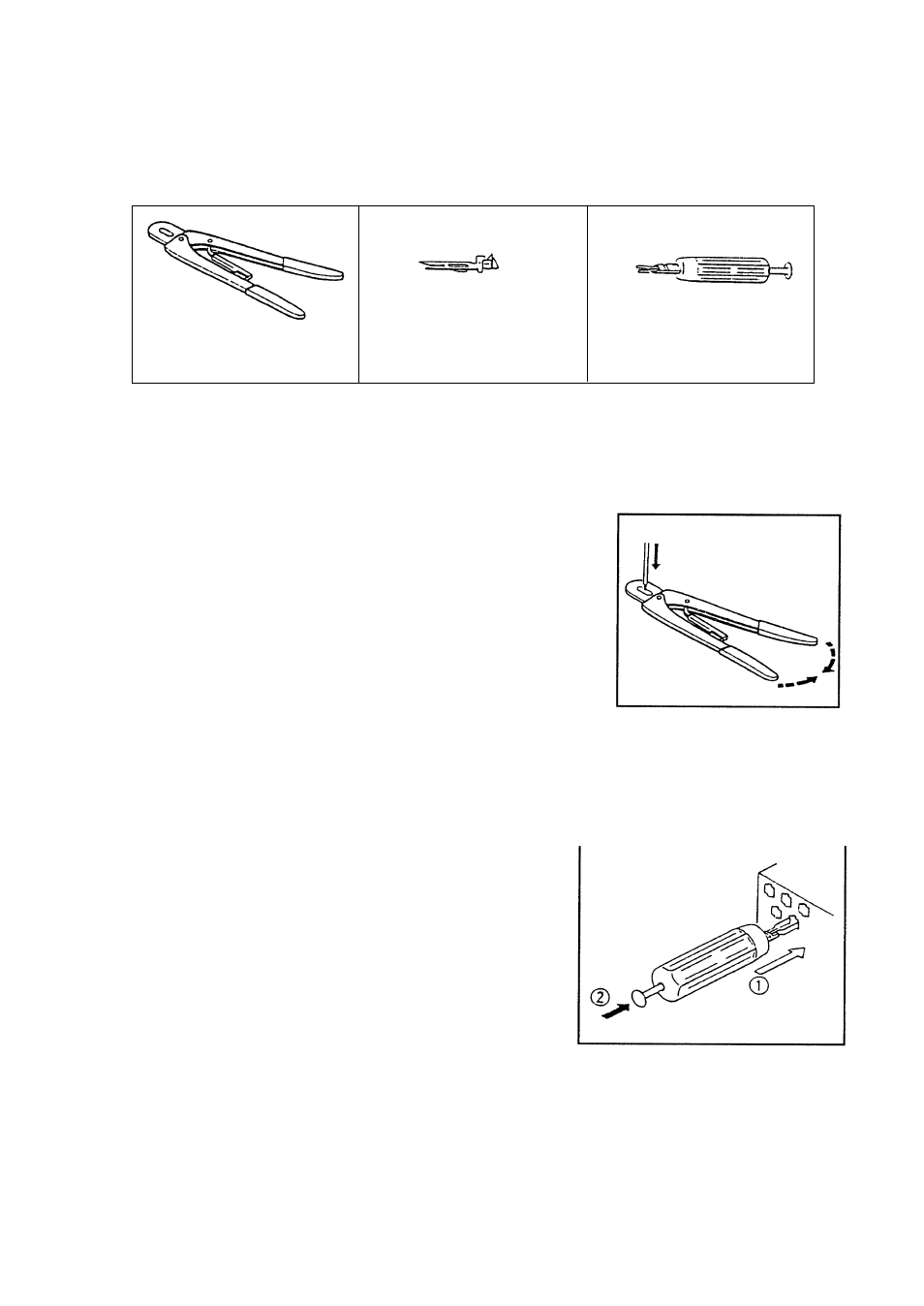

Figure 4-2a Crimping tool, contact pin, pin extractor
How to use the crimping tool
How to use the pin extractor
If a contact pin is inserted into an incorrect hole on the con-
nector body, remove it with the pin extractor.
1. Push the pin extractor into the pin hole from the side
opposite to the pin inserting side.
2. Push in the head of the pin extractor. The retaining spring
comes free and the contact pin can be removed.
Figure 4-2c
Figure 4-2b
