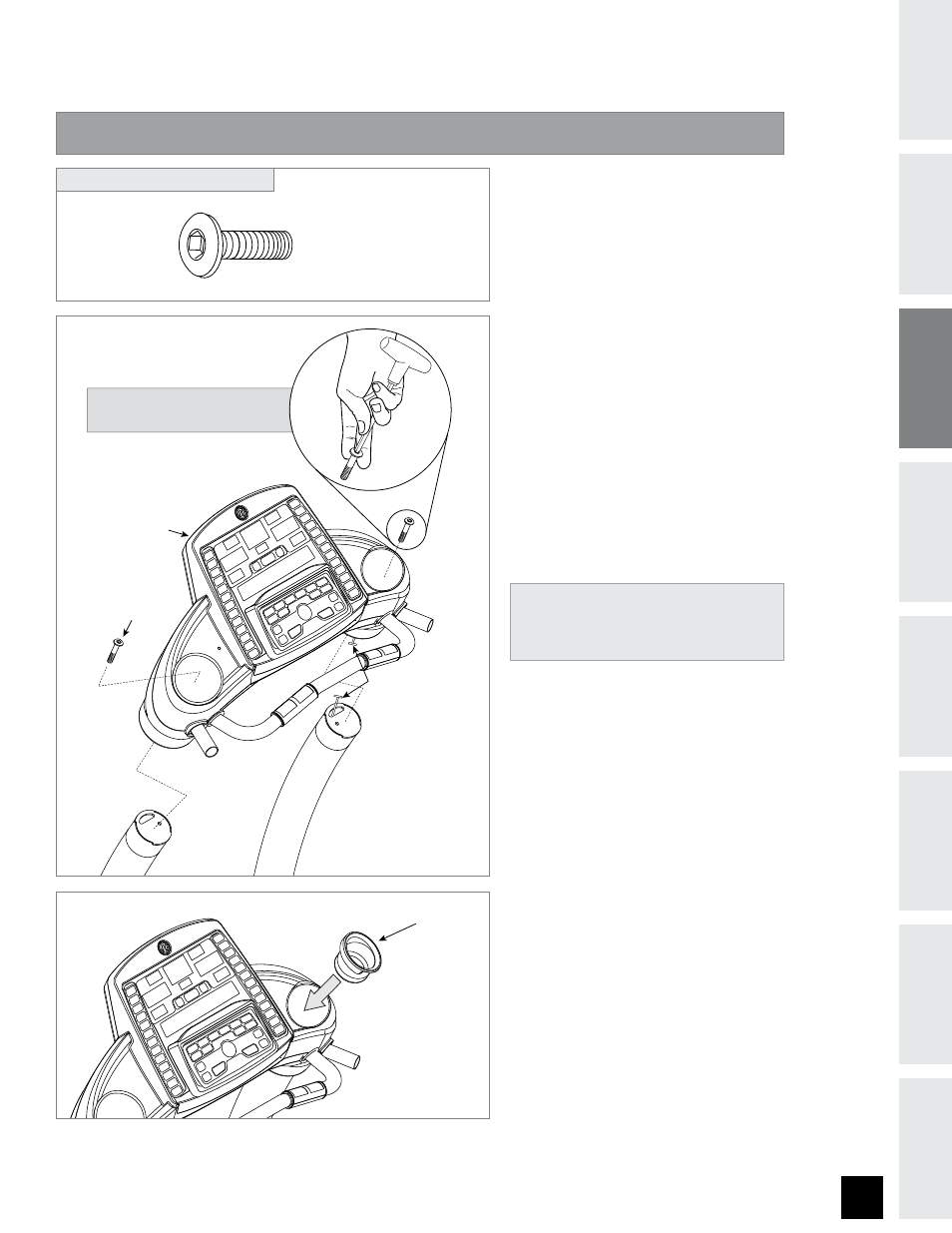

A Open BLUE HARDWARE BAG.
B Connect the CONSOLE WIRES
from the CONSOLE to those from
the top of the MAST.
C Attach CONSOLE to the
CONSOLE MASTS using
1 BOLT (D).
D Repeat on other side.
E Tighten all console bolts.
F Snap each of the CUP HOLDERS
firmly into the CONSOLE.
ASSEMBLY STEP 2
BOLT (D)
20 mm
Qty: 2
BLUE HARDWARE BAG CONTENTS :
BOLT (D)
CONSOLE
SUGGESTED METHOD FOR STARTING BOLT
CONSOLE WIRES
CUP HOLDER
* NOTE: Be careful not to pinch any
wires while assembling the console.
