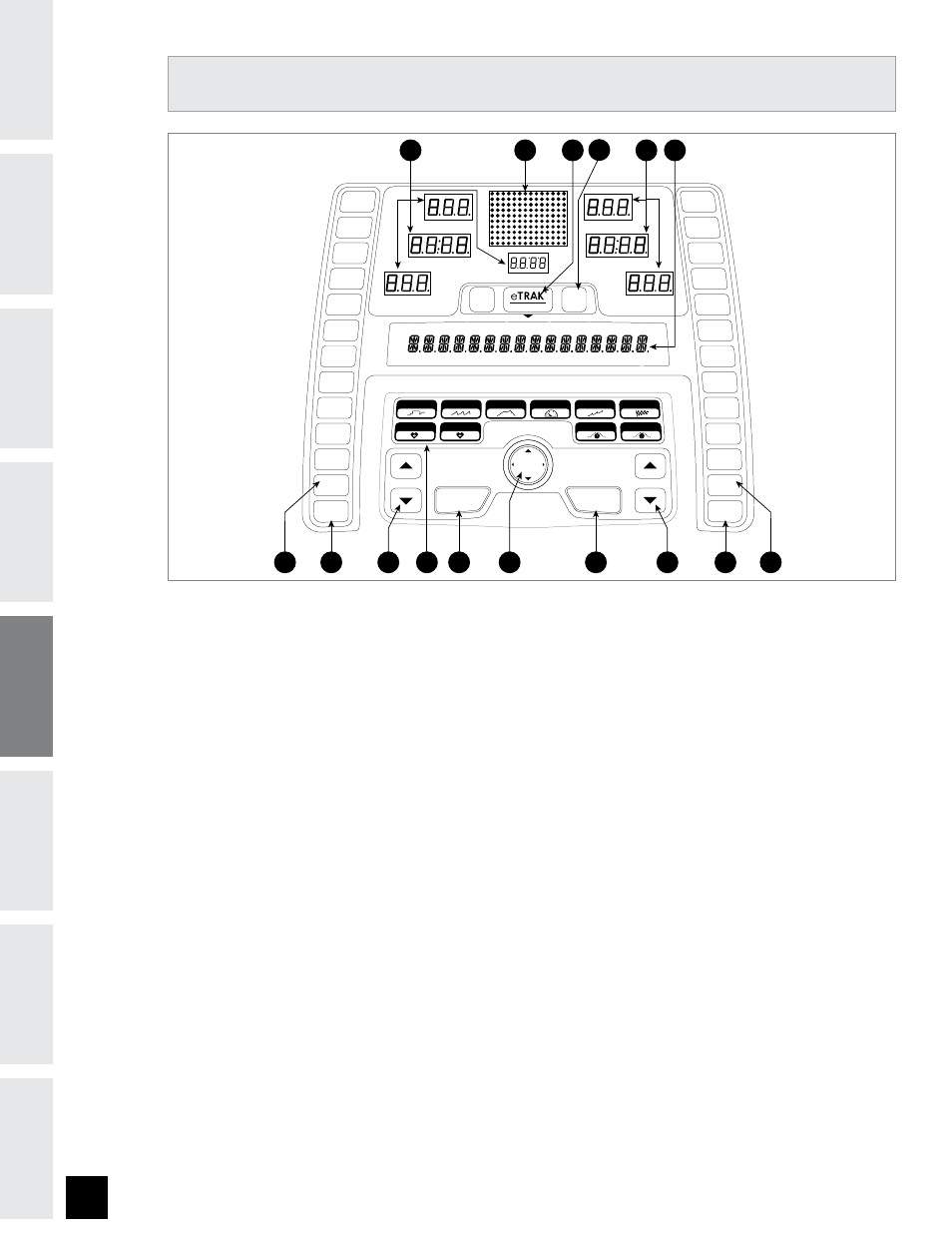

Note: There is a thin protective sheet of clear plastic on the overlay of the console and should be removed.
A) eTRAK™ BUTTON: Used to scroll through eTRAK™ display modes.
B) LED DISPLAY WINDOWS: Displays Heart Rate, Calories, Time, Distance, Incline, Speed, Pace, Clock and
Date.
C) LARGE LED WINDOW: Displays program profiles.
D) ALPHA-NUMERIC WINDOW: Indicates exercise feedback and help text.
E) START: Press to begin exercising, starts your program, or resume exercising after pause.
F) STOP: Press to pause/end your workout. Hold for 3 seconds to reset the treadmill.
G) USER KEYS: Press to select user.
H) QUICK PROGRAM KEYS: Press to select program. Press ENTER to confirm selection.
I) PROGRAMMING BUTTON: Used to select Program, Level and Time, and other options. Press to change display
feedback during workout.
j) INCLINE ARROW KEYS: Used to adjust incline in small increments (0.5% increments).
K) SPEED ARROW KEYS: Used to adjust speed in small increments (0.1 mph increments).
L) QUICK ADjUST INCLINE KEYS: Used to reach desired incline quickly. Press before INCLINE CONFIRMATION
KEY.
M) INCLINE CONFIRMATION KEY: Press to confirm quick adjust incline selection, necessary only when INCREASING
incline.
N) QUICK ADjUST SPEED KEYS: Used to reach desired speed quickly. Press before SPEED CONFIRMATION KEY.
O) SPEED CONFIRMATION KEY: Press to confirm quick adjust speed selection, necessary only when INCREASING
speed.
TREADMILL OPERATION
(T6 model)
