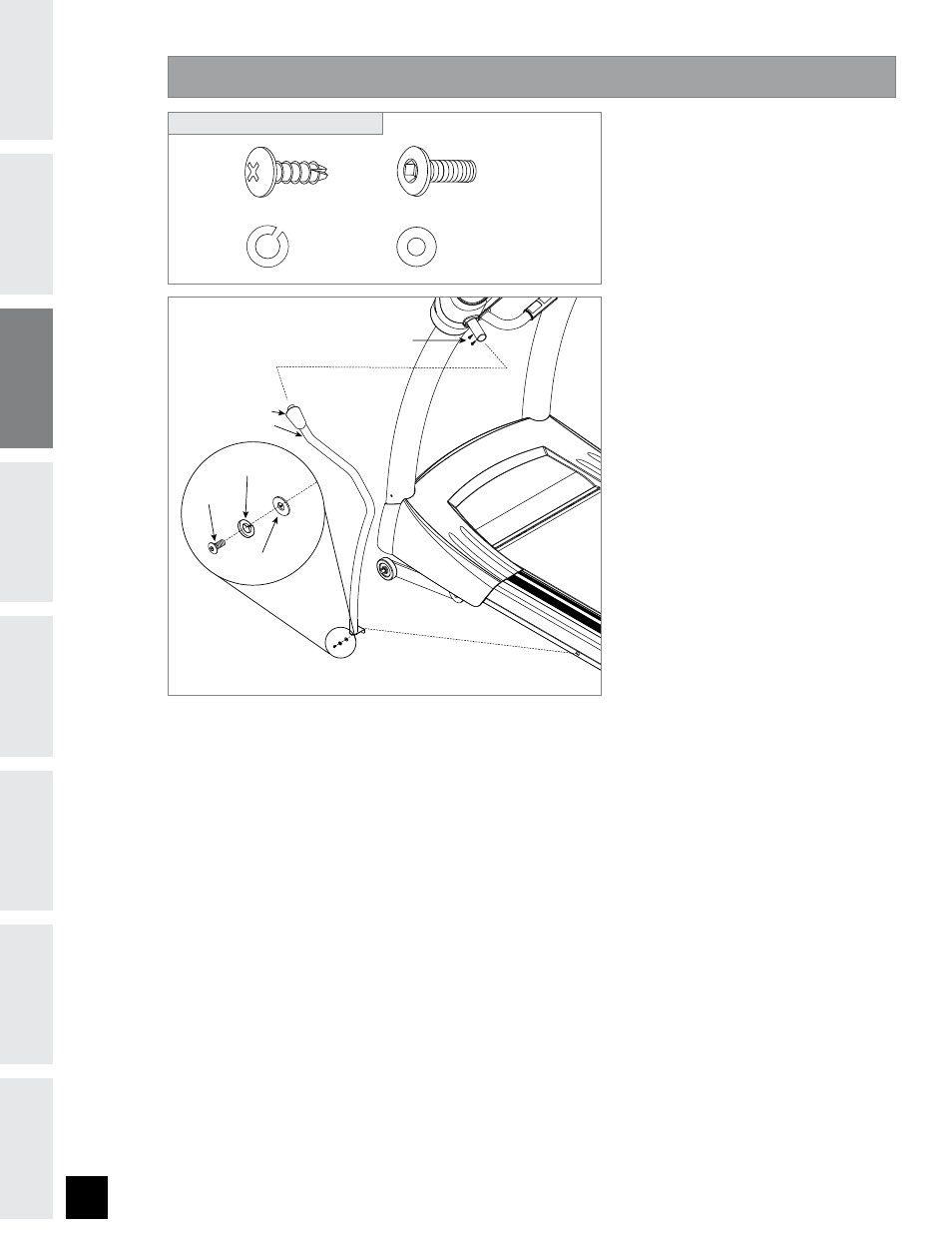

A Open WHITE HARDWARE BAG.
B Slide HAND RAIL SLEEVE over
the top of the hand rail.
C Attach top of HAND RAIL to
the console extension using 2
SCREWS (G).
D Attach bottom of HAND RAIL to
the base frame using 1 BOLT
(H), 1 SPRING WASHER (I) and
1 WASHER (j).
E Slide HAND RAIL SLEEVE firmly
against console.
F Repeat on other side.
ASSEMBLY STEP
SCREW (G)
15 mm
Qty: 4
BOLT (H)
30 mm
Qty: 2
WASHER (J)
8 mm DIAMETER
Qty: 2
SPRING WASHER (I)
8 mm DIAMETER
Qty: 2
WHITE HARDWARE BAG CONTENTS :
HAND RAIL
HAND RAIL SLEEVE
WASHER (J)
BOLT (H)
SPRING WASHER (I)
SCREW (G)
