NOTE: During each assembly step, ensure that ALL nuts and bolts are in place and partially threaded in before
completely tightening any ONE bolt. NOTE: A light application of grease may aid in the installation of hardware.
Any grease, such as lithium bike grease is recommended.
PRE-ASSEMBLY

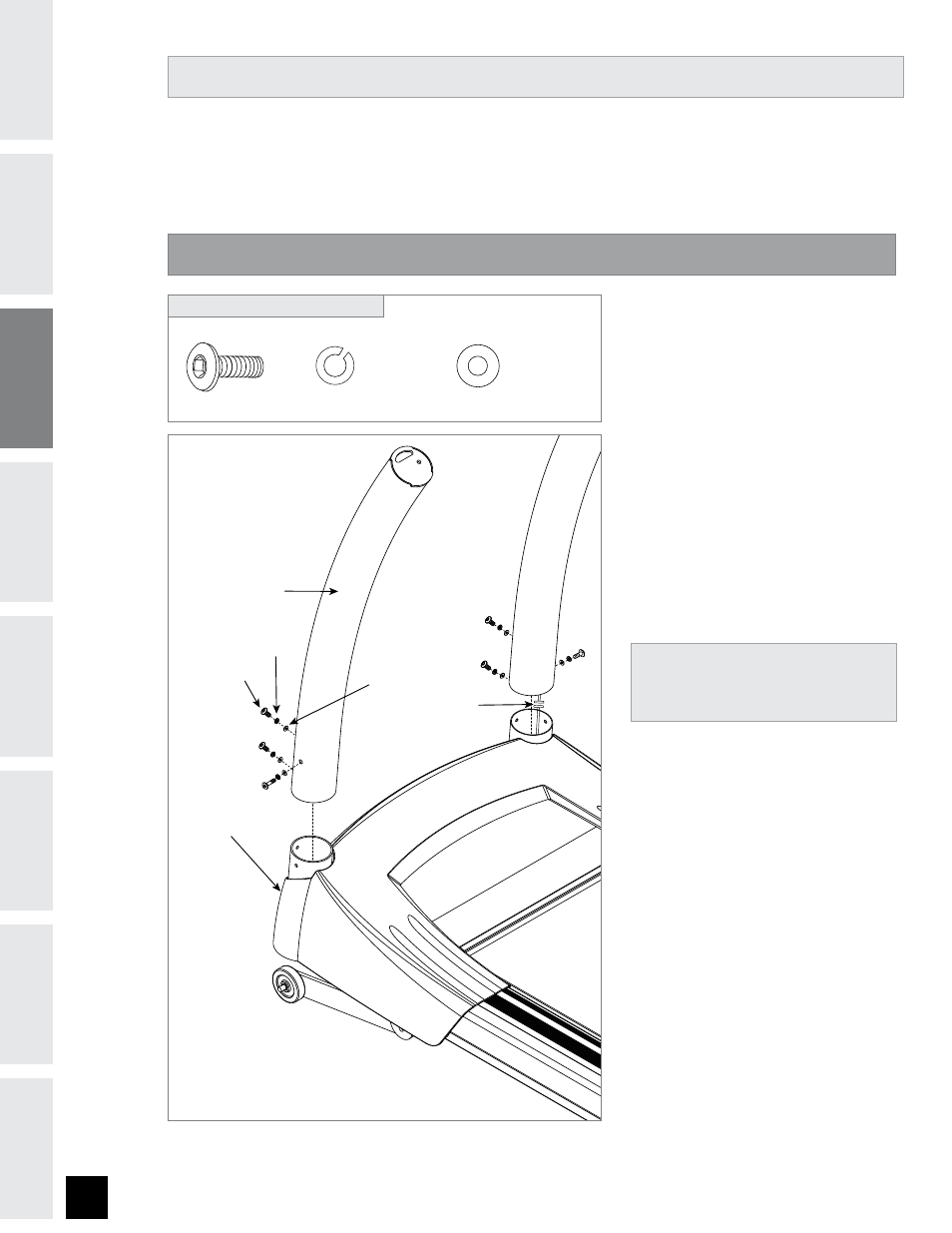

ASSEMBLY STEP 1
BOLT (A)
15 mm
Qty: 6
ARC WASHER (C)
8 mm Diameter
Qty: 6
SPRING WASHER (B)
8 mm DIAMETER
Qty: 6
PINK HARDWARE BAG CONTENTS :
BOLT (A)
SPRING WASHER (B)
WASHER (C)
CONSOLE MAST
BASE FRAME
CONSOLE WIRES
A Open PINK HARDWARE BAG.
B Connect the CONSOLE WIRES
from the BASE FRAME to the
bottom of the CONSOLE MAST.
C Attach LEFT CONSOLE MAST
using 3 BOLTS (A), 3 SPRING
WASHERS (B) and 3 ARC
WASHERS (C).
D Repeat on other side.
* NOTE: Be careful not to pinch any
wires while assembling the masts.
