HP TC4400 User Manual
Page 137
5–54
Maintenance and Service Guide
Removal and Replacement Procedures
2. Release the ZIF connector to which the infrared board cable
is connected and disconnect the cable 1 from the system
board.
3. Remove the Torx8 T8M2.0×5.0 screw 2 that secures the
infrared board to the system board.
4. Remove the infrared board 3.

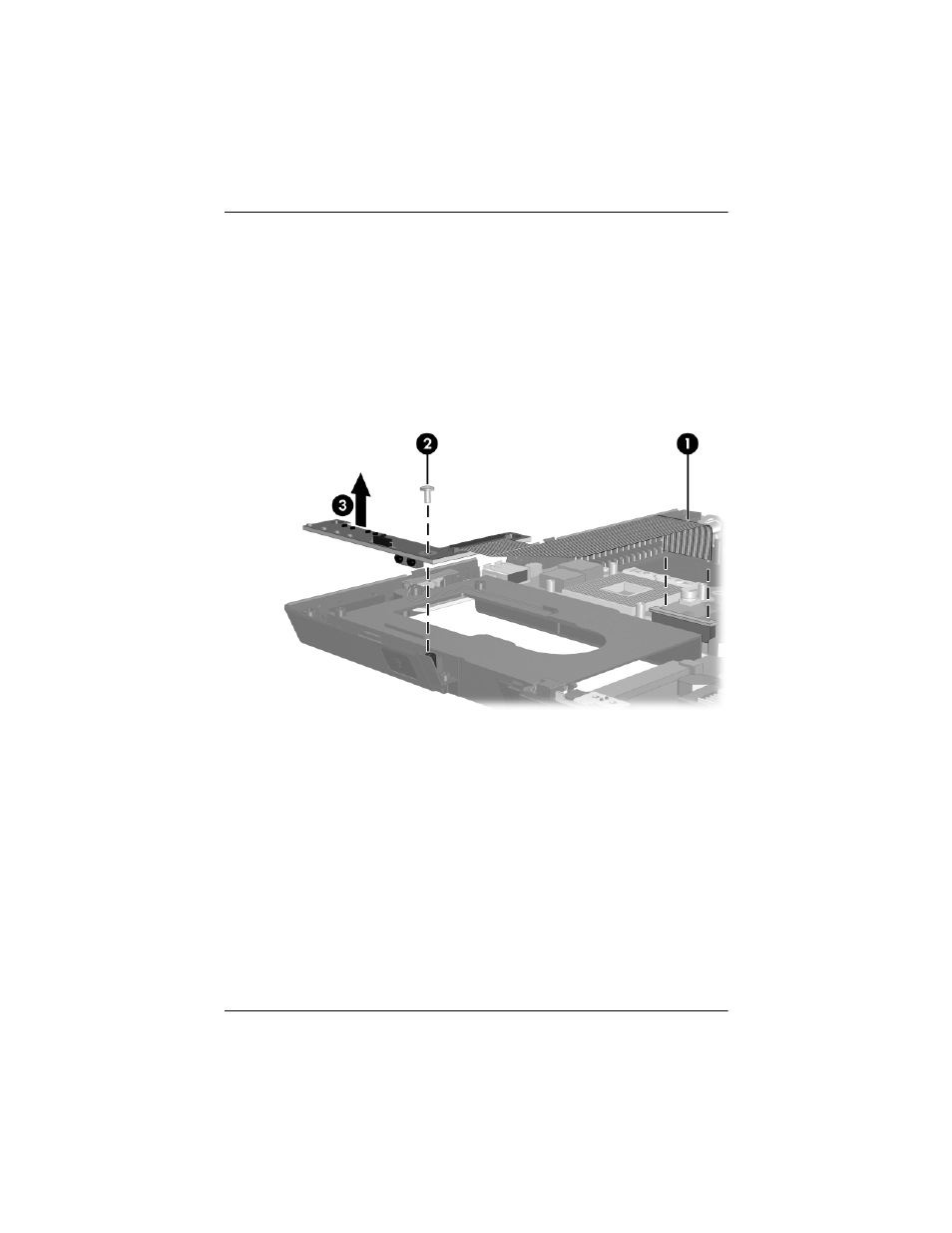

Removing the Infrared Board
Reverse the above procedure to install the infrared board.
