Reference Materials

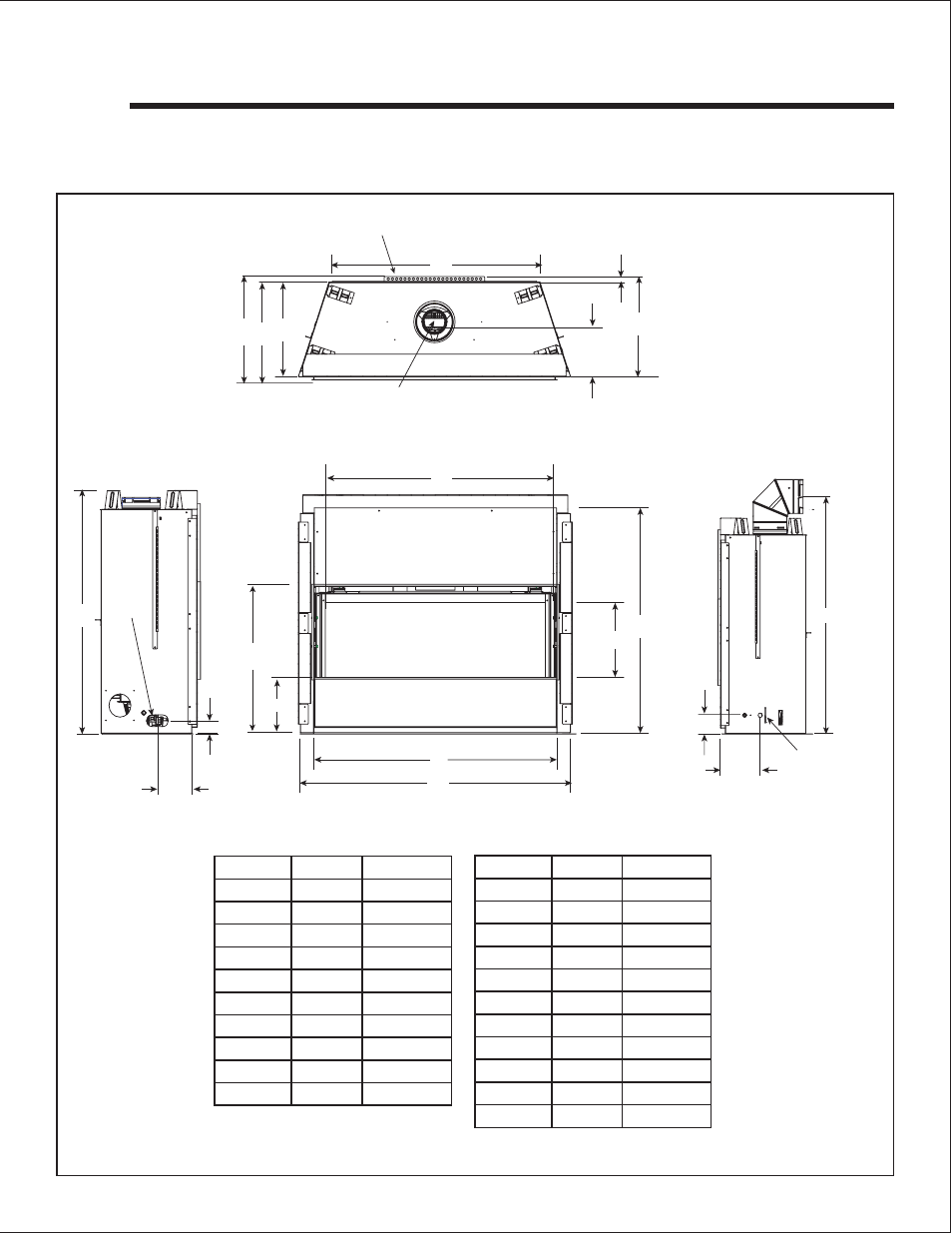

A. Appliance Dimension Diagram
Dimensions are actual appliance dimensions. Use for reference only. For framing dimensions and clearances refer to Section 3.
A
B G
Q
C
L
D
E
H O
F
P
N Ø
I
J
K
M S R
ELECTRICAL
ACCESS
GAS LINE
ACCESS
LEFT VIEW FRONT VIEW RIGHT VIEW
NON-COMBUSTIBLE ZONE
(PROVIDED WITH UNIT)
1 INCH STANDOFF
T
U
Figure 16.1 Appliance Dimensions
Location Inches Millimeters
K 1 25
L 37-3/4 959
M 15-3/4 400
N 6-5/8 168
O 41-3/4 1060
P 2-3/16 55
Q 6 152
R 17-1/4 438
S 18-1/4 464
T 25-7/8 657
U 9-3/4 248
Location Inches Millimeters
A 48 1218
B 43 1092
C 39-1/16 993
D 13-1/4 337
E 39-5/8 1006
F 3-9/16 90
G 6-7/8 174
H 47-1/16 1195
I 9-5/16 237
J 16-3/4 425
О
